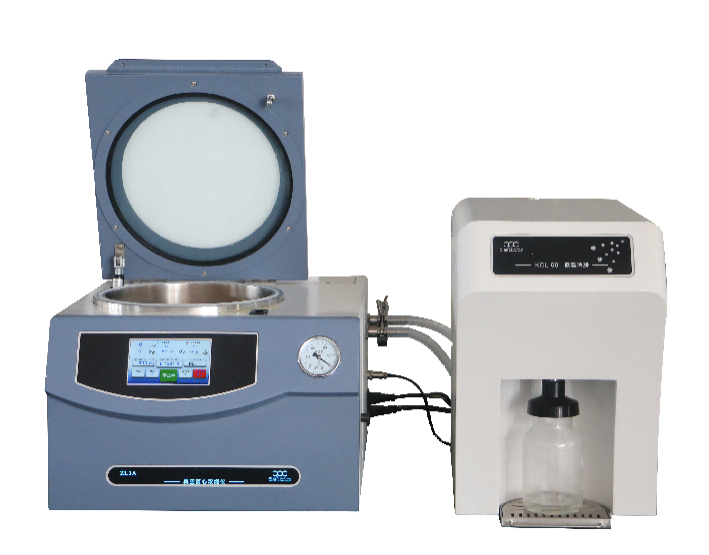

ZL3A integrated vacuum centrifugal concentrator integrates the process of centrifugation, vacuum pumping and heating, effectively evaporates solvent, and efficiently recovers biological or analytical samples. It is widely used in life science, chemistry, pharmacy and other fields.
Product Features：
◎ Touch Screen display, intelligent microprocessor control and simple and direct operation interface are adopted.
◎ It is equipped with a special solution solvent collection bottle (with a capacity of 500ml), which is convenient for removal and cleaning.
◎ The drying chamber is made of 304 stainless steel, and the inside of the drying chamber is coated with anti-corrosion treatment.
◎ Standard configuration: cold trap+corrosion-resistant vacuum diaphragm pump, which can complete the sample concentration process with one button, compact shape, and save laboratory space.
◎ Various turnheads are equipped with optional and transparent cover plates to facilitate observation of progress.
◎ Set concentration time: 0-99h59min, used in conjunction with cold trap, rotational speed range: 0-2000rpm.
◎ It can be used with a centrifugal imager to observe the condition of the concentrator during operation.
◎ AC frequency conversion maintenance-free induction motor, electromagnetic drive centrifugal system, low noise, maintenance-free.
Technical Parameters：
Model | ZL3A |
Max Capacity | 6×50ml | Timer | 0-99h59min59s |
Max Speed | 2000rpm | Overall power | 420W |
Max RCF | 505×g | Voltage | AC 220±22V 50/60Hz 10A or custom |
temperature Range | Room Temperature～80℃ | Net Weight | 45Kg |
Speed Accuracy | ±10r/min | Overall dimension（mm） | 430×545×335（mm） |
Model | KCL-50（Low Temperature Cold Trap） |
Temperature range | 0 ~ -50℃ | Capacity of liquid collecting bottle | 500ml（ampulla） |
Net Weight | 35kg | Size（mm） | 285×455×440（mm） |
Power | 235W | Voltage | AC 220±22V 50/60Hz 10A or custom made |
Rotor Parameters：
Model | Rotor Type | Rotor Number | Rotor Capacity | Max Speed （r/min) | Max RCF(×g) |
ZL3A | Angle rotor | 1 | 62×1.5ml | 2000rpm | 505×g |
2 | 135×0.2ml | 1800rpm | 273×g |
3 | 108×0.5ml | 1800rpm | 405×g |
4 | 12×10ml | 1800rpm | 365×g |
5 | 12×15ml | 1800rpm | 370×g |
6 | 6×50ml | 1500rpm | 305×g |
* All products can be customized, designed and produced according to customer requirements.
