Product Features：
◆ Up to 10 level deceleration and acceleration control with 99 programs groups.
◆ With over speed, imbalance, door cover protection, over current, rotor fault etc protection .
◆ Microcomputer control with 5inches HD LCD touch screen,driven by AC frequency conversion motor.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment and low noise.
◆ Food grade silicone integrated seal ring, high temperature resistance and corrosion resistance.
◆ Imported energy-efficient ECO friendly refrigeration system.
c traction structure design with ode, which can maintain below - 4 ℃ at the highest speed.
Technical Parameter：

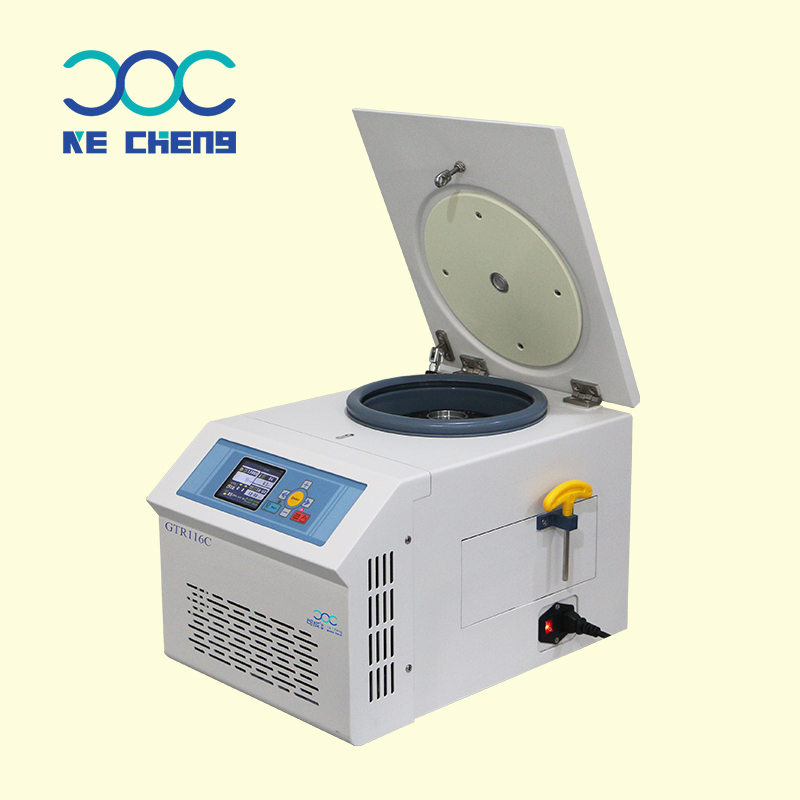

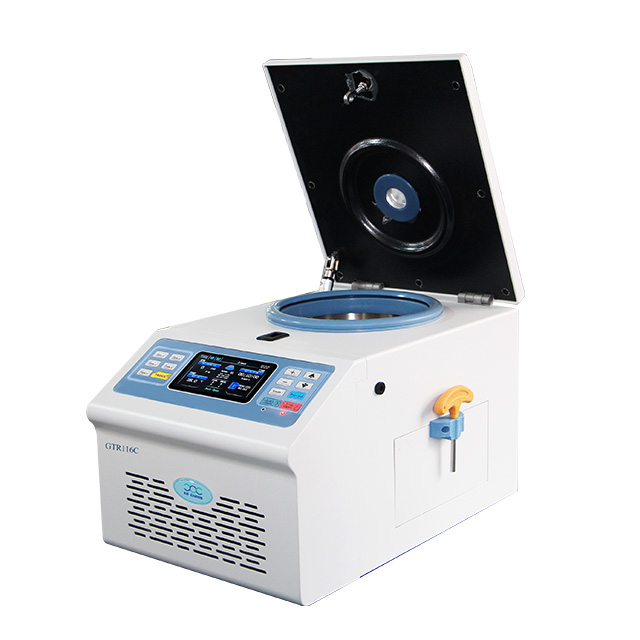

Model | GTR116C |
Max Speed | 16500rpm | Voltage | AC 220±22V 50Hz 10A or custom |
Max RCF | 21615×g | Power | 550W |
Max Capacity | 12×5ml | Noise Level | ≤ 60dB（A） |
Timer | 1s～99h59min59s | Size | 315×475×310(mm) |
Revolutions/min | ±10r/min | Net Weight | 36kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | No |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 16×1.5/2.0ml | 16500rpm | 20880×g |
2 | 2 | 12×5ml | 16000rpm | 17344×g |
3 | 3 | 24×1.5/2.0ml | 15000rpm | 21615×g |
4 | 4 | 4×8×0.2ml PCR Row | 15000rpm | 14866×g |
5 | 5 | 8×8×0.2ml PCR Row | 14000rpm | 15032×g |
6 | 6 | Capillary rotor 24 hole | 12000rpm | 13845×g |
* All products can be customized, designed and produced according to customer requirements.
