Product Features：
Intelligent control system
◆ Equipped with five groups of programs and can store 99 groups of program.
◆ Automatic electronic door lock.
◆ One key short-time centrifuge button.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gears acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
Technical Parameter：

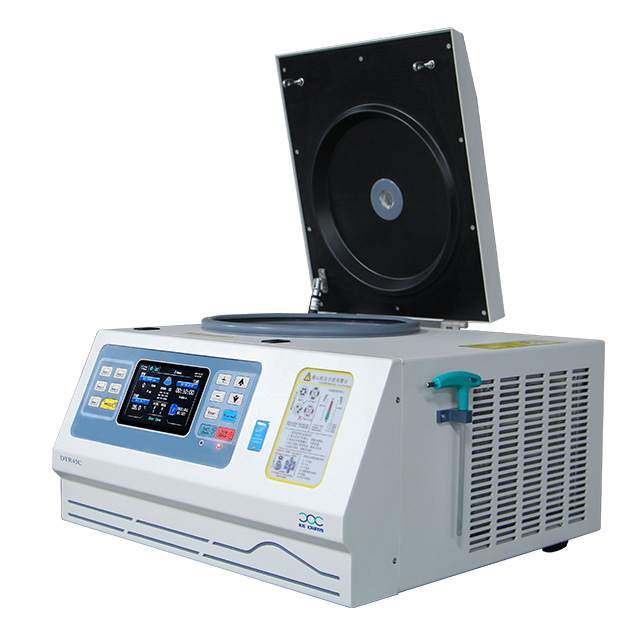

Model | DTR45C |
Max Speed | 5500rpm | Voltage | AC 220±22V 50Hz 15A |
Max RCF | 5071×g | Power | 1500W |
Max Capacity | 4×750ml | Noise Level | ≤ 60dB（A） |
Timer | 1s～99h59min | Size | 730×660×400 (mm) |
Revolutions/min | ±10r/min | Net Weight | 120kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor（W) | 1 | 1 | 40×15ml | 5500rpm | 5071×g |
Angle rotor（W) | 2 | 2 | 6×50ml | 5500rpm | 3645×g |
Swing-out rotor | 3 | 3 | Auto uncap 120×2~7ml（Blood collection tube） | 4000rpm | 3309×g |
4 | 4×750ml(Round bucket) | 4000rpm | 3309×g |
5 | 4×750ml(Round bucket)/ （with biosafety lid） | 4000rpm | 3309×g |
6 | 4×750ml Square bucket(used with adapters) | 4000rpm | 3309×g |
Swing-out rotor | 4 | 7 | Auto uncap 104×2-7ml(blood collection tube) | 4000rpm | 3184×g |
8 | 4×500ml(Round bucket) | 4000rpm | 3184×g |
9 | 4×500ml(Round bucket) （with biosafetey lid） | 4000rpm | 3184×g |
10 | 4×500ml Square bucket (used with adapters) | 4000rpm | 3184×g |
11 | 4×500ml conical bottom | 4000rpm | 3184×g |
Swing-out rotor | 5 | 12 | Auto uncap 64× 2-7ml(blood collection tube) | 4000rpm | 3040×g |
13 | 4×250ml(Round bucket) | 4000rpm | 3040×g |
14 | 4×250ml(Round bucket) （with biosafety lid） | 4000rpm | 3040×g |
15 | 4×250ml(Square cup) include： Adapter 4×4×50ml(conical bottom) Adapter 4×10×15ml(conical bottom) | 4000rpm | 3040×g |
16 | 4×250ml( Conical bottom) | 4000rpm | 3040×g |
17 | 6×250ml(Round bucket) | 4000rpm | 3040×g |
Swing-out rotor | 6 | 18 | Swing-out rotor body 4×750ml shall be used with bucket/basket (Three-in-one rotor combination) |
bucket | 6 | 19 | 750ml round cup/bucket (with biosafety lid )include： Adapter 4×14×15ml(conical bottom) Adapter 4×7×50ml(conical bottom) | 4000rpm | 3425×g |
basket | 20 | Micro-plate 4×2×96 hole | 4000rpm | 3425×g |
bucket | 21 | Auto uncap 120× 2-7ml(blood collection tube) | 4000rpm | 3425×g |
22 | 500ml blood bag (include blood bag adapter) | 4000rpm | 3425×g |
Swing-out rotor | 7 | 23 | Micro-plate 2×2×96 hole | 4000rpm | 2057×g |
* All products can be customized, designed and produced according to customer requirements.
