Product Features：
Intelligent control system
◆ Equipped with five groups of programs.
◆ Program group shortcut key, large storage space, can store 99 program groups, convenient to call at any time.
◆ Automatic electronic door lock.
◆ One key short-time centrifuge button.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gear acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
Technical Parameter：

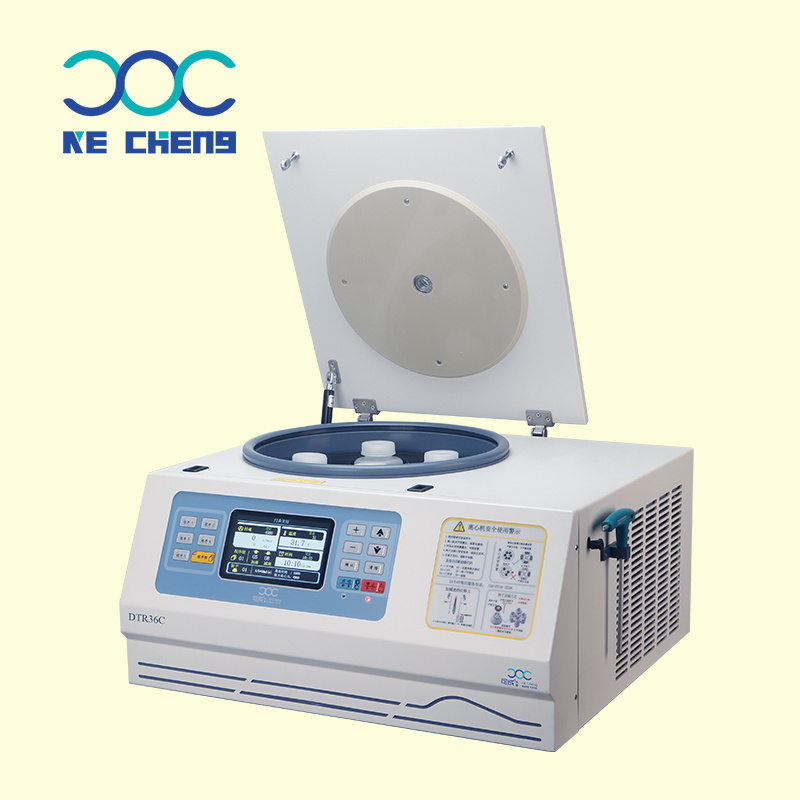

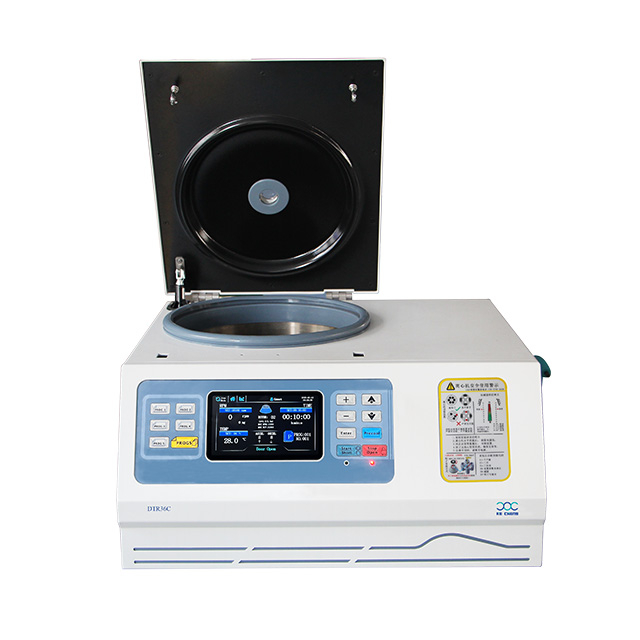

Model | DTR36C |
Max Speed | 6500rpm | Voltage | AC 220±22V 50Hz 10A |
Max RCF | 5091×g | Power | 1000W |
Max Capacity | 4×250ml | Noise Level | ≤ 60dB（A） |
Timer | 1s～99h59min59s | Size | 680×600×395 (mm) |
Revolutions/min | ±10r/min | Net Weight | 108kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor（W) | 1 | 1 | 6×50ml | 6500rpm | 5091×g |
2 | 2 | 40×15ml | 5000rpm | 4191×g |
Swing-out rotor body | 3 | 3 | It shall be used together with pipe rack |
Pipe rack | 3 | 4 | 4×50ml | 4200rpm | 3254×g |
5 | 4×100ml |
6 | 8×50ml | 4200rpm | 3254×g |
7 | 8×100ml |
8 | 16×10/15ml Optional |
9 | 24×10/15ml Optional |
10 | 32×10/15ml Optional |
11 | 48×2~7ml（Blood collection tube） |
12 | 64×5ml（Blood collection tube） |
Swing-out rotor | 4 | 13 | 4×250ml(Round cup) | 4200rpm | 3352×g |
14 | 4×250ml(Round cup) （with biosafety lid） | 4200rpm | 3352×g |
15 | Auto uncap 64×2~7ml(Blood collection tube) | 4200rpm | 3352×g |
Swing-out rotor | 4 | 16 | 4×250ml(Square cup) include： Adapter 4×4×50ml(conical bottom) Adapter 4×10×15ml(conical bottom) | 4200rpm | 3352×g |
Adapters | 4 | a | 4×1×250ml Flat bottom | 4200rpm | 3352×g |
b | 4×2×100ml Round bottom | 4200rpm | 3352×g |
c | 4×10×10/15ml Conical bottom | 4200rpm | 3352×g |
d | 4×12×10ml High speed Round bottom | 4200rpm | 3352×g |
e | 4×12×5ml High speed round bottom buckle cap tube | 4200rpm | 3352×g |
f | 4×16×1.5/2ml | 4200rpm | 3352×g |
g | 4×12×10ml Blood collection tube | 4200rpm | 3352×g |
h | 4×18×2-7ml Blood collection tube | 4200rpm | 3352×g |
Swing-out rotor | 5 | 17 | Micro-plate 2×2×96 hole | 4200rpm | 2267×g |
* All products can be customized, designed and produced according to customer requirements.
