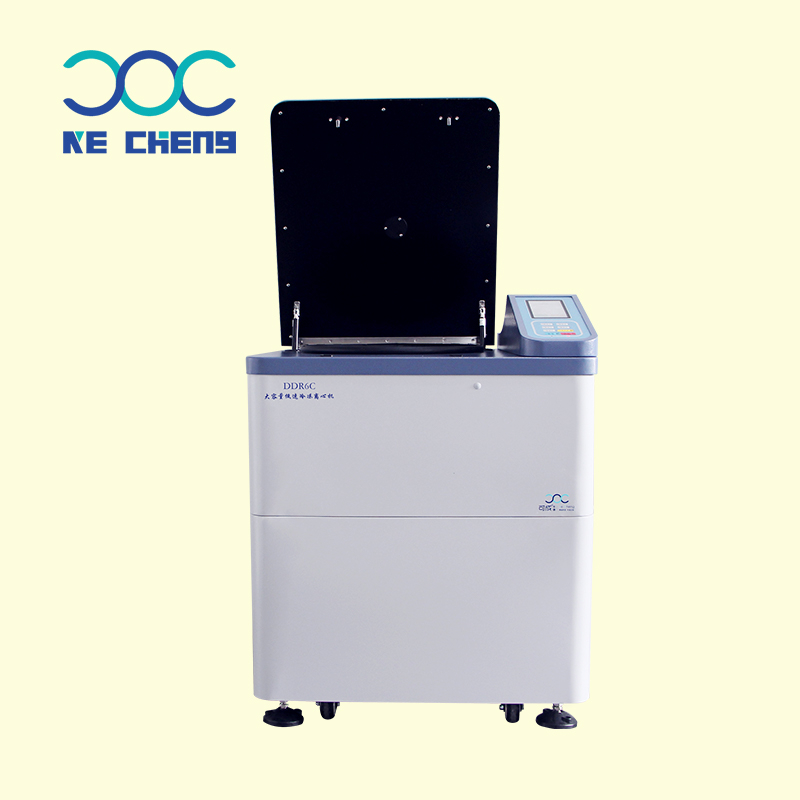

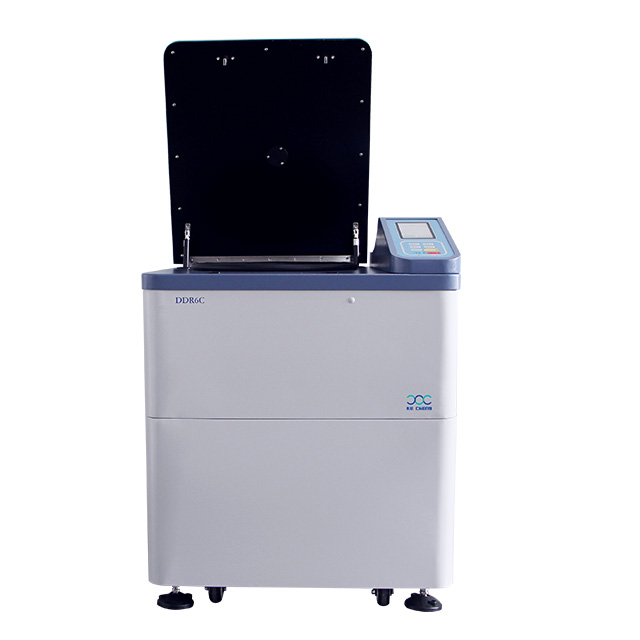

DDR6C Floor Large Capacity Low Speed Refrigerated Centrifuge
Technical Parameter：
Intelligent control system
◆ 7inches HD Large LCD touch screen display
◆ The acceleration and deceleration mode can be set, and the speed RCF setting mode is provided. Users can arbitrarily set the speed up and down time and automatically calculate the RCF value.
◆ 5 directly program groups shortcut key,and store more than 99 program groups
◆ 10 gears acceleration /deceleration with linear drive.
◆ User management function setting the password to lock the machine
Excellent kernel performance
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Special thermal insulation inside the machine ensure it running temperature more stable.
◆ Energy-efficient Eco friendly CFC free refrigerating system,temperature between -20℃~+40℃.
Careful and safe
◆ Bloodbank station specialized 6*1000ml square bucket with bloodbag adapters
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
◆ Electronic self suck door and electromagnetic induction door protection identification.
Intimate detail design
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
Technical Parameter：
Model | DDR6C |
Max Speed | 6500rpm | Power | 3200W |
Max RCF | 6680×g | Noise Level | ≤ 65dB（A） |
Max Capacity | 6×1000ml | Size | 905×755×1070(mm) |
Timer | 1s～99h59min59s | Net Weight | 301kg |
Revolutions/min | ±10r/min | Rotor automatic recognition | Yes |
Temp Range | -20℃～40℃ | Voltage | AC 220±22V 50Hz 25A |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 6×250ml | 6500rpm | 6610×g |
2 | 6×300ml | 6500rpm | 6610×g |
2 | 3 | 6×500ml | 6000rpm | 6680×g |
Swing-out rotor | 3 | 4 | 6×1000ml(Round bucket) | 4200rpm | 5100×g |
5 | 6×1000ml(Square bucket) | 4200rpm | 5100×g |
6 | Auto uncap 168×2~7ml （Blood collection tube） | 4200rpm | 5100×g |
* All products can be customized, designed and produced according to customer requirements.
