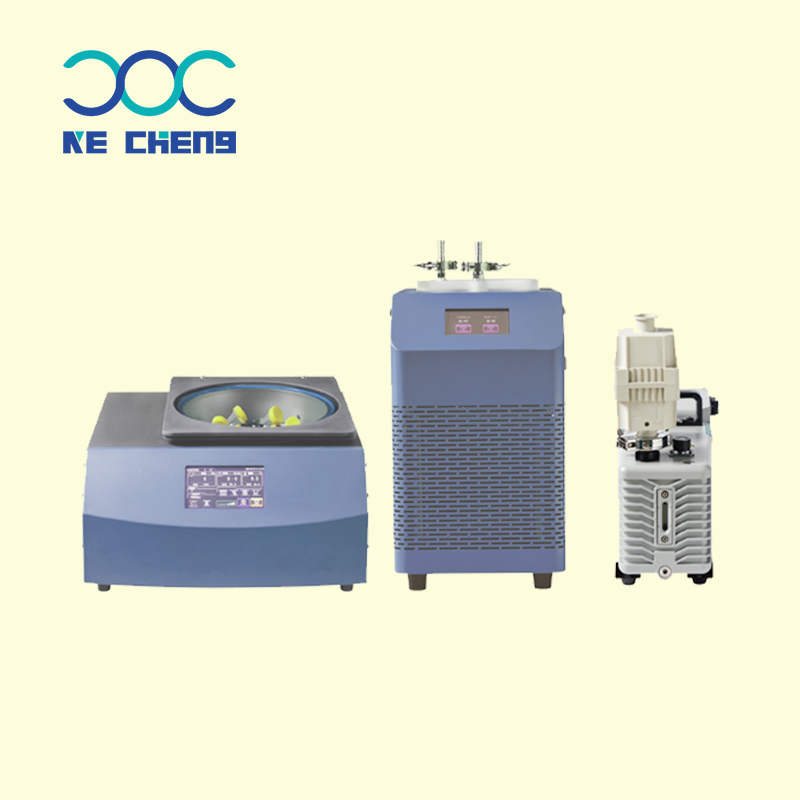

ZL3
可成
Product Features：
◆ Large HD touchscreen display, intelligent microprocessor control and simple and direct operation interface are adopted.
◆ Vacuum refrigerated centrifugal concentrator, can be used for heat-sensitive sample concentration, can meet the ultra-low temperature concentration needs of RNA/DNA,protein and other heat-sensitive samples, but also can meet the normal temperature concentration needs, wide temperature control range, the lowest chamber temperature can support -10℃~100℃ .
◆ Anti-chemical corrosion centrifugal chamber is made of aluminum alloy, R Angle arc design, easy to clean.
◆ Cold trap+corrosion-resistant vacuum diaphragm pump, which can complete the sample concentration process with one button, 304 stainless steel cold trap.
◆ Various turnheads are equipped with optional and transparent cover plates to facilitate observation of progress.
◆ AC frequency conversion maintenance-free induction motor,can store 32 program groups
◆ It can be used with a centrifugal imager optional to observe the condition of the concentrator during operation.
◆ Built-in vacuum delay function, vacuum after the speed reaches the preset value, effectively protect the sample, anti-splash.
Technical Parameter：
Model：ZL3 | |||
Max Capacity | 4×250ml | Timer | 0-99h59min |
Max Speed | 2000rpm | Overall power | 1200W |
Max RCF | 590×g | Voltage | AC 220±22V 50/60Hz 10A or custom made |
temperature Range | -10℃~100℃ | Net Weight | 60Kg |
Noise | ≤60dB(A) | Overall dimension（mm） | 550×560×240（mm） |
（Low Temperature Cold Trap） | |||
Temperature range | 0 ~ -65℃ | Size（mm） | 60×500×480（mm） |
Net Weight | 48kg | Voltage | AC 220±22V 50/60Hz 10A or custom made |
Temp Accuracy | ±1℃ | - | - |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle Rotor | 1 | 1 | 42×1.5/2ml | 2000rpm | 590×g |
2 | 2 | 12×15ml | 1800rpm | 365×g | |
3 | 3 | 6×50ml | 1800rpm | 405×g | |
4 | 4 | 184×1.5/2ml | 1800rpm | 365×g | |
Disc Rotor | 5 | 5 | 4×250ml | 1800rpm | 350×g |
Micro Plate Rotor | 6 | 6 | 2×96hole | 1800rpm | 365×g |
Angle Rotor | 7 | 7 | 132×1.5/2ml | 1800rpm | 365×g |
