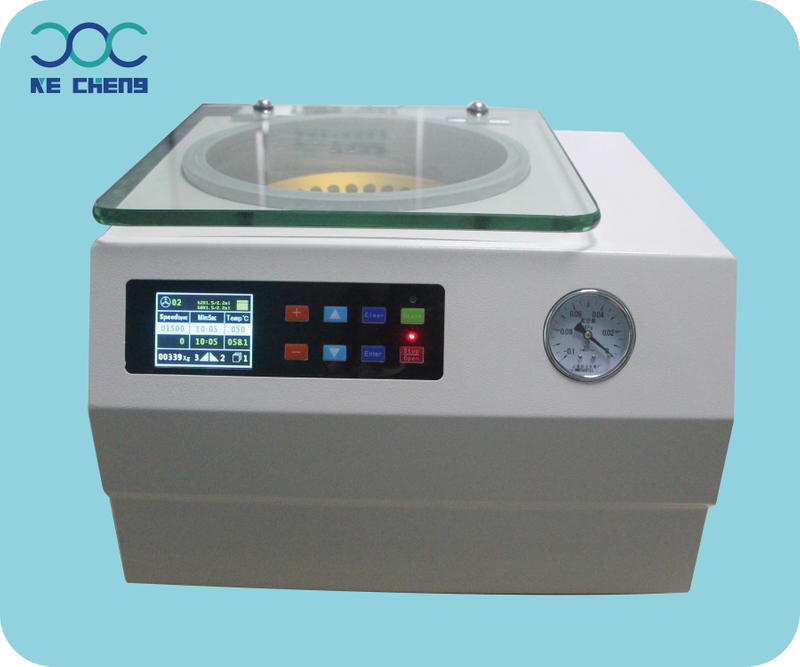

ZL3 series vacuum centrifugal concentrator, combines centrifugal, vacuum and heating methods to evaporate solvents and recycle biological or analytical samples effectively. It is widely used in the fields of life science, chemistry and pharmacy.
Product features:
² Adopts large screen liquid crystal display, intelligent microprocessor control, direct and simple operation interface.
² The drying chamber made by aluminum alloy, Internal drying cavity with anti-corrosion by coating.
² Free maintenance for non-contact driving rotating system.
² With various head, transparent cover, easy to observe the progress of.
² The set time of concentration: 0-99H59min can be used with cold trap.
Technical Parameter：
Model | ZL3-1K | ZL3-2K | ZL3-3K |
Rotor capacity | 62×1.5ml | 12×10ml or 6×50ml | 6×250ml |
Max RPM（r/min） | 1500r/min | 1500 r/min | 2000 r/min |
Stable range | Indoor temperature～55°or no need warming up | Indoor temperature～60°or no need warming up | Indoor temperature～60°or no need warming up |
Vacuum pump | Optional | Optional | Optional |
Outer Dimensions | 500×490×280mm | 500×490×280mm | 600×540×360mm |
Selection information:
KC200101: the cold trap, 4L, temperature control accuracy: + 1 degrees, temperature setting range: room temperature to -50 degrees.
The vacuum pump: KC200102
