Lab Grinder

KC-48 grinding instrument is a fast, efficient, multi tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues / organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.). This high-throughput tissue grinder has excellent performance and can effectively inhibit the degradation of nucleic acid and retain protein activity.
Availability:
Quantity:
  • KC-48
  • Kecheng

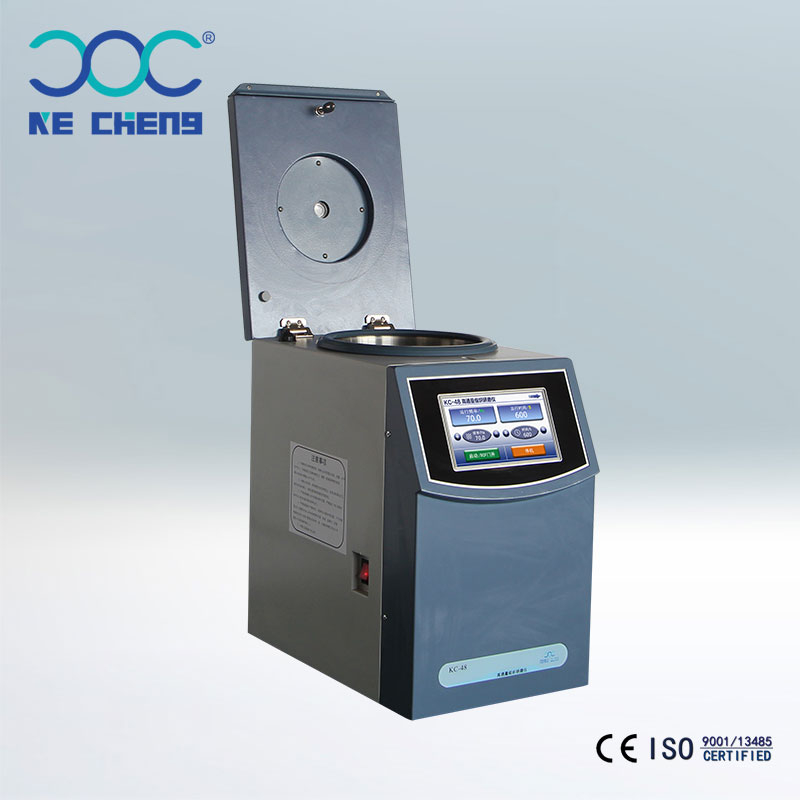

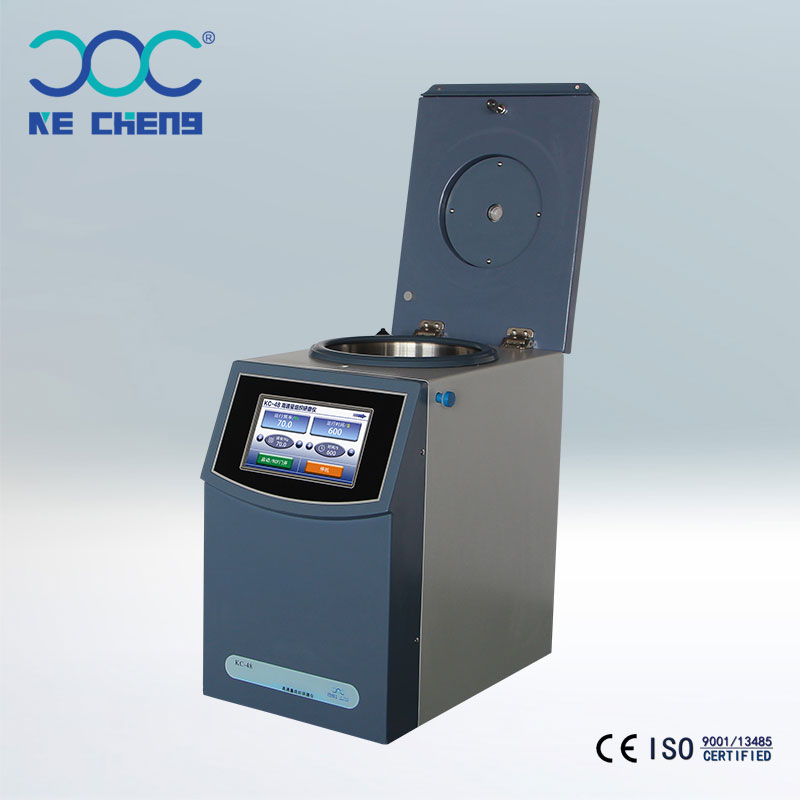

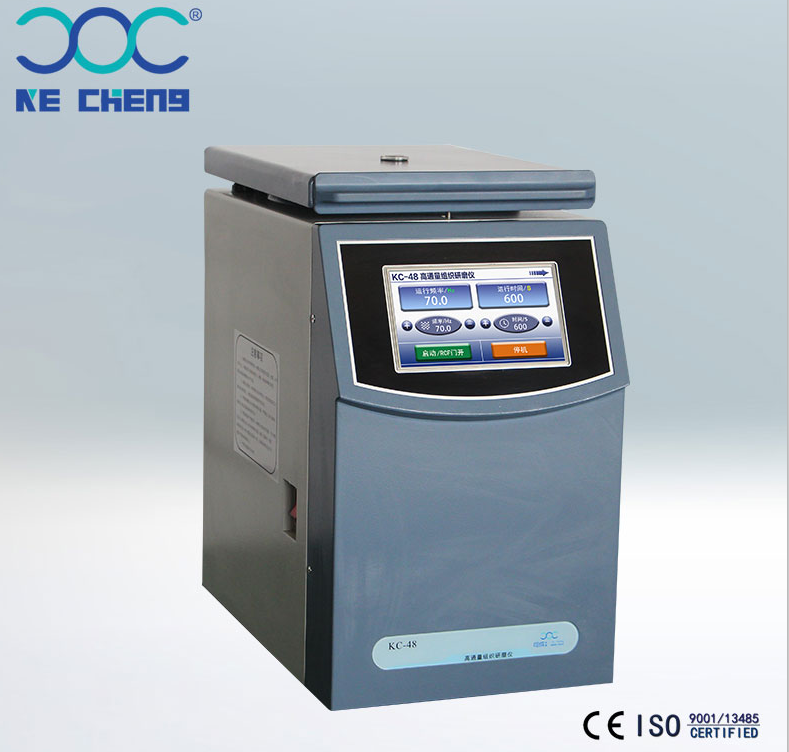

KC-48 Kecheng 48 Holes High-Throughput Tissue  lab grinder machine

◎  Vertical grinding  makes the sample  more thoroughly broken。

◎ 48 samples can be processed at one time in 1 minute。

◎  The grinding time is short and the sample temperature will not rise。

◎  It is completely closed during crushing without cross infection。

◎  Good repeatability: the same procedure is set for the same tissue sample to obtain the same grinding effect。

◎ Easy to operate: parameters such as grinding time and rotor vibration frequency can be set。

◎ Good repeatability and easy operation。

◎  Good  stability,  low  noise  and  convenient  low temperature operation

echnical Parameter

Model

KC-48

Standard

configuration

2.0mlx48 with PE Adapater

Display mode

LCD (HD) touch screen

Optional adapter

5.0mlX12

10mlX4

Temperature range

room temperature

Noise level

< 55db

Crushing principle

Impact force, friction

Power Supply

AC 220±22V 50Hz 10A

Oscillation frequency

0-70HZ/S

Power

180W

Crushing mode

Vertical reciprocating ball grinding method;

dry grinding, wet grinding, precooling

grinding can be used

Net Weight

35KG

Acceleration /    deceleration time

2 Sec reach

Max speed / mini speed

Oscillation time

0 seconds - 99 minutes adjustable

Driving mode

Brushless DC motor

Programming function

upgrade

Feed size

No requirement, adjust according to adapter

Micron-Mesh

~5µm

Optional grinding beads

Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand, etc

Grinding beads diameter

0.1-30mm

Safety in use

Fastening device with automatic center

positioning, safety lock in working room,

full protection

Overall dimension

440mm×300mm×500mm

*The noise emission value of the working environment depends on the type of sample and the setting of grinding instrument. The parameters in the table are in no-load state。


Application scope:

KC-48 grinding instrument is a fast, efficient, multi tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues / organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.). This high-throughput tissue grinder has excellent performance and can effectively inhibit the degradation of nucleic acid and retain protein activity.

1. It is suitable for grinding and crushing various plant tissues including roots, stems, leaves, flowers, fruits, seeds, etc;

2. It is suitable for grinding and crushing various animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc;

3. It is suitable for grinding and crushing fungi, bacteria and other samples;

4. It is suitable for grinding and crushing in the analysis and detection of food and drug components;

5. Suitable for grinding and crushing volatile samples including coal, oil shale, wax products, etc;

6. It is suitable for grinding and crushing of plastics, polymers including PE, PS, textiles, resins, etc.

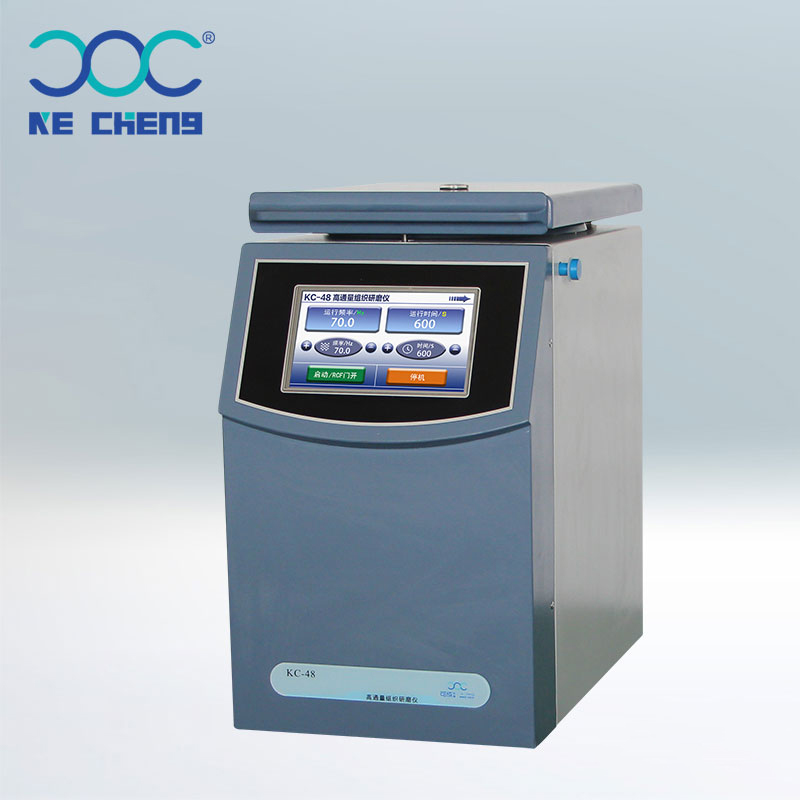

KC-48 Kecheng 48 Holes High-Throughput Tissue  lab grinder machine

0511

Scope of Application:

1. It is suitable for grinding and crushing various plant tissues, including roots, stems, leaves, flowers, fruits, seeds, etc;

2. It is suitable for grinding and crushing various animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc;

3. Suitable for grinding and crushing of fungi, bacteria and other samples;

4. It is suitable for grinding and crushing of food and drug composition analysis;

5. Suitable for grinding and crushing of volatile samples including coal, oil shale and wax products;

6. Suitable for grinding and crushing of plastics, polymers, including PE, PS, textiles, resins, etc.

 Product Features

High frequency grinding machine, high frequency grinding machine and high frequency vibration are used to achieve the purpose of grinding ceramic balls. The results show that the grinded samples are more sufficient and uniform, the sample repeatability is better, and there is no cross contamination between the samples

1. A large number of operations, good results

It can finish the grinding of 2X24, 2x48 and 4x96 samples in 1 minute. The difference between batches and within batches is small. The extracted protein had higher specific activity and longer nucleic acid fragment.

2. No cross contamination

The sample tube is completely closed in the crushing process, and disposable centrifugal tube and beads can be used. The sample is kept intact in the tube to avoid cross contamination and external contamination.

3. Easy to operate

3.1 built in program controller can set parameters such as grinding time and rotor vibration frequency;
