Key Features:
Touchscreen, controlled by computer, large screen LCD, simultaneous display of configured parameter and operating parameters, Chinese/English operating system, set up RPM, RCF, temperature, time at your own will, auto calculation of RCF, users can set up to 40 programs and change parameters during operation. Nine shifts for acceleration and deceleration timing, able to stop the machine any time. Optimal centrifuge effect, able to display RPM accelerating and decelerating curve.
Long life：
Imported environmental friendly CFC free cold compressor（refrigerant R404a）, unique refrigeration heat dissipation system, heating and refrigerating dual temperature control, optimized centrifuge effect, great momentum force frequency variable motor, free of toner contamination, life prolonged.
Safety in Operation：
Equipped with door lock and protection systems against imbalance, over speed and over heat, with three layers of protection, safe and reliable, to ensure safety of the machine and user.
Super large capacity:
Able to isolate 12 X 400ml three strip bags or four strip bags, it is able to isolate the most number of blood bags in China. Equipped with 2400ml centrifuge bottle, able to isolate 14400ml samples. 6x2x1000ml Horizontal Rotor, able to fulfill biomedical and pharmaceutical requirement.
Widely applicable：
Widely applied to central blood station, pharmaceutics and biological product.
Technical Parameter：

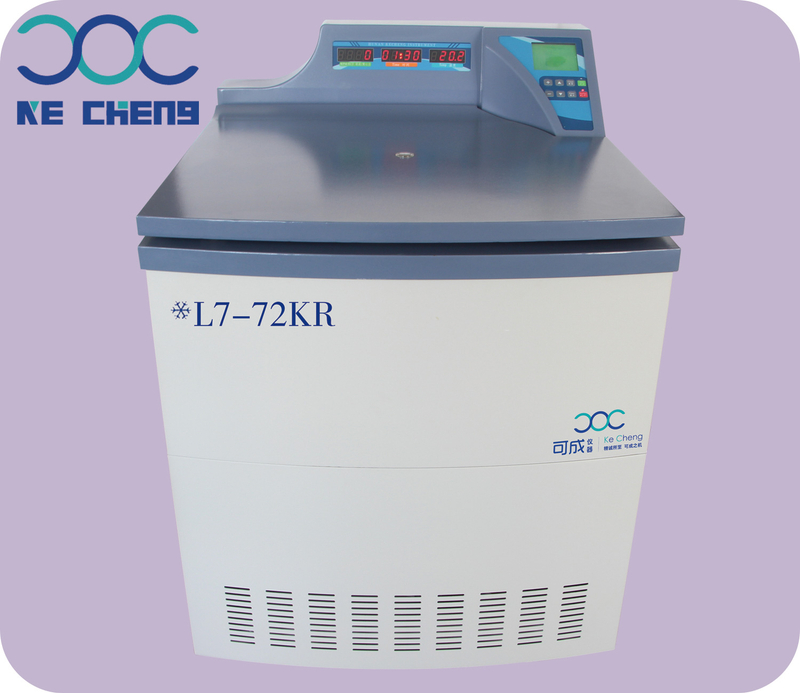

Model | L7-72KR | |||
Max RPM (rpm) | 8000rpm | power supply | AC 220±22V，50Hz，50A | |
Max RCF | 12166×g | total power | 7500W | |
Max Capacity | 6×2400ml | Noise level | ≤ 65dB（A） | |
timing range | 1min～23h59min | centrifuge chamber diameter | φ700mm | |
Temp Range | -20℃～40℃ | dimensions (length x width x height) | 975×860×1180（mm） | |
Temp Accuracy | ±2.0℃ | packaging dimensions (length x width x height) | 1100×980×1400（mm） | |
RPM accuracy | ±20r/min | Net Weight | 500Kg | |
/ | / | Gross Weight | 540Kg | |
Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 6×500ml | 8000rpm/11680×g | |
2 | 6×1000ml | 7200rpm/12166×g | ||
Swing-out Rotor | 3 | 6×2×1000ml | 4200rpm/5000×g | |
4 | 6×2400ml | 4200rpm/5600×g | ||
