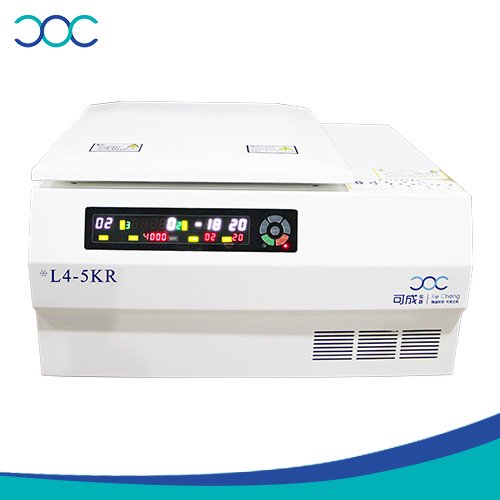

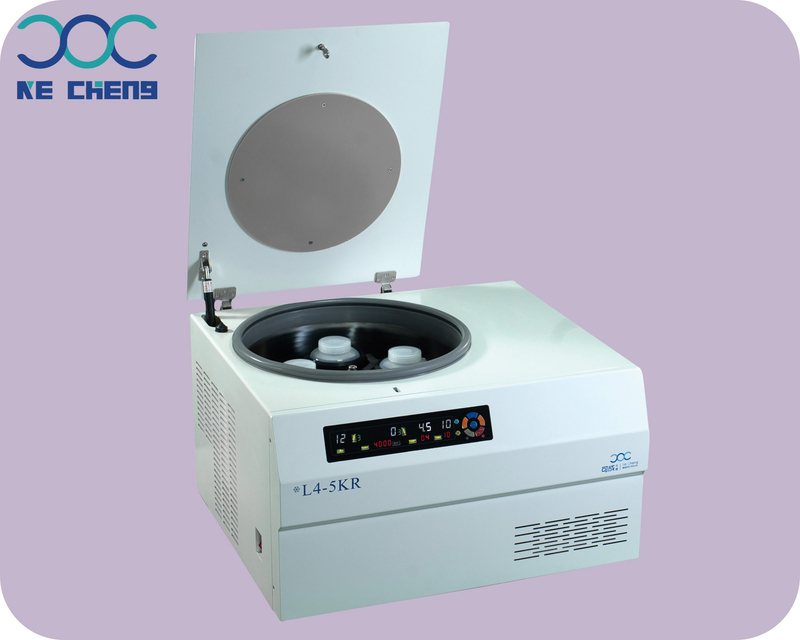

L4-5KR Table low speed refrigerated centrifuge

Availability:
Quantity:

Key Features:



1.  Controlled by micro-computer, AC frequency variable motor drive, able to operate stably and quietly

2.  Multi-color LED displaying parameters including RPM, eccentricity, temperature and timeAble to change parameters anytime during operation without the need to stop the machine

3.  Able to configure centrifugal force, RCF and interchangeable, able to observe anytime

4.  Adopted electronic door lock, inner chamber protected by steel materials

5.  10 types of acceleration and deceleration control, the 9th control able to achieve free stopping time longer than 540s, able to satisfy the requirement of some special samples.

6.  Second display for countdown less than one minute

7.  Adopted electronic door lock, inner chamber protected by steel materials

8.  Imported high efficiency environmental friendly refrigerating system, able to maintain temperature under -4℃ during maximum RPM

9.  L4-5KR is equipped with multiple types of rotor and adaptors, applicable to radioactive immunology, clinical medicine, biochemistry, pharmaceutics, isolation and purification of blood samples.



Technical Parameter



Model

L4-5KR

 Max RPM

5500rpm

Voltage

AC 220±22V 50Hz 15A

 Max RCF

5310×g

Power

1500W

Max Capacity

4×750ml

Noise Level

≤ 65dBA

Timer

1min99min

Chamber diameter

φ420mm

Temp Range

-20℃40℃

Outer Dimensions

645×700×445mm

Temp Accuracy

±2.0℃

Outer packing Dimensions

745×800×545mm

Revolutions/min

±20r/min

Net weight

95kg

/

/

Gross weight

115kg

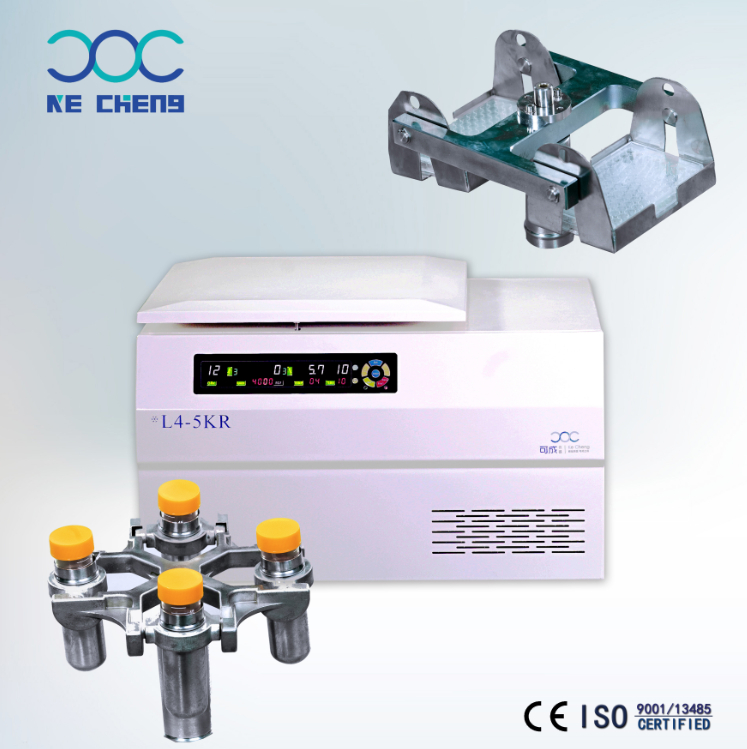

Rotor

No

Capacity

RPM/RCF

Swing-out Rotor

1

4×50ml

5500rpm/5310×g

2

4×100ml

5000rpm/4390×g

3

8×50ml

4000rpm/2810×g

4

16×10/15ml

4000rpm/2810×g

5

24×10/15ml

4000rpm/2810×g

6

32×10/15ml

4000rpm/2810×g

7

48×5/7ml

4000rpm/2810×g

8

64×5/7ml

4000rpm/2810×g

9

72×5/7ml

4000rpm/2810×g

10

96×5/7ml

4000rpm/3580×g

11

120×5/7ml

4000rpm/3580×g

12

4×750ml

4000rpm/3580×g

13

4×500ml

4000rpm/3580×g

14

4×250ml

4000rpm/3500×g

15

4×250ml/Sharp bottom

4000rpm/3500×g

16

6×250ml

4000rpm/3500×g

17

48 tubes uncap basket

4000rpm/3500×g Φ13×75-106

18

72 tubes uncap basket

4000rpm/3500×g Φ13×75-106

19

96 tubes uncap basket

4000rpm/3580×g Φ13×75-106

Micro plates rotor

20

4×2×96 Hole

4000rpm/3550×g

21

2×2×96 Hole

4000rpm/2300×g

22

2×2×48 Hole

4000rpm/1700×g
