Key Features:
1. Controlled by computers, AC frequency variable motor drive, able to operate stably and quietly
2. Multi-color LED displaying parameters including RPM, eccentricity, temperature and time，Able to change parameters anytime during operation without the need to stop the machine
3. Able to configure centrifugal force, RCF,RPM and interchangeable, able to observe anytime
4. Equipped with short spin press button
5. 10 types of acceleration and deceleration control, the 9th control able to achieve free stopping time longer than 540s, able to satisfy the requirement of some special samples.
6. Seconds display for countdown less than one minute
7. Adopted electronic door lock, inner chamber protected by steel materials
8. Suitable for radioactive immunology, biochemistry, pharmaceutics, isolation and purification of blood samples.
Technical Parameter：

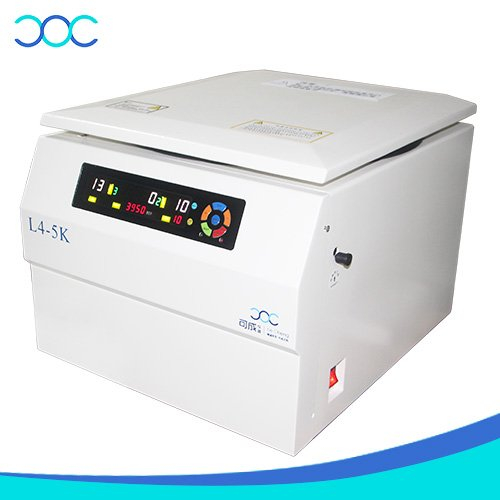

Model | L4-5K | |||
Max RPM (rpm) | 5500rpm | Noise Level | ≤ 65dB（A） | |
Max RCF | 5310×g | Chamber diameter | φ420mm | |
Max Capacity | 4×750ml | Outer Dimensions | 560×460×400mm | |
Timer | 1min～99min | Packing Dimensions | 640×530×470mm | |
Revolutions/min | ±20r/min | Net weight | 50kg | |
Voltage | AC 220±22V 50Hz 10A | Gross weight | 55kg | |
Power | 750W | / | / | |
Rotor | No | Capacity | RPM/RCF | |
Swing-out Rotor | 1 | 4×50ml | 5500rpm/5310×g | |
2 | 4×100ml | 5000rpm/4390×g | ||
3 | 8×50ml | 4000rpm/2810×g | ||
4 | 16×10/15ml | 4000rpm/2810×g | ||
5 | 24×10/15ml | 4000rpm/2810×g | ||
6 | 32×10/15ml | 4000rpm/2810×g | ||
7 | 48×5/7ml | 4000rpm/2810×g | ||
8 | 64×5/7ml | 4000rpm/2810×g | ||
9 | 72×5/7ml | 4000rpm/2810×g | ||
10 | 96×5/7ml | 4000rpm/3580×g | ||
11 | 120×5/7ml | 4000rpm/3580×g | ||
12 | 4×750ml | 4000rpm/3580×g | ||
13 | 4×500ml | 4000rpm/3580×g | ||
14 | 4×250ml | 4000rpm/3500×g | ||
15 | 4×250ml/Sharp bottom | 4000rpm/3500×g | ||
16 | 6×250ml | 4000rpm/3500×g | ||
Automatic uncap basket | 17 | 48 tubes uncap basket | 4000rpm/3500×g Φ13×75-106 | |
18 | 72 tubes uncap basket | 4000rpm/3500×g Φ13×75-106 | ||
19 | 96 tubes uncap basket | 4000rpm/3580×g Φ13×75-106 | ||
Micro plates rotor | 20 | 4×2×96 Hole | 4000rpm/3550×g | |
21 | 2×2×96 Hole | 4000rpm/2300×g | ||
22 | 2×2×48 Hole | 4000rpm/1700×g | ||
