Key Features:
◎Controlled by computers, AC frequency variable motor drive, able to operate stably and quietly
◎Multi-color LED displaying parameters including RPM, eccentricity, temperature and time，Able to change parameters anytime during operation without the need to stop the machine
◎Able to configure centrifugal force, RCF and interchangeable, able to observe anytime
◎Equipped with short spin press button
◎10 types of acceleration and deceleration control, the 9th control able to achieve free stopping time longer than 540s, able to satisfy the requirement of some special samples.
◎Second display for countdown less than one minute
◎Adopted electronic door lock, inner chamber protected by steel materials
◎Suitable for radioactive immunology, biochemistry, pharmaceutics, isolation and purification of blood samples.
Overall Specifications：

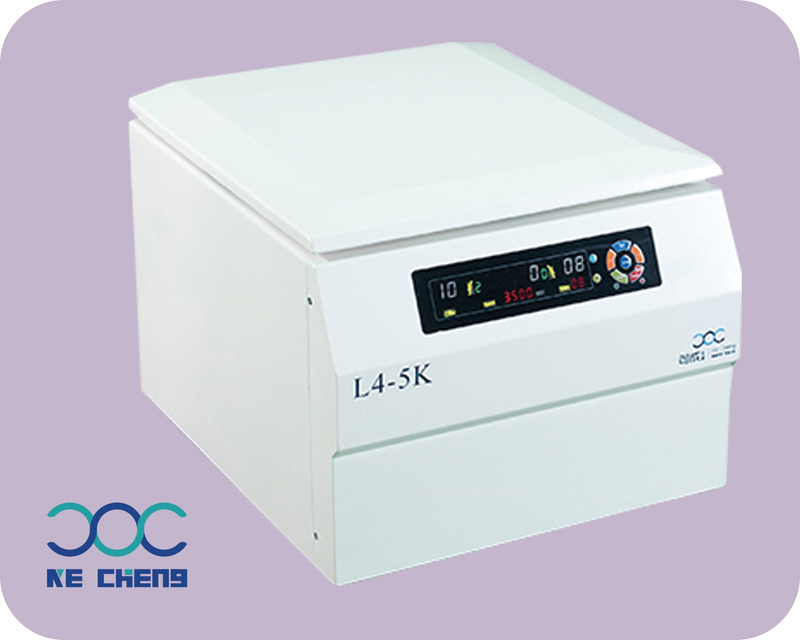

Model | L4-5K | |||
maximum RPM | 5500rpm | noise level | < 65dB（A） | |
maximum RCF | 5310 | centrifuge chamber diameter | φ420mm | |
maximum capacity | 4×750ml | dimensions (length x width x height) | 560×460×400mm | |
timing range | 1min～99min | packaging dimensions (length x width x height) | 660×560×500mm | |
RPM accuracy | ±20r/min | Net Weight | 50kg | |
power supply | AC 220±22V 50Hz 10A | Gross Weight | 55kg | |
total power | 750W | / | / | |
Rotor type | Number | Rotor Capacity | RPM/RCF | |
Horizontal Rotor
| 1 | 4×50ml | 5500rpm/5310×g | |
2 | 4×100ml | 5000rpm/4390×g | ||
3 | 8×50ml | 4000rpm/2810×g | ||
4 | 16×10/15ml | 4000rpm/2810×g | ||
5 | 24×10/15ml | 4000rpm/2810×g | ||
6 | 32×10/15ml | 4000rpm/2810×g | ||
7 | 48×5/7ml | 4000rpm/2810×g | ||
8 | 64×5/7ml | 4000rpm/2810×g | ||
9 | 72×5/7ml | 4000rpm/2810×g | ||
10 | 96×5/7ml | 4000rpm/3580×g | ||
11 | 120×5/7ml | 4000rpm/3580×g | ||
Rotor type | Number | Rotor Capacity | RPM/RCF | |
Horizontal Rotor
| 12 | 4×750ml | 4000rpm/3580×g | |
13 | 4×500ml | 4000rpm/3580×g | ||
14 | 4×250ml | 4000rpm/3500×g | ||
4×250ml/round bottom | 4000rpm/3500×g | |||
15 | 6×250ml | 4000rpm/3500×g | ||
16 | 48 tubes capless basket | 4000rpm/3500×g Φ13×75-106 | ||
17 | 72 tubes capless basket | 4000rpm/3500×g Φ13×75-106 | ||
18 | 96 tubes capless basket | 4000rpm/3580×g Φ13×75-106 | ||
Enzyme labelled plate Rotor | 19 | 4×2×96 wells | 4000rpm/3550×g | |
20 | 2×2×96 wells | 4000rpm/2300×g | ||
21 | 2×2×48 wells | 4000rpm/1700×g | ||
