Key Features:
1. Controlled by computers, AC frequency variable motor drive, able to operate stably and quietly
2. Multi-color LED displaying parameters including RPM, eccentricity, temperature and time，Able to change parameters anytime during operation without the need to stop the machine
3. Able to configure centrifugal force, RCF and interchangeable, able to observe anytime
4. Equipped with short spin press button
5. 10 types of acceleration and deceleration control, the 9th control able to achieve free stopping time longer than 540s, able to satisfy the requirement of some special samples.
6. Second display for countdown less than one minute
7. Adopted electronic door lock, inner chamber protected by steel materials
8. L3-6KR is equipped with multiple types of rotor and adaptors, applicable to radioactive immunology, clinical medicine, biochemistry, pharmaceutics, isolation and purification of blood samples.
Technical Parameter：

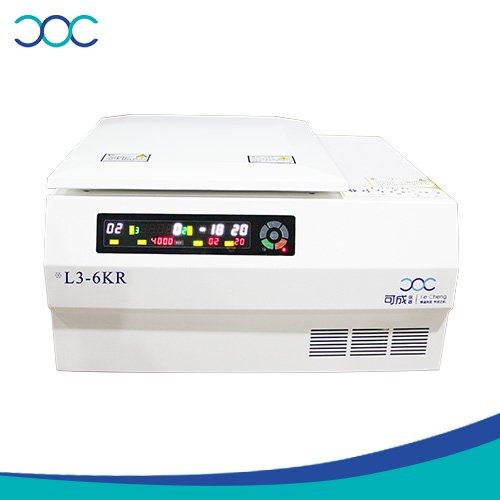

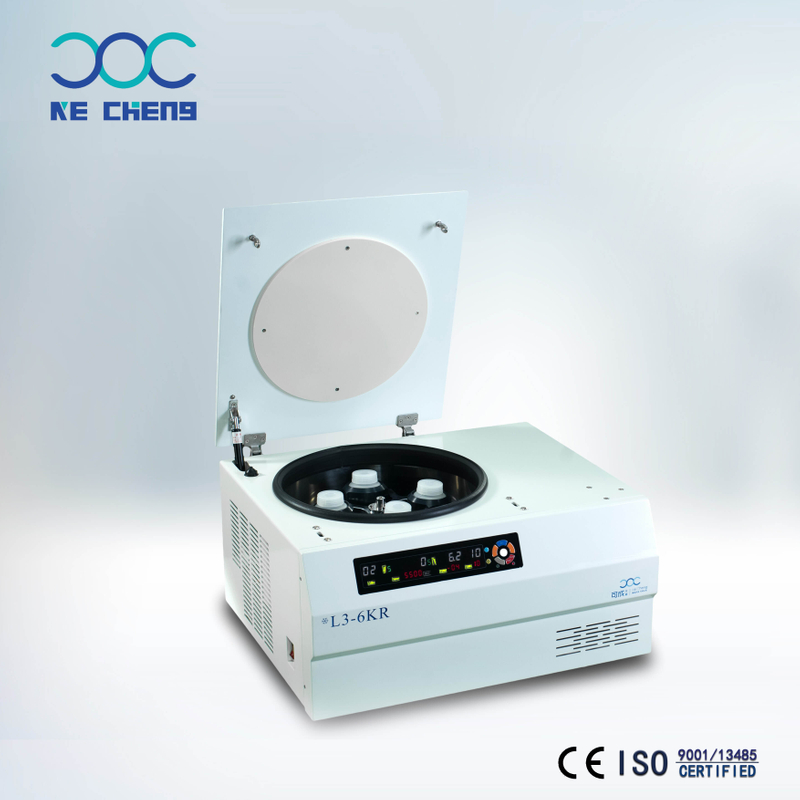

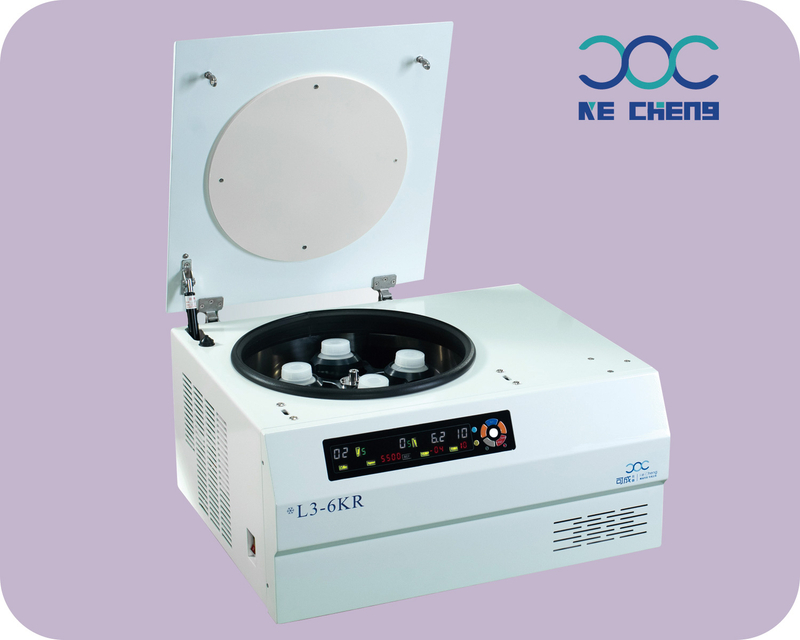

Model | L3-6KR | |||
Max RPM | 6500rpm | Voltage | AC 220±22V 50Hz | |
Max RCF | 5190×g | Power | 800W | |
Max Capacity | 4×250ml | Noise Level | ≤ 65dB（A） | |
Timer | 1min～99min | Chamber diameter | φ380mm | |
Temp Range | -20℃～40℃ | Outer Dimensions | 580×660×365mm | |
Temp Accuracy | ±2.0℃ | Outer packing Dimensions | 680×760×465mm | |
Revolutions/min | ±20r/min | Net weight | 70kg | |
/ | / | Gross weight | 85kg | |
Rotor | No | Capacity | RPM/RCF | |
Angle Rotor（W） | 1 | 6×50ml | 6500rpm/5190×g | |
2 | 12×10/15ml | 6500rpm/5190×g | ||
Swing-out Rotor | 3 | 4×50/100ml | 5000rpm/4390×g | |
4 | 8×50/100ml | 4200rpm/3100×g | ||
5 | 48×5/7ml | 4200rpm/3100×g | ||
6 | 64×5/7ml | 4200rpm/3100×g | ||
7 | 16×10/15ml | 4200rpm/3100×g | ||
8 | 24×10/15ml | 4200rpm/3100×g | ||
9 | 32×10/15ml | 4200rpm/3100×g | ||
10 | 48 tubes uncap basket | 4000rpm/3500×g Φ13×75-106 | ||
11 | 4×250ml | 4200rpm/3850×g | ||
Micro plates rotor | 12 | 2×2×96 Hole | 4200rpm/2530×g | |
13 | 2×2×48 Hole | 4200rpm/1900×g | ||
