Key Features:
1. Medium size,good compatibility, suitable for medium and small sized multi-function experiments.
2. Controlled by computers, AC frequency variable motor drive, able to operate stably and quietly
3. Multi-color LED displaying parameters including RPM, eccentricity, temperature and time，Able to change parameters anytime during operation without the need to stop the machine
4. Able to configure centrifugal force, RCF and interchangeable, able to observe anytime
5. Automatic calculation and display RCF value, RPM and centrifugal force at the same time.
6. Adopted electronic door lock, inner chamber protected by steel materials
7. A variety of stainless steel pipe rack, convenient replacement.
8. With pre-cooling function, freezing centrifuging is more convenient.
9. Set short time special centrifugal special inching key.
Technical Parameter：

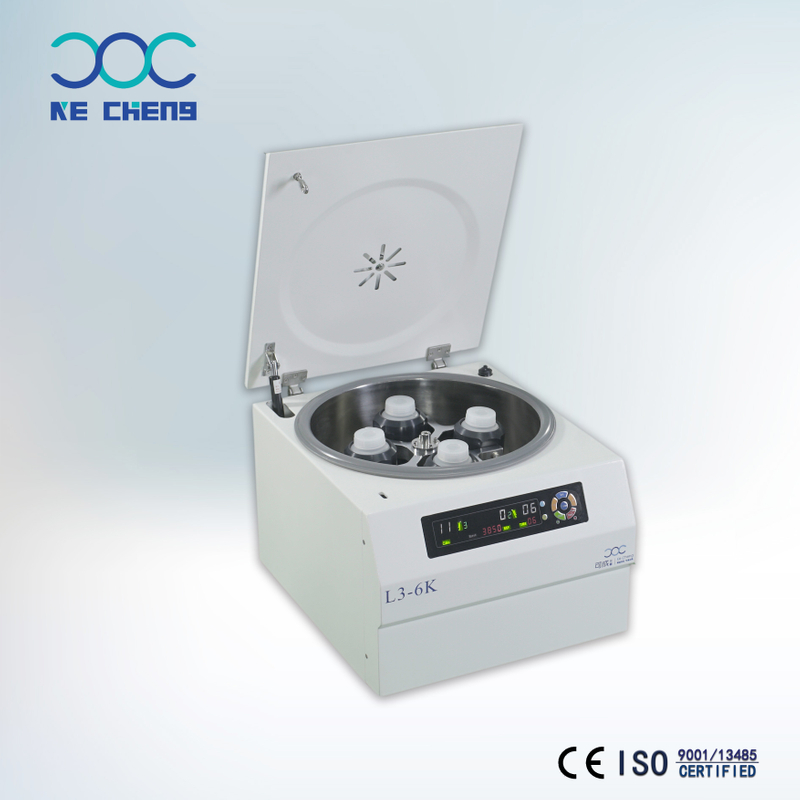

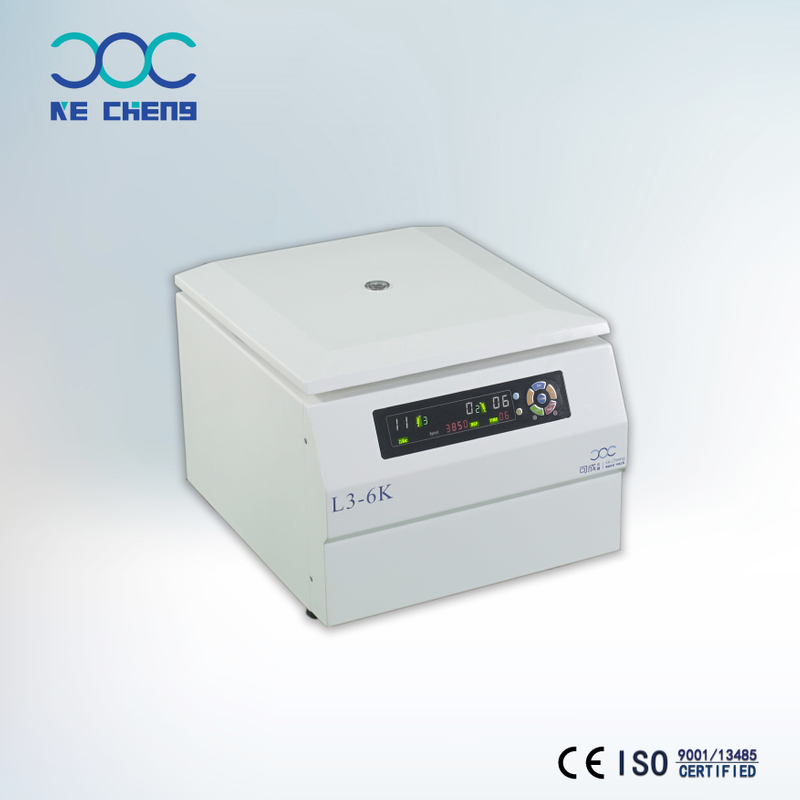

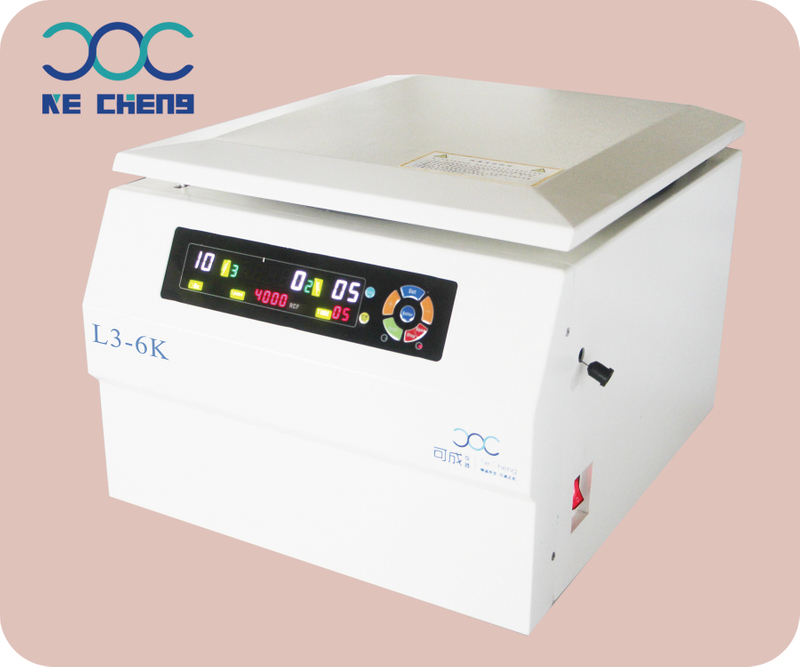

Model | L3-6K | |||
Max RPM (rpm) | 6500rpm | Noise Level | φ380mm | |
Max RCF | 5190×g | Chamber diameter | ≤ 65dB（A） | |
Max Capacity | 4×250 ml | Outer Dimensions | 525×430×360mm | |
Timer | 1min～99min | Outer packing Dimensions | 600×500×440mm | |
Revolutions/min | ±20r/min | Net weight | 40kg | |
Voltage | AC 220±22V 50Hz 10A | Gross weight | 48kg | |
Power | 500W | / | / | |
Rotor | No | Capacity | RPM/RCF | |
Angle Rotor（W） | 1 | 6×50ml | 6500rpm/5190×g | |
2 | 12×10/15ml | 6500rpm/5190×g | ||
Swing-out Rotor | 3 | 4×50/100ml | 5000rpm/4390×g | |
4 | 8×50/100ml | 4200rpm/3100×g | ||
5 | 48×5/7ml | 4200rpm/3100×g | ||
6 | 64×5/7ml | 4200rpm/3100×g | ||
7 | 16×10/15ml | 4200rpm/3100×g | ||
8 | 24×10/15ml | 4200rpm/3100×g | ||
9 | 32×10/15ml | 4200rpm/3100×g | ||
10 | 48 tubes uncap basket | 4000rpm/3500×g Φ13×75-106 | ||
11 | 4×250ml | 4200rpm/3850×g | ||
Micro plates rotor | 12 | 2×2×96 Hole | 4200rpm/2530×g | |
13 | 2×2×48 Hole | 4200rpm/1900×g | ||
