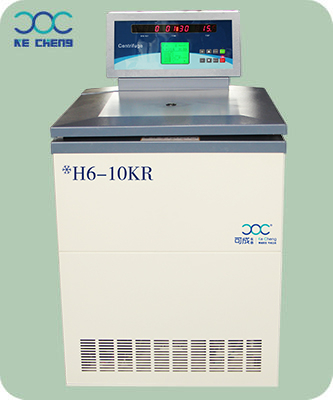

H6-10KR
Key Features:
◆ Superior features
Controlled by computer, AC frequency variable motor drive, toner contamination free and long life. Lower noise and less vibration, equipped with the most recent super light large capacity rotor to enhance efficiency significantly.
Memory-based programmed operation: ten programmed operations.
◆Easy to operate
LCD/LED display, programmable.
◆Optimal effect
User able to set up acceleration/deceleration timing at his will, automatic calculation of RCF value, heating and refrigerating dual control, optimal effect on centrifuge.
◆Safe and reliable
Equipped with over speed, overheat, imbalance and door lid auto lock protection systems to ensure safety of machine and users
Overall Specifications：
Model | H6-10KR | |||
maximum RPM | 11500rpm | power supply | AC 220±22V，50Hz，30A | |
maximum RCF | 18300×g | total power | 4500W | |
maximum capacity | 6×1000ml | noise level | < 65dB（A） | |
timing range | 1min～23h59min | centrifuge chamber diameter | φ600mm | |
temperature range | -20℃～40℃ | dimensions (length x width x height) | 830×720×1250（mm） | |
temperature accuracy | ±2.0℃ | packaging dimensions (length x width x height) | 930×830×1350（mm） | |
RPM accuracy | ±20r/min | Net Weight | 230kg | |
/ | / | Gross Weight | 300kg | |
Rotor Type | Number | Rotor Capacity | Maximum RPM/RCF | |
Angle rotor
| 1 | 6×250ml | 10000rpm/18300×g | |
2 | 6×300ml | 10000rpm/18300×g | ||
3 | 6×500ml | 8000rpm/11620×g | ||
4 | 6×1000ml | 7200rpm/12166×g | ||
Horizontal Rotor | 5 | 4×1000ml | 4500rpm/5000×g | |
6 | 6×1000ml | 4200rpm/5100×g | ||
