Key Features:
1. The series is stable but not heavy, excellent compatibility, large capacity with light rotor.
2. Microcomputer controlled, AC frequency variable motor drive, without toner power pollution,and longer lifetime. Lower noise and less vibration, equipped with multiple types of rotors for users to choose.
3. Auto recognition of rotor and speed limit control, to make centrifuge safer.
4. Imported compressor set, refrigeration and heating double temperature control, unique heat radiation system, to ensure that the cooling effect of the instrument to achieve the best.
5. Able to configure acceleration/deceleration mode, provide configuration of RPM and RCF, and convert RPM/RCF using one key.
6. Equipped with over speed, overheat, imbalance and door lid auto lock protection systems to ensure safety of machine and users
7. compact size, equipped with large torque variable-frequency motor to facilitate acceleration and deceleration and enhance efficiency. Higher performance to cost ratio.
Technical Parameter：

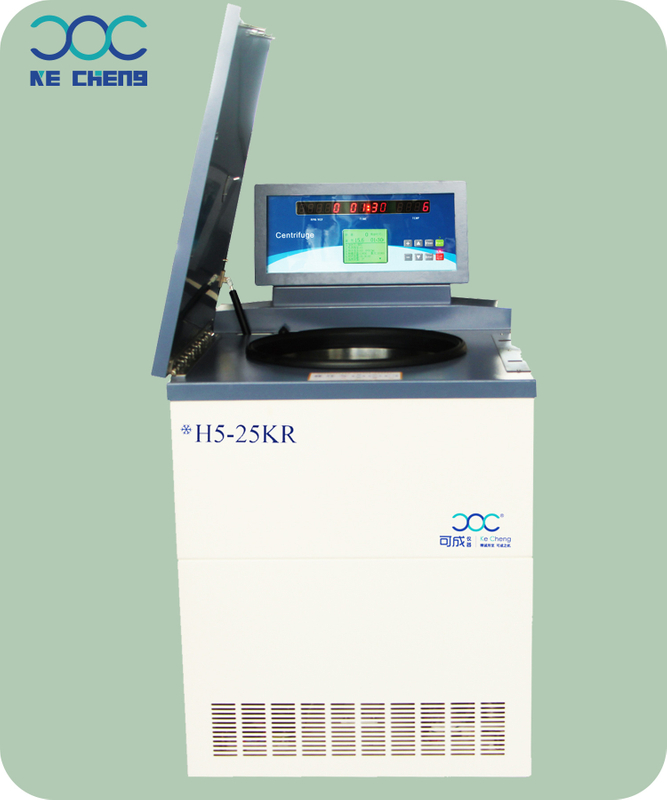

Model | H5-25KR | |||
Max RPM (rpm) | 25000rpm | power supply | AC 220±22V，50Hz，35A | |
Max RCF | 64800×g | total power | 4500W | |
Max Capacity | 4×1000ml | Noise level | ≤ 65dB（A） | |
timing range | 1min～23h59min | centrifuge chamber diameter | φ600mm | |
Temp Range | -20℃～40℃ | dimensions (length x width x height) | 830×720×1250（mm） | |
Temp Accuracy | ±2.0℃ | packaging dimensions (length x width x height) | 930×830×1350（mm） | |
RPM accuracy | ±20r/min | Net Weight | 320kg | |
/ | / | Gross Weight | 355kg | |
Rotor Type | No | Rotor Capacity | RPM/RCF | |
Angle Rotor | 1 | 24×1.5/2.2ml | 25000rpm/64800×g | |
2 | 18×10ml | 23000rpm/60460×g | ||
3 | 8×50ml | 21000rpm/52356×g | ||
4 | 6×250ml | 14000rpm/30074×g | ||
5 | 8×100ml | 13000rpm/19830×g | ||
6 | 6×500ml | 10000rpm/17700×g | ||
7 | 4×1000ml | 8000rpm/12040×g | ||
