Key Features:
1. This model is small and compact size and able to centrifuge maximum 6x250ml angle rotors. It is the large capacity small sized floor type high speed centrifuge that is not common in the market.
2. Equipped with both angle rotor for high speed centrifuge and swing-out rotor for low speed centrifuge, multiple functions for one machine.
3. Microcomputers controlled, AC variable-frequency motor drive, operate stably and quietly
4. Automatic recognition of rotors and speed limit control, making centrifuging safer.
5. Able to configure centrifugal force, RCF and interchangeable, able to observe anytime
6. Equipped with short spin press button
7. Second display for countdown less than one minute
8. Adopted electronic door lock, inner chamber protected by steel materials
9. Suitable for radioactive immunology, biochemistry, pharmaceutics, isolation and purification of blood samples.
Technical Parameter：

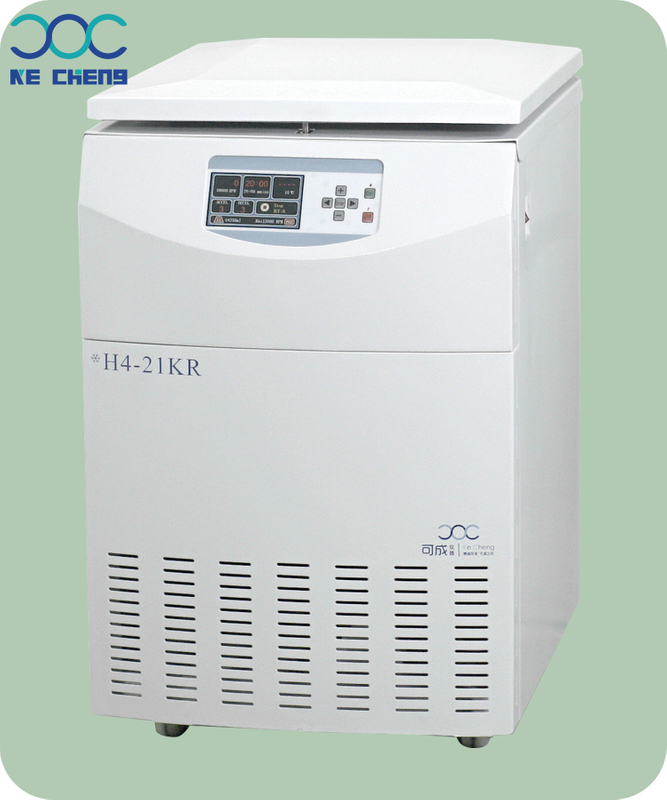

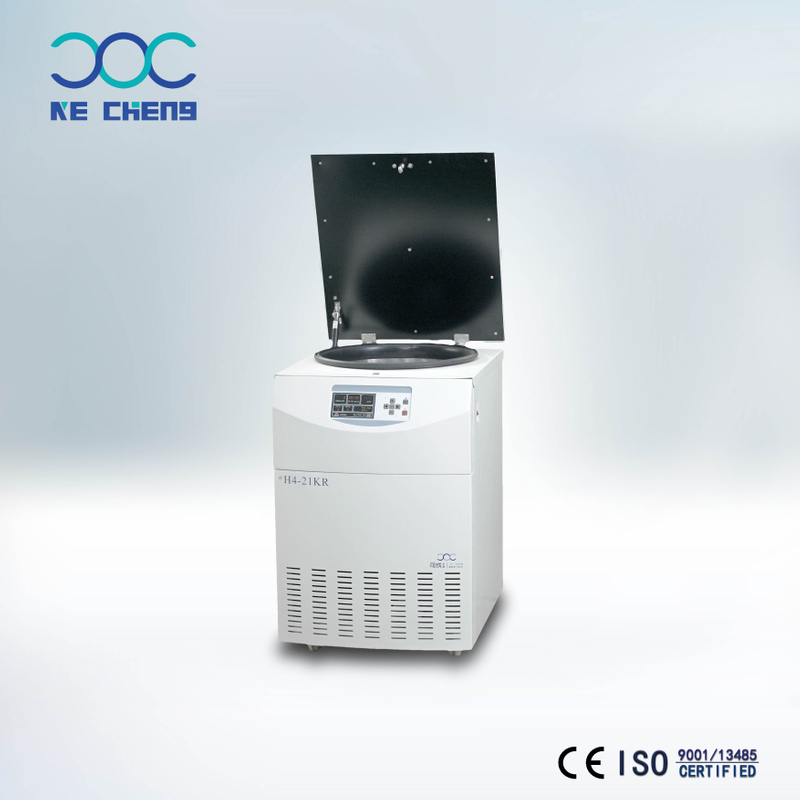

Model | H4-21KR | |||
Max RPM (rpm) | 23000rpm | power supply | AC 220±22V 50Hz 15A | |
Max RCF | 35500×g | total power | 1300W | |
Max Capacity | 4×750ml | Noise level | ≤ 65dB（A） | |
timing range | 1min～23h59min | centrifuge chamber diameter | φ420mm | |
Temp Range(freezing） | -20℃~ 40℃ | dimensions (length x width x height) | 510×660×780(mm) | |
Temp Accuracy(freezing） | ±2℃ | packaging dimensions (length x width x height) | 570×720×850(mm) | |
RPM accuracy | ±20r/min | Net Weight | 150kg | |
/ | / | Gross Weight | 180kg | |
Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 12×1.5ml | 23000rpm/35500×g | |
2 | 16×1.5ml | 20000rpm/30230×g | ||
3 | 10/12×5ml | 18500rpm/23000×g | ||
4 | 24×1.5/2.2ml | 18000rpm/29650×g | ||
5 | 12×10ml | 17000rpm/29700×g | ||
6 | 6×50ml/ round bottom | 16000rpm/23430×g | ||
7 | 6×50ml/Sharp bottom | 14000rpm/20800×g | ||
8 | 8×50ml | 12000rpm/16000×g | ||
9 | 4×100ml | 13000rpm/18160×g | ||
10 | 6×100ml | 12500rpm/18550×g | ||
11 | 4×250ml | 12000rpm/21630×g | ||
12 | 4×8×0.2ml PCR Tube | 13000rpm/13800×g | ||
Swing-out Rotor | 13 | 96×5/7ml Pipe | 4000rpm/ 3580×g | |
14 | 4×500ml | 4000rpm/ 3580×g | ||
15 | 4×750ml | 4000rpm/ 3580×g | ||
16 | 6×250ml | 4000rpm/ 3500×g | ||
Micro plates rotor | 17 | 4×2×96 Hole | 4000rpm/ 3550×g | |
Key Features:
1. This model is small and compact size and able to centrifuge maximum 6x250ml angle rotors. It is the large capacity small sized floor type high speed centrifuge that is not common in the market.
2. Equipped with both angle rotor for high speed centrifuge and swing-out rotor for low speed centrifuge, multiple functions for one machine.
3. Microcomputers controlled, AC variable-frequency motor drive, operate stably and quietly
4. Automatic recognition of rotors and speed limit control, making centrifuging safer.
5. Able to configure centrifugal force, RCF and interchangeable, able to observe anytime
6. Equipped with short spin press button
7. Second display for countdown less than one minute
8. Adopted electronic door lock, inner chamber protected by steel materials
9. Suitable for radioactive immunology, biochemistry, pharmaceutics, isolation and purification of blood samples.
Technical Parameter：
Model | H4-21KR | |||
Max RPM (rpm) | 23000rpm | power supply | AC 220±22V 50Hz 15A | |
Max RCF | 35500×g | total power | 1300W | |
Max Capacity | 4×750ml | Noise level | ≤ 65dB（A） | |
timing range | 1min～23h59min | centrifuge chamber diameter | φ420mm | |
Temp Range(freezing） | -20℃~ 40℃ | dimensions (length x width x height) | 510×660×780(mm) | |
Temp Accuracy(freezing） | ±2℃ | packaging dimensions (length x width x height) | 570×720×850(mm) | |
RPM accuracy | ±20r/min | Net Weight | 150kg | |
/ | / | Gross Weight | 180kg | |
Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 12×1.5ml | 23000rpm/35500×g | |
2 | 16×1.5ml | 20000rpm/30230×g | ||
3 | 10/12×5ml | 18500rpm/23000×g | ||
4 | 24×1.5/2.2ml | 18000rpm/29650×g | ||
5 | 12×10ml | 17000rpm/29700×g | ||
6 | 6×50ml/ round bottom | 16000rpm/23430×g | ||
7 | 6×50ml/Sharp bottom | 14000rpm/20800×g | ||
8 | 8×50ml | 12000rpm/16000×g | ||
9 | 4×100ml | 13000rpm/18160×g | ||
10 | 6×100ml | 12500rpm/18550×g | ||
11 | 4×250ml | 12000rpm/21630×g | ||
12 | 4×8×0.2ml PCR Tube | 13000rpm/13800×g | ||
Swing-out Rotor | 13 | 96×5/7ml Pipe | 4000rpm/ 3580×g | |
14 | 4×500ml | 4000rpm/ 3580×g | ||
15 | 4×750ml | 4000rpm/ 3580×g | ||
16 | 6×250ml | 4000rpm/ 3500×g | ||
Micro plates rotor | 17 | 4×2×96 Hole | 4000rpm/ 3550×g | |
