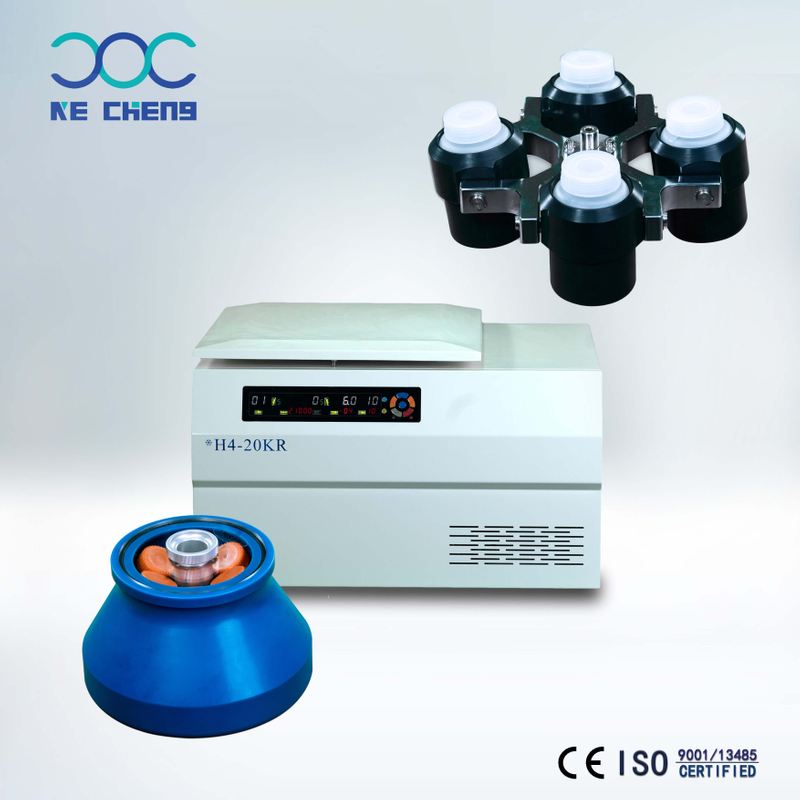

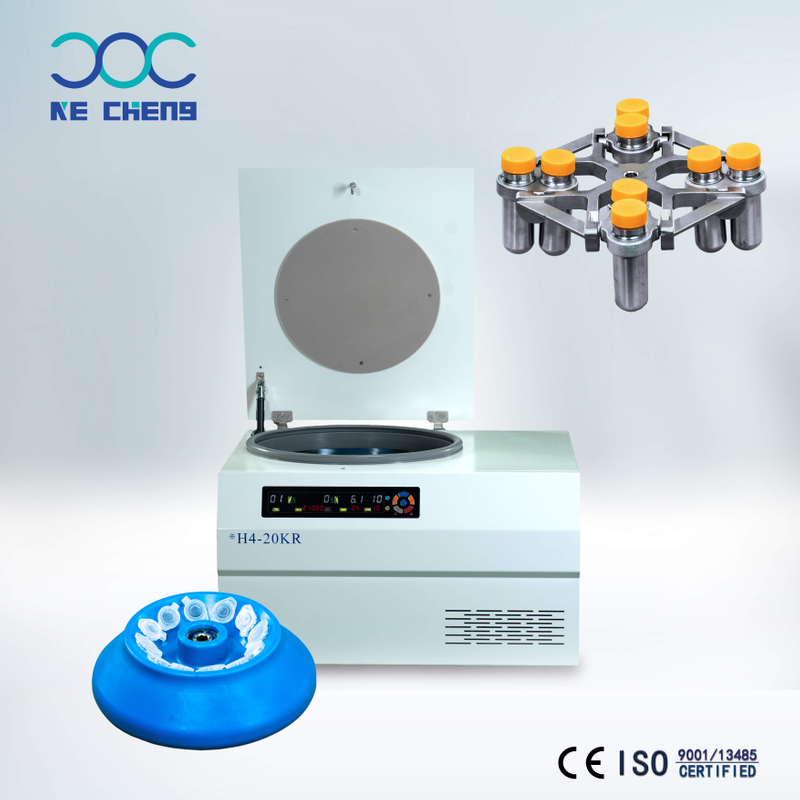

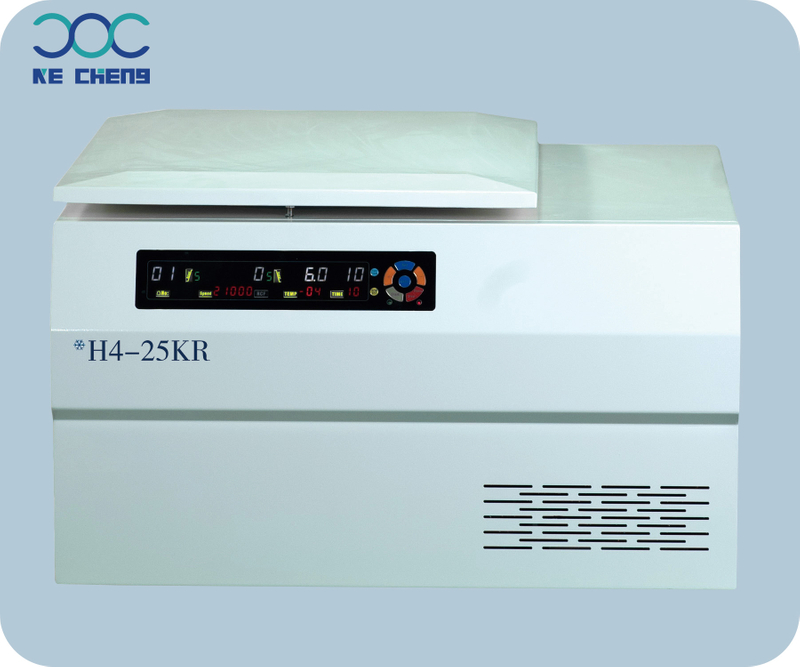

H4-20KR/H4-25KR/H4-30KR high speed refrigerated centrifuge

Quantity:

Features:



1.  High and low speed centrifuge, equipped with multiple types of rotors and stands, superior compatibility and multifunction.

2.  Controlled by microcomputers, AC frequency variable motor drive, able to operate stable and quietly.

3.  Multi-color LCD display, user-friendly, clearer and more direct display. .

4.  Automatic recognition of rotors and speed limit control, making centrifuging safer.

5.  Able to configure centrifugal force, RCF and interchangeable, able to observe anytime.

6.  10 types of acceleration and deceleration control, the 9th control able to achieve free stopping time longer than 540s, able to satisfy the requirement of some special samples.

7.  Second display for countdown less than one minute.

8.  Adopted electronic door lock, inner chamber protected by steel materials.

9.  Suitable for radioactive immunology, biochemistry, pharmaceutics, isolation and purification of blood samples.

10.  Imported high efficiency environmental friendly refrigerating system, able to maintain temperature under -4℃ during maximum RPM.

11.   With pre-cooling function, freezing centrifuging is more convenient.



Technical Parameter



Model

H4-20KR

H4-25KR

H4-30KR


 Max RPM

21000rpm

Voltage

AC 220±22V 50Hz 15A

25000rpm

30000rpm


 Max RCF

30642×g

Power

1300W

41900×g

62400×g


Max Capacity

4×750ml

Noise Level

≤ 65dBA

10×5ml

10×5ml


Timer

1min99min

Chamber diameter

φ420mm

1min99min

1min99min


Temp Range

-20℃40℃



Inner Dimensions



645×700×445mm

-20℃40℃

-20℃40℃


Temp Accuracy

±2.0℃

Packaging dimensions

735×800×545mm

±2.0℃

±2.0℃


Revolutions/min

±20r/min

Net weight

95kg

±20r/min

±20r/min


/

/

Gross weight

105kg

/

/


Rotor

No

Capacity

MAX RPM/MAX RCF

MAX RPM/MAX RCF

MAX RPM/MAX RCF


 Angle Rotor

1

4×1.5/2.0ml

/

/

30000rpm/62400×g


1

12×1.5/2.2ml

21000rpm/ 30642×g

25000rpm/41900×g

/


2

16×1.5/2.2ml

21000rpm/ 30230×g

/

/


3

18×0.5ml

18000rpm/ 20200×g

/

/


4

10/12×5ml

18000rpm/ 20800×g

20000rpm/27218×g

20000rpm/27218×g


5

24×1.5/2.2ml

16500rpm/ 26050×g

/

/


6

12×10ml

15000rpm/ 23120×g

/

/


7

6×50ml round bottom

14000rpm/ 19885×g

/

/


8

6×50mlSharp bottom

13000rpm/ 18065×g

/

/


9

2×8×0.2ml PCRTube

13500rpm/ 13880×g

/

/


10

4×8×0.2ml PCR Tube

13000rpm/1380s0×g

/

/


11

12×15ml/Sharp bottom

11000rpm/ 12450×g

/

/


12

4×100ml

14000rpm/ 21100×g




13

6×100ml

10000rpm/ 11960×g

/

/

Swing-out Rotor

14

4×50/100ml

5500rpm/ 5310×g

/

/


15

8×50/100ml

4200rpm/ 3100×g

/

/


16

16/24x10/15ml

4200rpm/ 3100×g

/

/


17

32x10/15ml

4200rpm/ 3100×g

/

/


18

48x5/7ml

4200rpm/ 3100×g

/

/


19

64x5/7ml

4200rpm/ 3100×g

/

/


20

72x5/7ml

4200rpm/ 3100×g

/

/


21

4x250ml

4200rpm/ 3850×g

/

/


22

4x250ml/Sharp bottom

4200rpm/ 3850×g

/

/


23

6x250ml

4200rpm/ 3850×g

/

/


24

4x500ml

4200rpm/ 3950×g

/

/


25

4x750ml

4200rpm/ 3950×g

/

/


26

4x24x5ml

4200rpm/ 3950×g

/

/


Micro plates

27

4x2x96 Hole

4200rpm/ 3910×g

/

/


28

2x2x96 Hole

4200rpm/ 2530×g

/

/
