Key Features:
◎High and low speed centrifuge, equipped with multiple types of rotors and stands, superior compatibility and multifunction
◎Controlled by computers, AC frequency variable motor drive, able to operate stably and quietly
◎Multi-color LCD display, user-friendly, clearer and more direct display. .
◎Able to configure centrifugal force, RCF and interchangeable, able to observe anytime
◎10 types of acceleration and deceleration control, the 9th control able to achieve free stopping time longer than 540s, able to satisfy the requirement of some special samples.
◎Second display for countdown less than one minute
◎Adopted electronic door lock, inner chamber protected by steel materials
◎Suitable for radioactive immunology, biochemistry, pharmaceutics, isolation and purification of blood samples.
Overall Specifications：
Model | H4-20K | |||
Max RPM (rpm) | 21000rpm | Chamber diameter | ≤ 65dB（A） | |
Max RCF | 30642×g | Noise Level | 420mm | |
Max Capacity | 4×750ml | Outer Dimensions | 560×460×400mm | |
Timer | 1min～99min | Outer packing Dimensions | 640×530×470mm | |
Revolutions/min | ±20r/min | Net weight | 45kg | |
Voltage | AC 220±22V 50Hz 10A | Gross weight | 50kg | |
Power | 750W | / | / | |

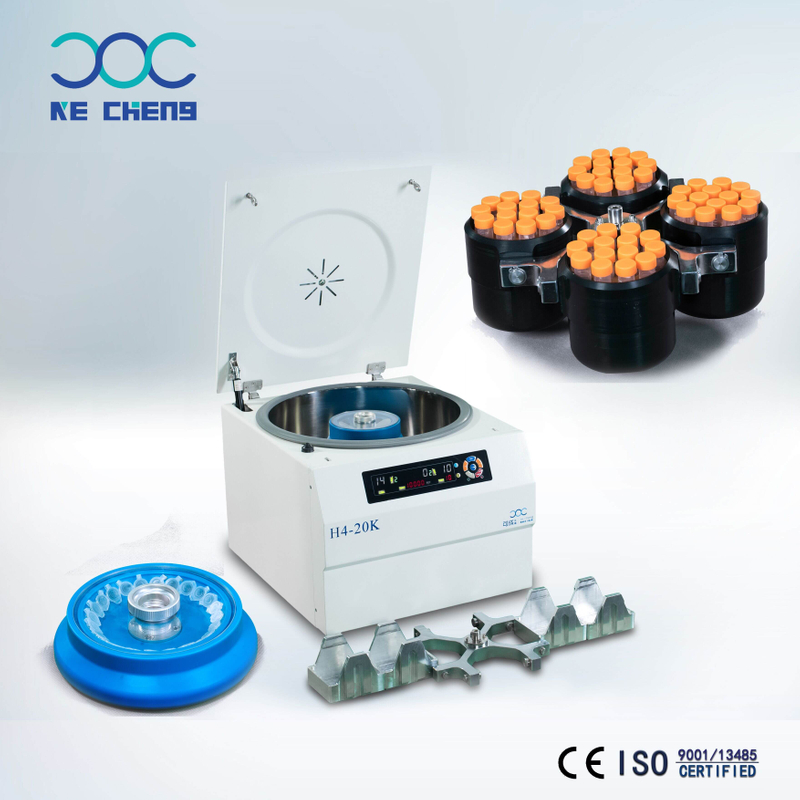

Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 12×1.5/2.2ml | 21000rpm/30642×g | |
2 | 16×1.5/2.2ml | 20000rpm/30230×g | ||
3 | 18×0.5ml | 18000rpm/20200×g | ||
4 | 10/12×5ml | 18000rpm/20800×g | ||
5 | 24×1.5/2.2ml | 16000rpm/23200×g | ||
6 | 12×10ml | 15000rpm/23120×g | ||
7 | 12×15ml /Sharp bottom | 10000rpm/9690×g | ||
8 | 6×50ml/Round bottom | 14000rpm/19885×g | ||
9 | 6×50ml/Sharp bottom | 13000rpm/18065×g | ||
10 | 2×8×0.2ml PCR Tube | 13500rpm/13880×g | ||
11 | 4×8×0.2ml PCR Tube | 13000rpm/13800×g | ||
12 | 8×50ml | 12000rpm/16000×g | ||
13 | 4×100ml | 11000rpm/13000×g | ||
14 | 6×100ml | 10000rpm/11960×g | ||
Swing-out Rotor | 15 | 4×750ml | 4200rpm/3950×g | |
16 | 4×500ml | 4200rpm/3950×g | ||
17 | 96×5/7ml | 4200rpm/3950×g | ||
18 | 4×250ml | 4200rpm/3850×g | ||
19 | 6×250ml | 4200rpm/3850×g | ||
20 | 4×50/100ml | 5000rpm/4390×g
| ||
21 | 8×50/100ml | 4200rpm/3100×g | ||
16×10/15ml | 4200rpm/3100×g | |||
24×10/15ml | 4200rpm/3100×g | |||
32×10/15ml | 4200rpm/3100×g | |||
Elisa plate rotor | 22 | 4×2×96 Hole | 4200rpm/3910×g | |
23 | 2×2×96 Hole | 4200rpm/2530×g | ||
24 | 2×2×48 Hole | 4200rpm/1900×g | ||
Key Features:
◎High and low speed centrifuge, equipped with multiple types of rotors and stands, superior compatibility and multifunction
◎Controlled by computers, AC frequency variable motor drive, able to operate stably and quietly
◎Multi-color LCD display, user-friendly, clearer and more direct display. .
◎Able to configure centrifugal force, RCF and interchangeable, able to observe anytime
◎10 types of acceleration and deceleration control, the 9th control able to achieve free stopping time longer than 540s, able to satisfy the requirement of some special samples.
◎Second display for countdown less than one minute
◎Adopted electronic door lock, inner chamber protected by steel materials
◎Suitable for radioactive immunology, biochemistry, pharmaceutics, isolation and purification of blood samples.
Overall Specifications：
Model | H4-20K | |||
Max RPM (rpm) | 21000rpm | Chamber diameter | ≤ 65dB（A） | |
Max RCF | 30642×g | Noise Level | 420mm | |
Max Capacity | 4×750ml | Outer Dimensions | 560×460×400mm | |
Timer | 1min～99min | Outer packing Dimensions | 640×530×470mm | |
Revolutions/min | ±20r/min | Net weight | 45kg | |
Voltage | AC 220±22V 50Hz 10A | Gross weight | 50kg | |
Power | 750W | / | / | |
Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 12×1.5/2.2ml | 21000rpm/30642×g | |
2 | 16×1.5/2.2ml | 20000rpm/30230×g | ||
3 | 18×0.5ml | 18000rpm/20200×g | ||
4 | 10/12×5ml | 18000rpm/20800×g | ||
5 | 24×1.5/2.2ml | 16000rpm/23200×g | ||
6 | 12×10ml | 15000rpm/23120×g | ||
7 | 12×15ml /Sharp bottom | 10000rpm/9690×g | ||
8 | 6×50ml/Round bottom | 14000rpm/19885×g | ||
9 | 6×50ml/Sharp bottom | 13000rpm/18065×g | ||
10 | 2×8×0.2ml PCR Tube | 13500rpm/13880×g | ||
11 | 4×8×0.2ml PCR Tube | 13000rpm/13800×g | ||
12 | 8×50ml | 12000rpm/16000×g | ||
13 | 4×100ml | 11000rpm/13000×g | ||
14 | 6×100ml | 10000rpm/11960×g | ||
Swing-out Rotor | 15 | 4×750ml | 4200rpm/3950×g | |
16 | 4×500ml | 4200rpm/3950×g | ||
17 | 96×5/7ml | 4200rpm/3950×g | ||
18 | 4×250ml | 4200rpm/3850×g | ||
19 | 6×250ml | 4200rpm/3850×g | ||
20 | 4×50/100ml | 5000rpm/4390×g
| ||
21 | 8×50/100ml | 4200rpm/3100×g | ||
16×10/15ml | 4200rpm/3100×g | |||
24×10/15ml | 4200rpm/3100×g | |||
32×10/15ml | 4200rpm/3100×g | |||
Elisa plate rotor | 22 | 4×2×96 Hole | 4200rpm/3910×g | |
23 | 2×2×96 Hole | 4200rpm/2530×g | ||
24 | 2×2×48 Hole | 4200rpm/1900×g | ||
