Key Features:

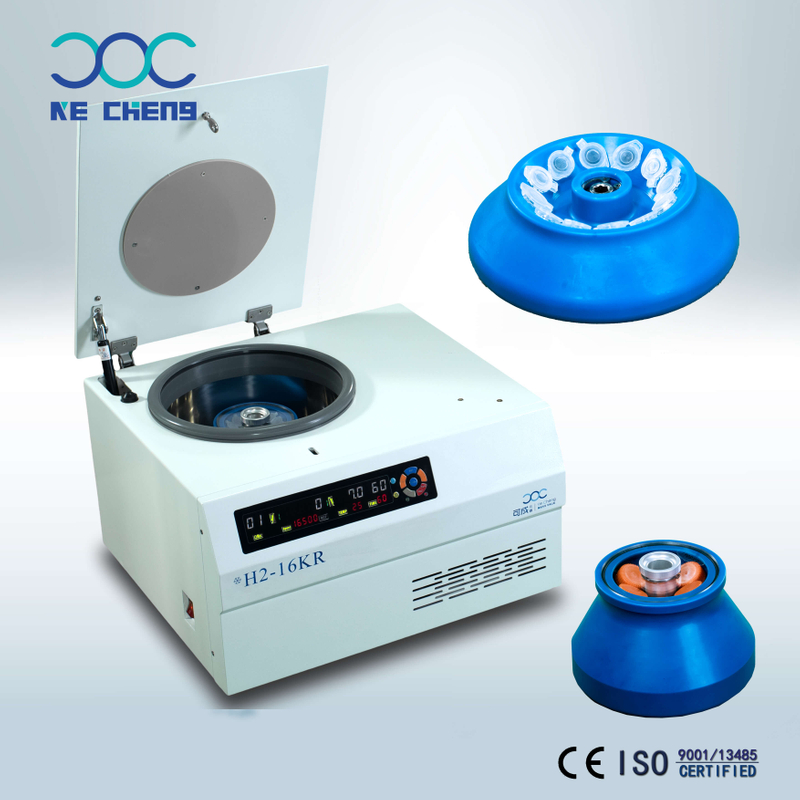

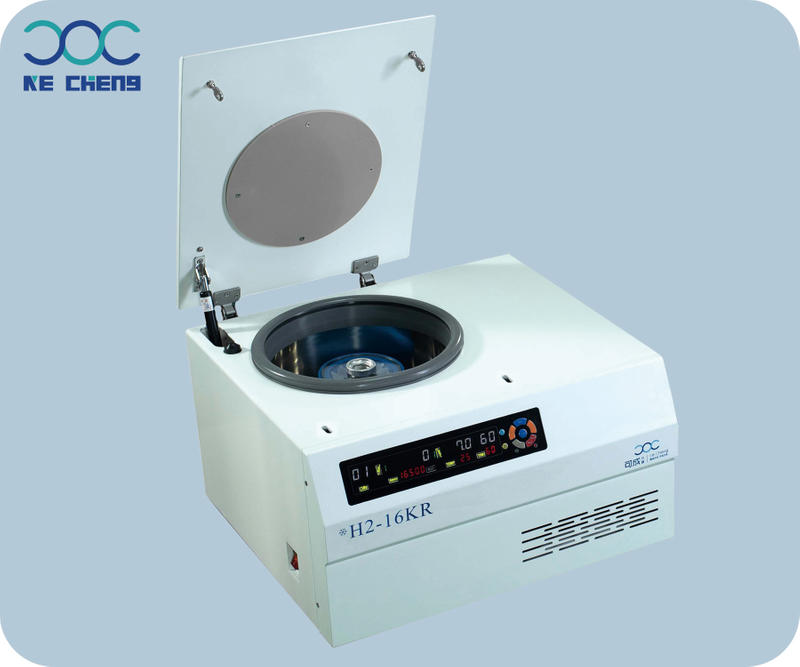

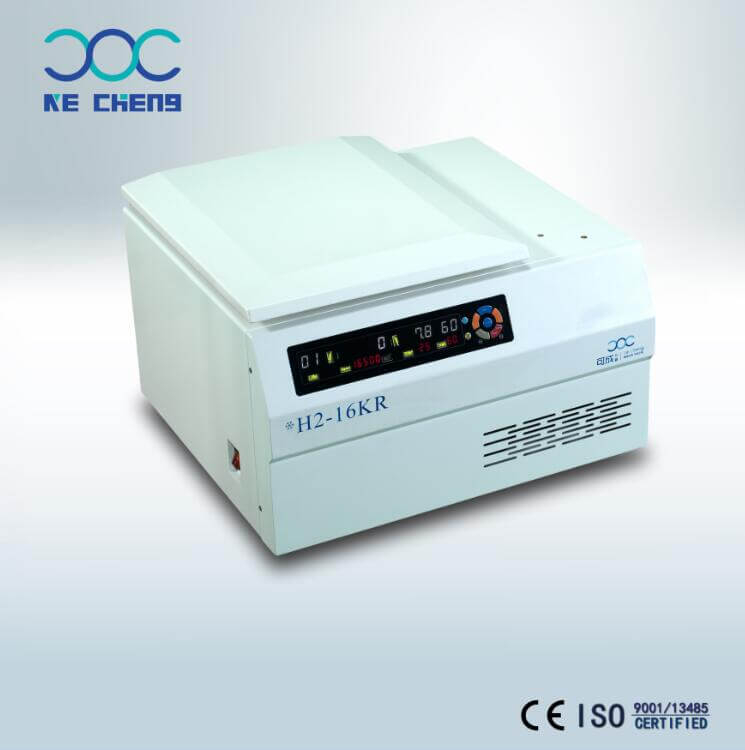

1. This model has small footprint and compact design, therefore widely used in molecular biology and chemistry, as well as PCR laboratories. Equipped with rotors of multiple capacities, higher performance to cost ratio.
2. Steel structure, centrifuge chamber made of stainless steel.
3. AC frequency variable motor drive, able to operate stably and quietly
4. Multi-color LED display, user-friendly, clearer and more direct display. .
5. Automatic recognition of rotors and speed limit control, making centrifuging safer
6. Able to change parameters anytime during operation without the need to stop the machine
7. Automatic calculation and display RCF value, RPM and centrifugal force at the same time.
8. 10 types of accelerating/decelerating control, 15 groups of programming space, user able to program and call program freely
9. With electronic door lock, enhanced safety
10. Imported high efficiency environmental friendly refrigerating system, able to maintain temperature under -4℃ during maximum RPM
11. Have pre-cooling function, freezing centrifuging is more convenient.
Technical Parameter：
CAT NO | H2-16KR | |||
Max RPM | 16500rpm | Voltage | AC 220±22V 50Hz 10A | |
Max RCF | 18757×g | Power | 800W | |
Max Capacity | 6×50ml | Noise Level | < 60dB（A） | |
Timer | 1min～99min | Rotor Diameter | φ250mm | |
Temp Range | -20℃～40℃ | Inner Dimensions | 480×560×360(mm) | |
Temp Accuracy | ±1.0℃ | Packaging Dimensions | 640×660×470(mm) | |
Revolutions/min | ±20r/min | Net weight | 70kg | |
/ | / | Gross weight | 80kg | |
Rotor | No | Capacity | MAX RPM/MAX RCF | |
Angle Rotor
| 1 | 12×1.5/2.2ml | 16500rpm/18360×g | |
2 | 10×5ml | 15000rpm/15940×g | ||
3 | 24×1.5/2.2ml | 14000rpm/18757×g | ||
4 | 12×10ml | 13000rpm/17370×g | ||
5 | 6×50ml/round bottom | 12000rpm/15285×g | ||
Key Features:
1. This model has small footprint and compact design, therefore widely used in molecular biology and chemistry, as well as PCR laboratories. Equipped with rotors of multiple capacities, higher performance to cost ratio.
2. Steel structure, centrifuge chamber made of stainless steel.
3. AC frequency variable motor drive, able to operate stably and quietly
4. Multi-color LED display, user-friendly, clearer and more direct display. .
5. Automatic recognition of rotors and speed limit control, making centrifuging safer
6. Able to change parameters anytime during operation without the need to stop the machine
7. Automatic calculation and display RCF value, RPM and centrifugal force at the same time.
8. 10 types of accelerating/decelerating control, 15 groups of programming space, user able to program and call program freely
9. With electronic door lock, enhanced safety
10. Imported high efficiency environmental friendly refrigerating system, able to maintain temperature under -4℃ during maximum RPM
11. Have pre-cooling function, freezing centrifuging is more convenient.
Technical Parameter：
CAT NO | H2-16KR | |||
Max RPM | 16500rpm | Voltage | AC 220±22V 50Hz 10A | |
Max RCF | 18757×g | Power | 800W | |
Max Capacity | 6×50ml | Noise Level | < 60dB（A） | |
Timer | 1min～99min | Rotor Diameter | φ250mm | |
Temp Range | -20℃～40℃ | Inner Dimensions | 480×560×360(mm) | |
Temp Accuracy | ±1.0℃ | Packaging Dimensions | 640×660×470(mm) | |
Revolutions/min | ±20r/min | Net weight | 70kg | |
/ | / | Gross weight | 80kg | |
Rotor | No | Capacity | MAX RPM/MAX RCF | |
Angle Rotor
| 1 | 12×1.5/2.2ml | 16500rpm/18360×g | |
2 | 10×5ml | 15000rpm/15940×g | ||
3 | 24×1.5/2.2ml | 14000rpm/18757×g | ||
4 | 12×10ml | 13000rpm/17370×g | ||
5 | 6×50ml/round bottom | 12000rpm/15285×g | ||
