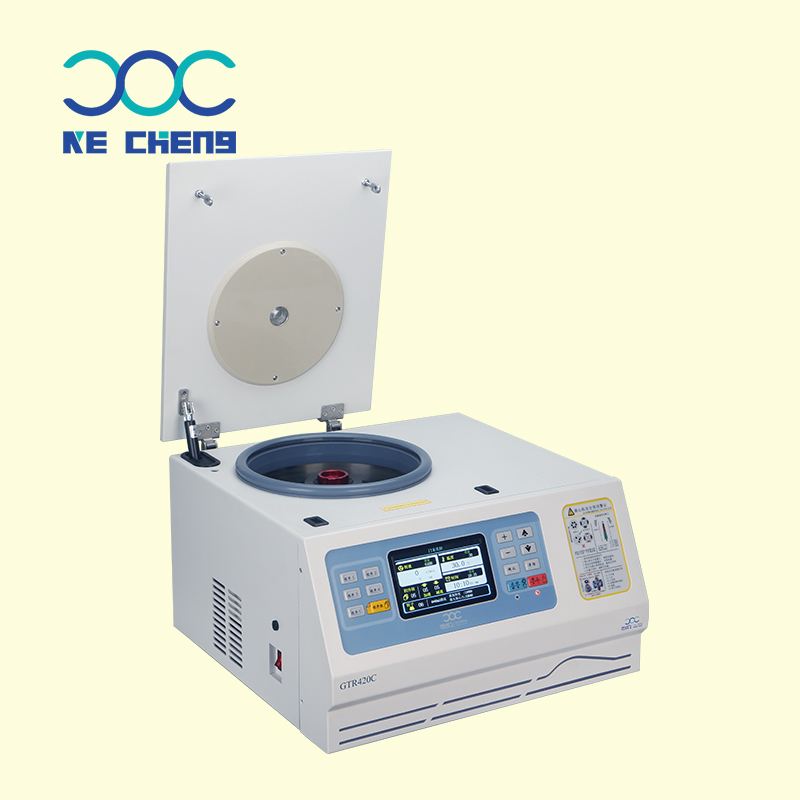

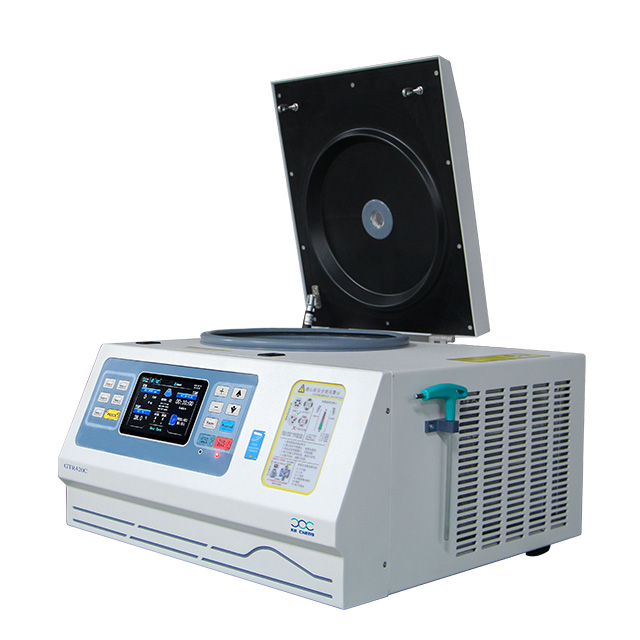

GTR420C
可成
Product Features：
Intelligent control system
◆ Auto electric door lock;
◆ Can store 99 groups of program and with shortcut key.
◆ Up to 10 level acceleration/ deceleration with Linear drive.
◆ With five groups of user-defined preset programs that can be called by one key.
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
◆ High and low speed universal centrifuge,high compatibility with multiple rotors.
Excellent kernel performance
◆ Microcomputer control with HD large LCD display,driven by AC frequency conversion brush-less motor.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ ECO friendly refrigeration system with Special thermal insulation process.
Careful and safe
◆ Automatic identification rotors and speed limit control.
◆ Full steel inner cavity protective cover.
◆ Over speed,over heat,unbalance protections and ensure safe operation.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge lid with one time press.
◆ Special noise reduction system .
Technical Parameter：
Model | GTR420C | ||
Max Speed | 21000rpm | Voltage | AC 220±22V 50Hz 15A |
Max RCF | 38427×g | Power | 1.5KW |
Max Capacity | 4×750ml | Noise Level | ≤ 50dB（A） |
Timer | 1s～99h59min59s | Size | 730×660×400mm |
Revolutions/min | ±10r/min | Net Weight | 120kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) | ||
Angle rotor | 1 | 1 | 12×5ml | 21000rpm | 29892×g | ||
2 | 2 | 24×1.5/2.0ml (D) | 20000rpm | 38457×g | |||
3 | 3 | 12×10ml | 16000rpm | 23068×g | |||
4 | 4 | 48×1.5/2.0ml | 16000rpm | 27375×g | |||
5 | 5 | 6×50ml (Conical/round bottom) Include： adapters 6*15mlconical bottom | 15000rpm | 25375×g | |||
6 | 6 | 4×100ml | 14000rpm | 22195×g | |||
7 | 7 | 12×15ml Conical bottom | 14000rpm | 22241×g | |||
8 | 8 | 8×8×0.2ml PCR Row | 14000rpm | 15032×g | |||
9 | 9 | 8×50ml(Conical/round bottom) Include： adapters 8*15mlconical bottom | 12000rpm | 15213×g | |||
10 | 10 | 6×100ml | 12500rpm | 18550×g | |||
Swing-out rotor | 11 | 11 | 4×250ml Round bucket | 4200rpm | 3352×g | ||
12 | 4×250ml Round bucket （with biosafety lid） | 4200rpm | 3352×g | ||||
13 | 4×250ml Square bucket（Match with adapters）Include： Adapters 4×4×50ml conical bottom Adapters 4×10×15ml conical bottom | 4200rpm | 3352×g | ||||
14 | Auto Uncap 2~7ml×64 （blood collection tubes） | 4200rpm | 3352×g | ||||
12 | 15 | Auto Uncap 2~7ml×104 （blood collection tubes） | 4200rpm | 3510×g | |||
16 | 4×500ml Round bucket | 4200rpm | 3510×g | ||||
17 | 4×500ml Round bucket （with biosafety lid） | 4200rpm | 3510×g | ||||
18 | 4×500ml Square bucket（Match with adapters） | 4200rpm | 3510×g | ||||
13 | 19 | 4×750ml Round bucket | 4200rpm | 3648×g | |||
20 | 4×750ml Square bucket （Include 1 set adapters optional） | 4200rpm | 3648×g | ||||
Swing-out rotor | 14 | 21 | Multifunctional three-in-one rotor 4×750ml match with below(Bucket/Basket) to use | ||||
Hanging bottle | 14 | 22 | 750ml Round bucket/with biosafety lid Include： Adapters 4×14×15ml conical bottom | 4500rpm | 4335×g | ||
Hanging Basket | 23 | Micro-plate 4×2×96 hole | 4500rpm | 4335×g | |||
Hanging bottle | 24 | Auto uncap 2~7ml×120（blood collection tubes） | 4500rpm | 4335×g | |||
Hanging bottle | 25 | 500ml blood bag（include blood bag adapters） | 4500rpm | 4335×g | |||
Swing-out rotor | 15 | 26 | Micro-plate 2×2×96 hole | 6500rpm | 5495×g | ||
Note：Rotors No. 14 and 15 are only used on the GTR420C model. Due to their high speed, they are strictly prohibited from being used on other models. | |||||||
* All products can be customized, designed and produced according to customer requirements.
