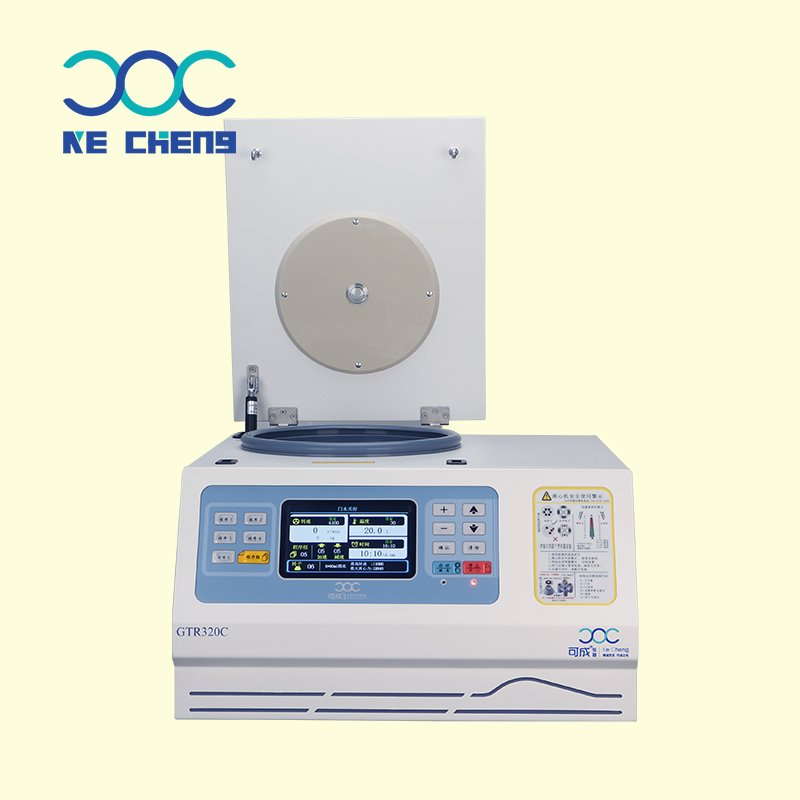

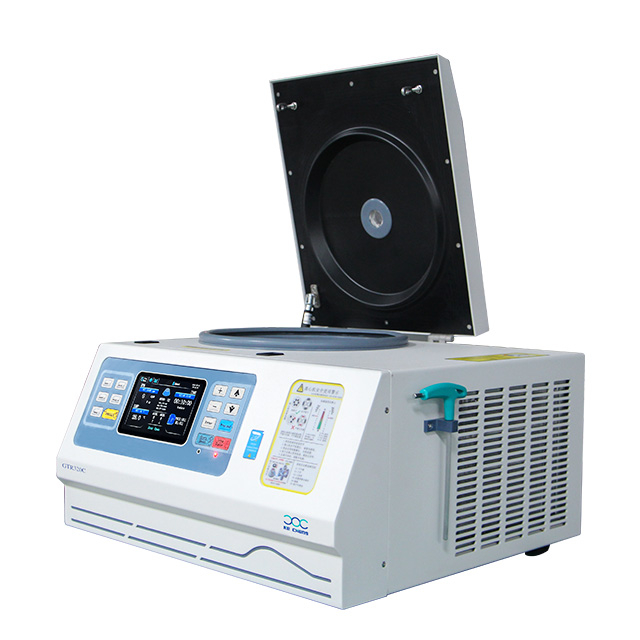

GTR320C
可成
Product Features：
Intelligent control system
◆ With five groups of user-defined preset programs that can be called by one key.
◆ Can store 99 groups of program and with shortcut key.
◆ Auto electric door lock;
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
◆ Up to 10 level acceleration/ deceleration with Linear drive.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ ECO friendly refrigeration system with Special thermal insulation process.
Careful and Safe
◆ With rotor automatic identification system.
◆ Full steel inner cavity protective cover.
◆ Over speed,over heat,unbalance protections and ensure safe operation.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge lid with one time press.
◆ Special noise reduction system ;
Technical Parameter：
Model | GTR320C | ||
Max Speed | 20000rpm | Voltage | AC 220±22V 50Hz 15A |
Max RCF | 31115×g | Power | 1200W |
Max Capacity | 4×250ml | Noise Level | ≤ 60dB（A） |
Timer | 1s～99h59min | Size | 560×570×370mm |
Revolutions/min | ±10r/min | Net Weight | 110kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | ||
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed （r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 16×1.5/2.0ml | 20000rpm | 30677×g |
2 | 2 | 24×1.5/2.0ml | 18000rpm | 31115×g | |
3 | 3 | 12x5ml | 16000rpm | 17344×g | |
4 | 4 | 12×10ml | 15000rpm | 20274×g | |
5 | 5 | 32×1.5/2.0ml | 16000rpm | 26044×g | |
6 | 6 | 48×1.5/2.0ml | 16000rpm | 27762×g | |
7 | 7 | 12×15ml/ Conical bottom | 14000rpm | 22241×g | |
8 | 8 | 6×50ml/round bottom | 13000rpm | 17146×g | |
9 | 9 | 6×50ml ( Conical/round bottom) | 12500rpm | 17608×g | |
10 | 10 | 4x100ml | 12000rpm | 17016×g | |
11 | 11 | 6×100ml | 12000rpm | 17548×g | |
12 | 12 | 8×50ml ( Conical/round bottom) | 10000rpm | 12611×g | |
13 | 13 | 60×1.5ml | 15000rpm | 18826×g | |
Swing-out rotor | 14 | 14 | 40×15ml(W) | 5500rpm | 5952×g |
15 | 4×100ml | 5000rpm | 3717×g | ||
16 | 4×250ml(Round bucket) | 5000rpm | 4751×g | ||
15 | 17 | 4×500ml(Oval bucket) | 5000rpm | 4751×g | |
18 | 4×250ml(Square bucket) | 5000rpm | 4751×g | ||
19 | Micro-plate 2x2x96 hole | 4500rpm | 2603×g |
* All products can be customized, designed and produced according to customer requirements.
