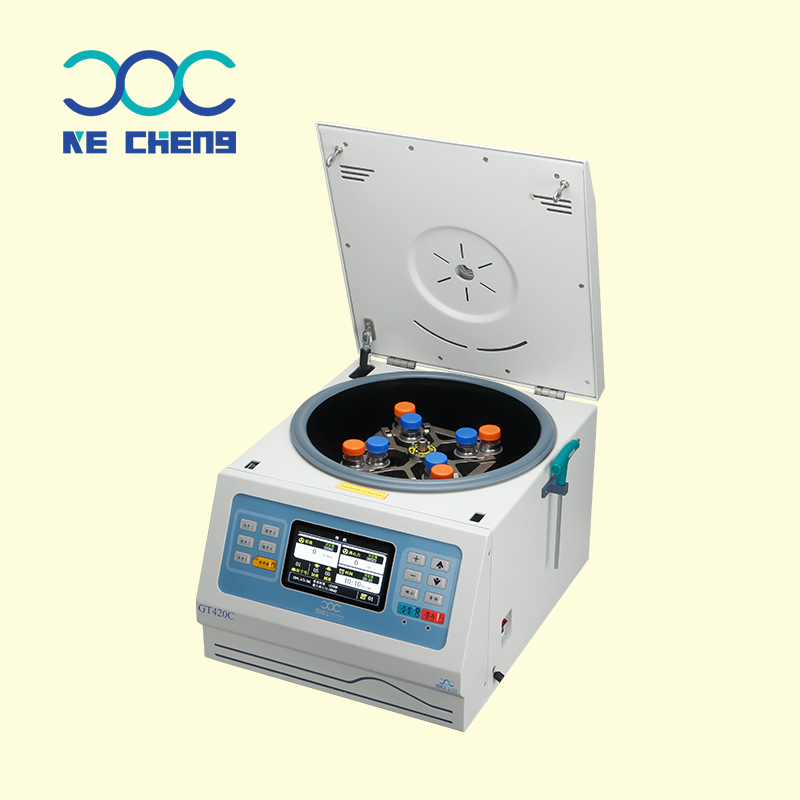

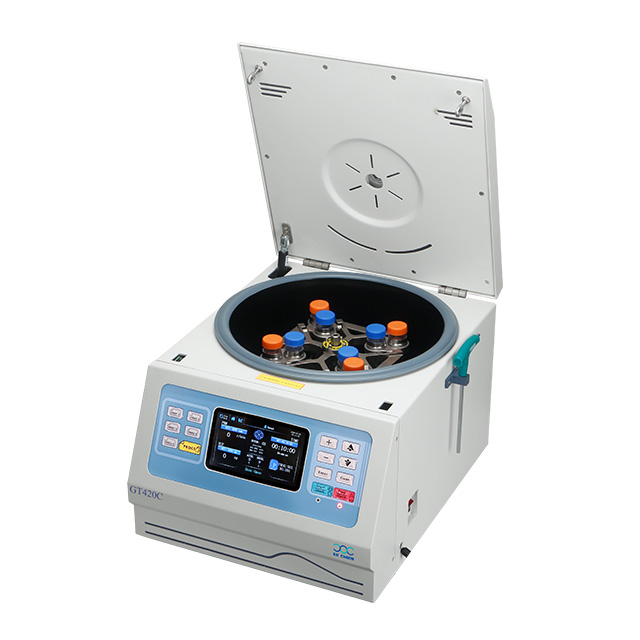

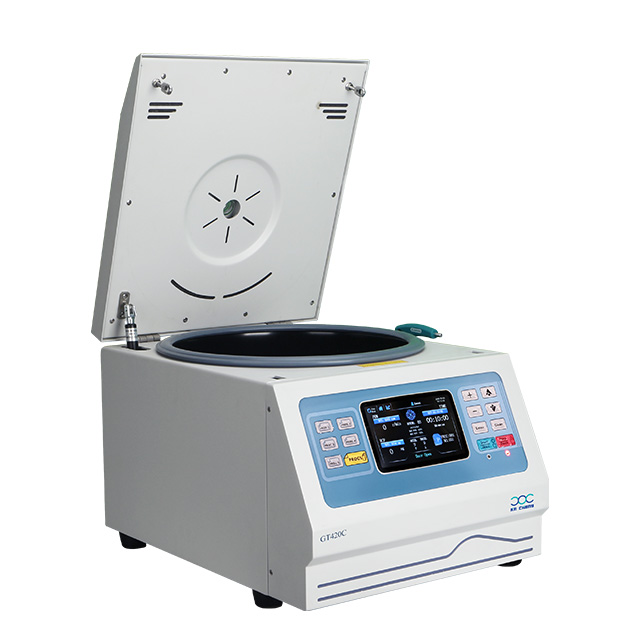

GT420C
可成
Product Features：
Intelligent control system
◆ High and low speed universal centrifuge with auto electric lid lock;
◆ With five groups of optional programs and can store 99 groups of program ;
◆ One key short-time centrifuge button.
◆ Up to 10 level acceleration/ deceleration with Linear drive.
Excellent kernel performance
◆ HD large LCD touch screen and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Special noise reduction system ;
Technical Parameter：
Model | GT420C | ||
Max Speed | 21000rpm | Voltage | AC 220±22V 50Hz 10A or custom |
Max RCF | 38427×g | Power | 1000W |
Max Capacity | 4×750ml | Noise Level | ≤ 62dB（A） |
Timer | 1s～99h59min59s | Size | 495×625×420mm |
Revolutions/min | ±10r/min | Net Weight | 70kg |
Rotor automatic recognition | Yes | ||
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 12×5ml | 21000rpm | 29892×g |
2 | 2 | 24×1.5/2.0ml(D) | 20000rpm | 38427×g | |
3 | 3 | 12×10ml | 15000rpm | 20274×g | |
4 | 4 | 48×1.5/2.0ml | 15000rpm | 24060×g | |
5 | 5 | 6×50ml(Conical/round bottom) | 14000rpm | 22014×g | |
6 | 6 | 4×100ml | 14000rpm | 22195×g | |
7 | 7 | 8×8×0.2ml PCR | 14000rpm | 15032×g | |
8 | 8 | 12×15ml(Conical bottom) | 14000rpm | 22241×g | |
9 | 9 | 8×50ml(Conical/round bottom) | 12000rpm | 15213×g | |
10 | 10 | 6×100ml | 12000rpm | 17548×g | |
Swing-out rotor | 11 | 11 | 4×250ml(Round bucket) | 4200rpm | 3352×g |
12 | 4×250ml(Round bucket)/ （with biosafety lid） | ||||
13 | 4×250ml(Square bucket) Include Adapter: 4x4x50ml（conical bottom) 4x10x15ml（conical bottom) | ||||
14 | Auto uncap 64×2-7ml(blood collection tube) | ||||
12 | 15 | Auto uncap 104×2-7ml(blood collection tube) | 4200rpm | 3510×g | |
16 | 4×500ml(Round bucket) | ||||
17 | 4×500ml(Round bucket)/ （with biosafety lid） | ||||
18 | 4×500ml(Square bucket) | ||||
13 | 19 | 4×750ml(Round bottom) | 4200rpm | 3648×g | |
20 | 4×750ml(Square bucket) | 4200rpm | 3648×g | ||
14 | 21 | Swing-out rotor body 4x750ml | |||
Bucket | 14 | 22 | 4×750ml(Round bottom)/ （with biosafety lid） Include Adapter: 4x7x50ml（conical bottom) 4x14x15ml（conical bottom) | 4200rpm | 3776×g |
Bucket | 23 | Micro-plate 4×2×96 hole | |||
Bucket | 24 | Auto uncap 120×2-7ml(blood collection tube) | |||
Bucket | 25 | 500ml blood bag Adapter | |||
Swing-out rotor | 15 | 26 | Micro-plate 2x2x96 hole | 4200rpm | 2267×g |
* All products can be customized, designed and produced according to customer requirements.
