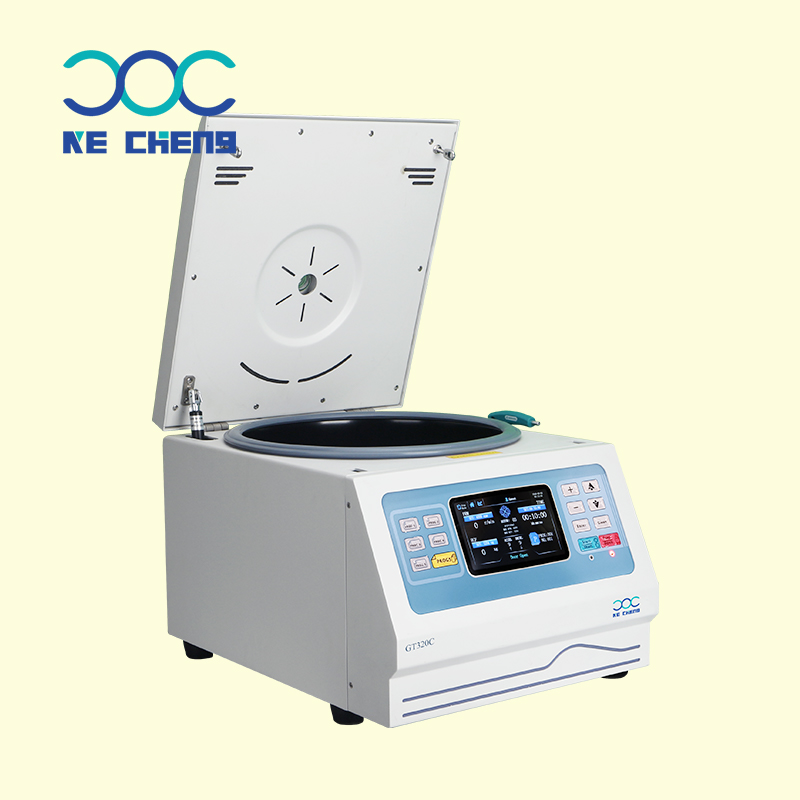

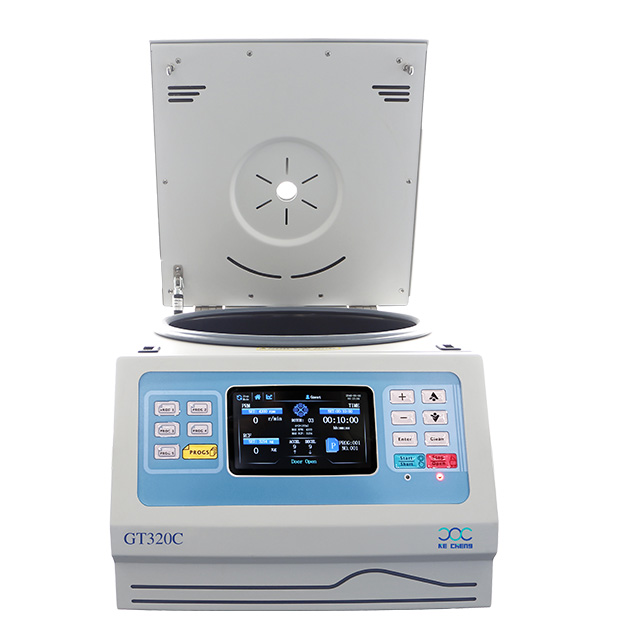

GT320C
可成
Product Features：
Intelligent control system
◆ Equipped with five groups of programs.
◆ Program group shortcut key, large storage space, can store 99 program groups, convenient to call at any time.
◆ Automatic electronic door lock.
◆ One key short-time centrifuge button.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gear acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
Technical Parameter：
Model | GT320C | ||
Max Speed | 20000rpm | Voltage | AC 220±22V 50Hz 15A |
Max RCF | 31115×g | Noise Level | ≤ 60dB（A） |
Max Capacity | 4×250ml | Size | 560×570×370mm |
Timer | 1s～99h59min | Net Weight | 110kg |
Revolutions/min | ±10r/min | Rotor automatic recognition | Yes |
Power | 1200W | ||
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed （r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 16×1.5/2.0ml | 20000rpm | 30677×g |
2 | 2 | 24×1.5/2.0ml | 18000rpm | 31115×g | |
3 | 3 | 12x5ml | 16000rpm | 17344×g | |
4 | 4 | 12×10ml | 15000rpm | 20274×g | |
5 | 5 | 32×1.5/2.0ml | 16000rpm | 26044×g | |
6 | 6 | 48×1.5/2.0ml | 16000rpm | 27762×g | |
7 | 7 | 12×15ml/Conical bottom | 14000rpm | 22241×g | |
8 | 8 | 6×50ml/Round bottom) | 13000rpm | 17146×g | |
9 | 9 | 6×50ml (Conical/round bottom) | 12500rpm | 17608×g | |
10 | 10 | 4x100ml | 12000rpm | 17016×g | |
11 | 11 | 6×100ml | 12000rpm | 17548×g | |
12 | 12 | 8×50ml(Conical/round bottom) | 10000rpm | 12611×g | |
13 | 13 | 60×1.5ml | 15000rpm | 18826×g | |
Swing-out rotor | 14 | 14 | 40×15ml(W) | 5500rpm | 5952×g |
15 | 15 | 4×100ml | 5000rpm | 3717×g | |
16 | 16 | 4×250ml(round bucket) | 5000rpm | 4751×g | |
17 | 4×500ml(oval bucket) | 5000rpm | 4751×g | ||
18 | 4×250ml(Square bucket) | 5000rpm | 4751×g | ||
17 | 19 | Micro-plate 2x2x96 hole | 4500rpm | 2603×g |
* All products can be customized, designed and produced according to customer requirements.
