Product Features：
Intelligent Control System
◆ With five groups of optional programs and can store 99 program groups ;
◆ Electric lid lock;
◆ Long press the start/short-time key to realize instantaneous centrifugation.
◆ Up to 10 level acceleration/ deceleration with Linear drive.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system ;
Technical Parameter：

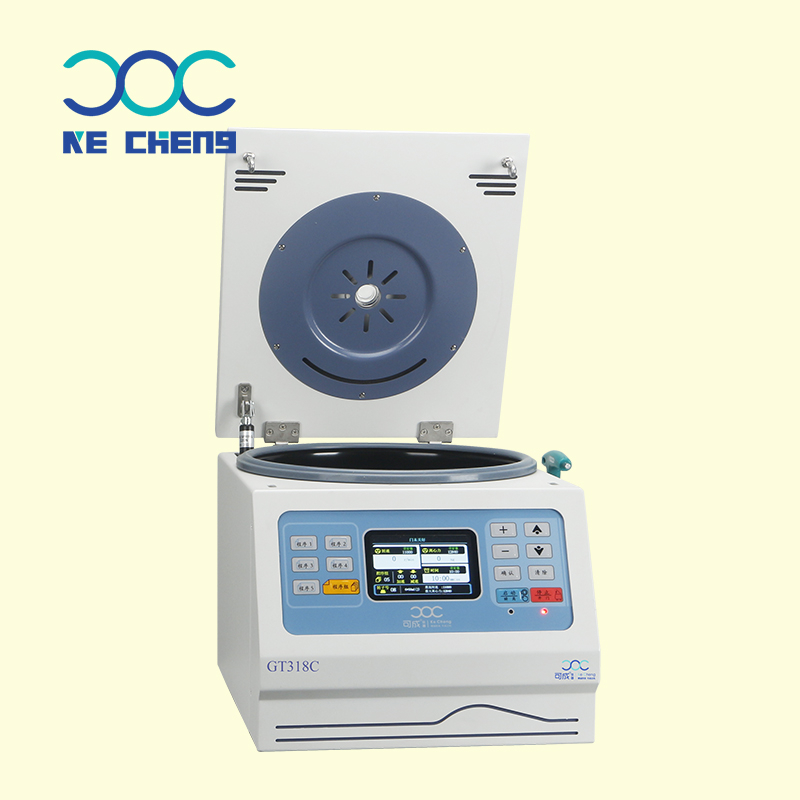

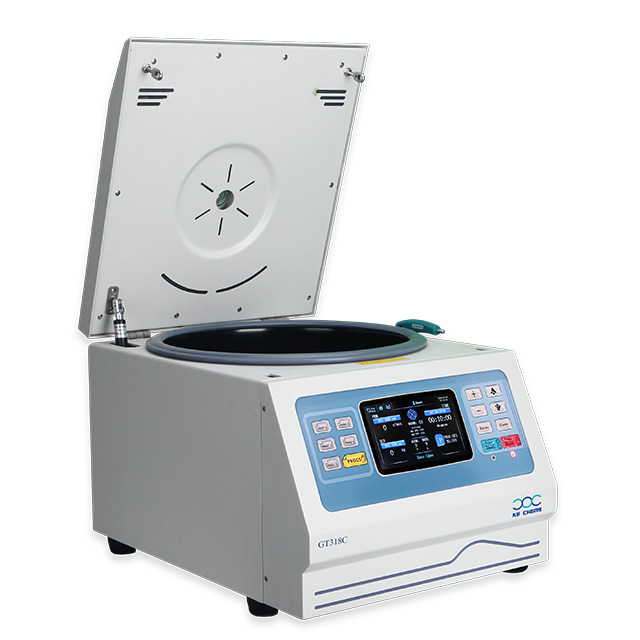

Model | GT318C | ||
Max Speed | 18000rpm | Power | 1200W |
Max RCF | 31115×g | Noise Level | ≤ 60dB（A） |
Max Capacity | 4×100ml | Dimensions (L x W x H) | 480×360×330(mm) |
Timer | 1s～99h59min | Net Weight | 38kg |
Revolutions/min | ±10r/min | Automatic rotor identification | Yes |
Voltage | AC 220±22V 50Hz 15A or custom | / | / |
Rotor Parameters：
Rotor Name | Rotor No. | NO. | Rotor Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 24×1.5/2.0ml | 18000rpm | 31115×g |
2 | 2 | 12×5ml | 15000rpm | 18306×g | |
3 | 3 | 32×1.5/2.0ml | 14000rpm | 19940×g | |
4 | 4 | 8×8×0.2ml PCR | 14000rpm | 15032×g | |
5 | 5 | 48×1.5/2.0ml | 13000rpm | 18327×g | |
6 | 6 | 12×10ml | 13000rpm | 15228×g | |
7 | 7 | 6×50ml(Round bottom) | 13000rpm | 17146×g | |
8 | 8 | 6×50ml( Conical/round bottom) | 12000rpm | 16227×g | |
9 | 9 | 12×15ml (Conical bottom) | 11000rpm | 13730×g | |
10 | 10 | 4×100ml | 11000rpm | 14298×g | |
Swing-out rotor | 11 | 11 | 24×1.5/2.0ml | 13000rpm | 16816×g |
12 | 12 | 4×100ml | 4500rpm | 3010×g | |
13 | 13 | Micro-plate 2×2×96 hole | 4000rpm | 2057×g | |
14 | 14 | 8×50ml( Conical bottom) | 4000rpm | 2680×g |
*All products can be customized, designed and produced according to customer requirements.
