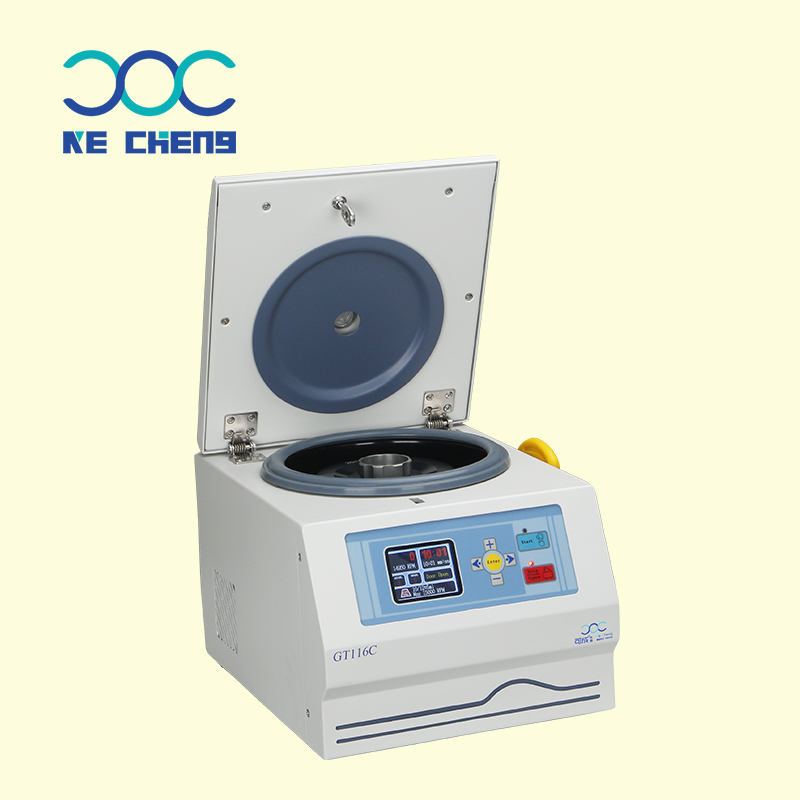

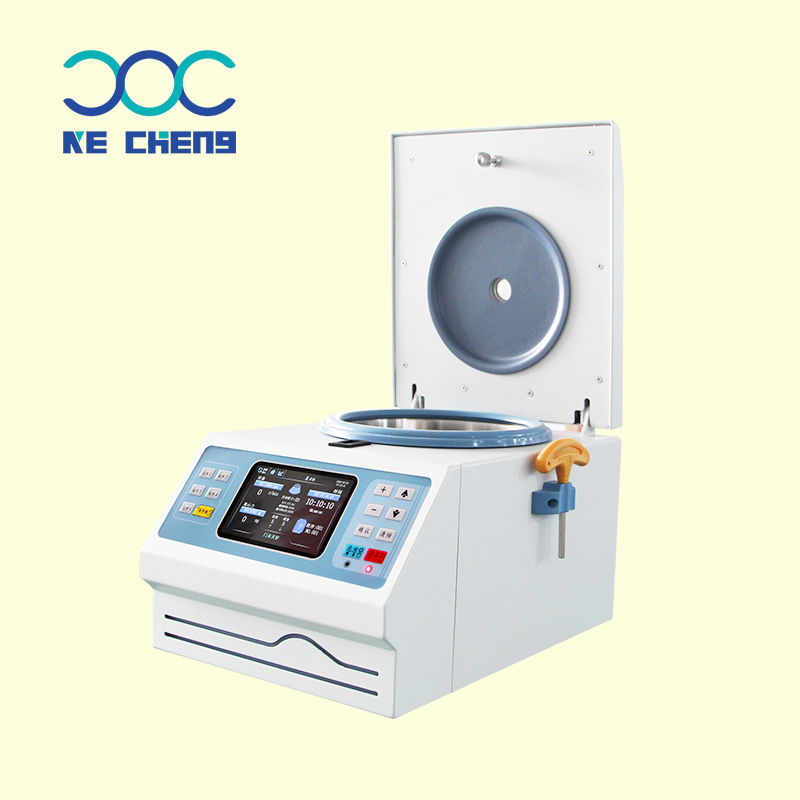

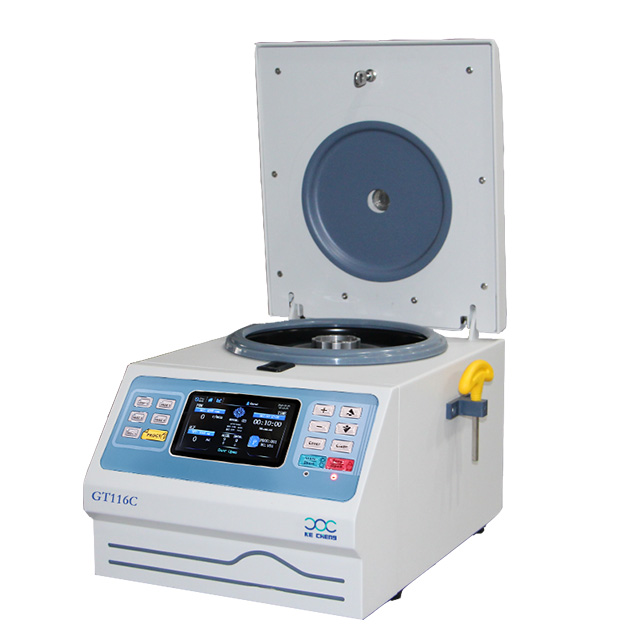

GT116C
可成
Product Features:
◆ Microcomputer control with HD LCD display,driven by AC frequency conversion motor.
◆Up to 10 level deceleration and acceleration control with 40 sets program groups.
◆Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment and low noise.
◆ Food grade silicone integrated seal ring, beautiful, high temperature resistant and Corrosion resistance.
◆ With over speed, imbalance, door cover protection, over current, rotor fault etc protection .
◆ Electronic traction structure design with ultra-high safety protection is adopted.
Technical Parameter:
Model | GT116C | ||
Max Speed | 16500rpm | Voltage | AC 220±22V 50Hz 10A or custom |
Max RCF | 21615×g | Power | 350W |
Max Capacity | 12×5ml | Noise Level | ≤ 62dB(A) |
Timer | 1s~99min59s | Size | 360×270×250 (mm) |
Revolutions/min | ±10r/min | Net Weight | 19kg |
Rotor Parameter:
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed(r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 16×1.5/2.0ml | 16500rpm | 20880×g |
2 | 2 | 12×5ml | 15000rpm | 18036×g | |
3 | 3 | 24×1.5/2.0ml | 15000rpm | 21615×g | |
4 | 4 | 4×8×0.2ml PCR Row | 15000rpm | 14866×g | |
5 | 5 | 8×8×0.2ml PCR Row | 14000rpm | 15032×g | |
6 | 6 | Capillary rotor 24 hole | 12000rpm | 13845×g |
* All products can be customized, designed and produced according to customer requirements.
