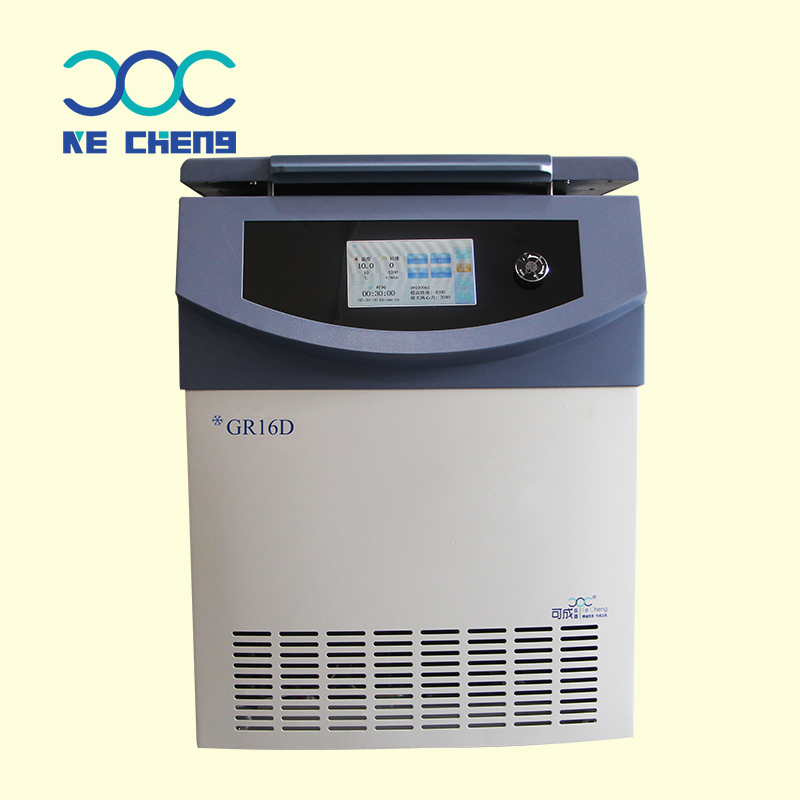

GR16D Floor High Speed Refrigerated Centrifuge
Technical Parameter:
◎ 3D HD LCD full touch screen plus multi-function knob Home key .
◎ 15 kinds of accelerate and decelerate control.
◎ The user can set the password to lock the host or parameters to prevent misoperation.
◎ One key precooling and instantaneous centrifugation functions are provided.
◎ Can store 99 groups of program , 99 use records and fault records can be traced.
◎ Two timing modes are available, starting timing and reaching speed timing.
◎High torque variable frequency motor, free of maintenance.
◎ Ultra quiet refrigeration compressor unit, the temperature can be controlled below - 5 ℃ under the upper limit speed.
◎ With Food grade integrated silicone sealing ring and high quality hydraulic rod.
◎ Full automatic identification system and electronic self-priming door lock.
◎ The humanized design is convenient and quick to operate, the parameter setting is directly digital input, and the intelligent status prompt is accurate to one digit.
◎ Over speed, over temperature, over current, over voltage, and over temperature etc protection functions.
◎ Unique noise reduction system.
Technical Parameter：
Model | GR16D | ||
Max Speed | 16000rpm | Voltage | AC 220±22V 50Hz 20A or custom |
Max RCF | 27762×g | Power | 2300W |
Max Capacity | 4×1000ml | Noise Level | 65dB（A） |
Timer | 1s~99h59min59s | Size | 560×750×820mm |
Revolutions/min | ±10r/min | Net Weight | 155Kg |
Temp Range | -20℃~40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 48×1.5/2.0ml（Double row） | 16000rpm | 27762×g |
2 | 2 | 30×1.5/2.0ml（Single row） | 15500rpm | 26859×g | |
3 | 3 | 18×5ml（Single row） | 15000rpm | 22010×g | |
4 | 4 | 8×50ml(Conical/round bottom) | 12000rpm | 18160×g | |
5 | 5 | 6×100ml | 11000rpm | 14745×g | |
6 | 6 | 12×50ml(Conical/round bottom) | 10000rpm | 15383×g | |
7 | 7 | 6×250ml | 10000rpm | 15093×g | |
Swing-out rotor | 8 | 8 | 4×1000ml | 4200rpm | 3940×g |
Adapter | 8 | a | Micro-plate basket 4×2×96 hole | 4200rpm | 3940×g |
b | 4×10×50ml(Conical/round bottom) | ||||
c | 4×24×15ml(Conical/round bottom) | ||||
d | 4×750ml (Round bottom) | ||||
e | 4×500ml (Round bottom) | ||||
f | 4×500ml (Conical bottom) | ||||
g | 4×250ml (Conical bottom) | ||||
h | 8×250ml (round bottom) | ||||
i | 140×10ml(blood collection tube） | ||||
j | 196×2-7ml(blood collection tube） |
* All products can be customized, designed and produced according to customer requirements.
