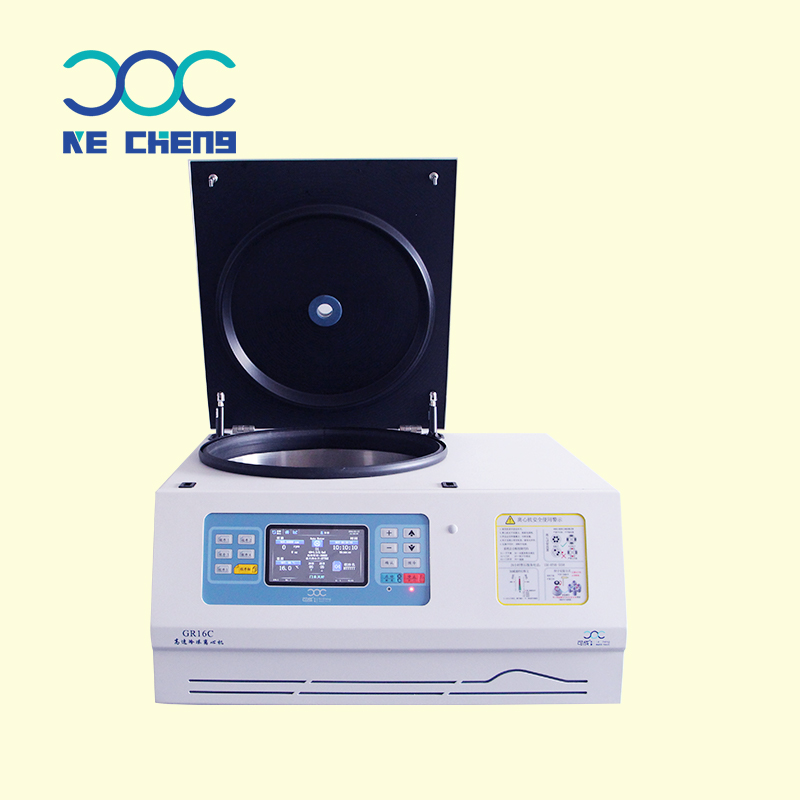

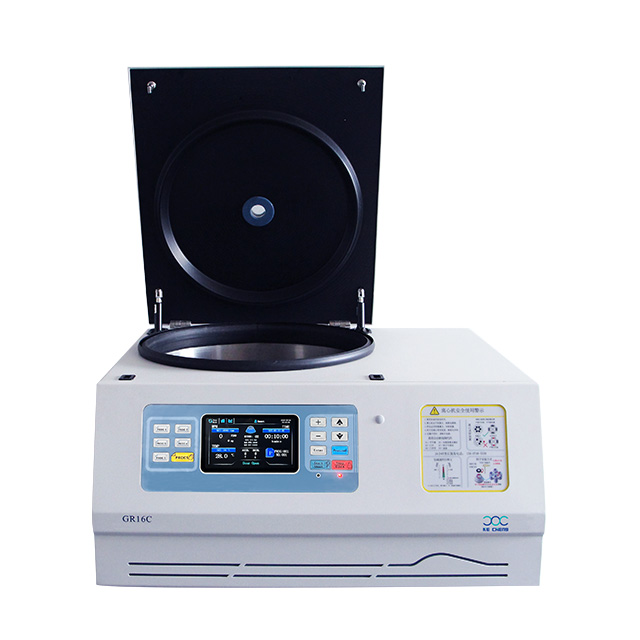

GR16C
Product Features：
Intelligent control system
◆ Automatically calculate RCF,PRM and RCF switching freely.
◆ Can store 99 groups of program and with shortcut key.
◆ Up to 10 level acceleration/ deceleration with Linear drive.
◆ With five groups of user-defined preset programs that can be called by one key.
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
Excellent kernel performance
◆ Microcomputer control with HD large LCD display,driven by AC frequency conversion brush-less motor.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Imported energy-efficient ECO friendly refrigeration system.
Careful and safe
◆ With rotor automatic identification system.
◆ User management function setting the password to lock the machine.
◆ Full steel inner cavity protective cover.
◆ Over speed,over heat,unbalance protections and ensure safe operation.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge lid with one time press.
◆ Special noise reduction system .
Technical Parameter：
Model | GR16C | ||
Max Speed | 16000rpm | Voltage | AC 220±22V 50Hz 20A |
Max RCF | 27375×g | Power | 2300W |
Max Capacity | 4×1000ml | Noise Level | 65dB（A） |
Timer | 1s~99h59min59s | Size | 770×700×435mm |
Revolutions/min | ±10r/min | Net Weight | 140Kg |
Temp Range | -20℃~40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 48×1.5/2.0ml（Double row） | 16000rpm | 27375×g |
2 | 2 | 30×1.5/2.0ml（Single row） | 15500rpm | 26859×g | |
3 | 3 | 18×5ml（Single row） | 15000rpm | 22010×g | |
4 | 4 | 8×50ml(Conical/round bottom) | 12000rpm | 15213×g | |
5 | 5 | 6×100ml | 12500rpm | 18550×g | |
6 | 6 | 12×50ml (Conical/round bottom) | 5500rpm | 15383×g | |
7 | 7 | 6×250ml | 10000rpm | 15093×g | |
8 | 8 | 40x15ml(w) | 10000rpm | 5073 ×g | |
Swing-out rotor | 9 | 9 | 4×750ml | 4200rpm | 3648×g |
10 | 10 | 4×1000ml | 4200rpm | 3983×g | |
4×1000ml (with biosafety lid) | 4500rpm | 4573×g | |||
Adapter | 10 | a | Micro-plate bucket 4×2×96 hole | 4500rpm | 4573×g |
b | 4×10×50ml (Conical/round bottom) | ||||
c | 4×24×15ml (Conical/round bottom) | ||||
d | 4×750ml(Round bottom) | ||||
e | 4×500ml(Round bottom) | ||||
f | 4×500ml(Conical bottom) | ||||
j | 4×250ml(Conical bottom) | ||||
h | 8×250ml(round bottom) | ||||
i | 140×10ml(blood collection tube) | ||||
j | 196×2~7ml(blood collection tube) | ||||
Swing-out rotor | 11 | 11 | 4×750ml | 4200rpm | 3648×g |
12 | 12 | 4×750ml | 4200rpm | 3648×g |
* All products can be customized, designed and produced according to customer requirements.
