GDR525C
可成

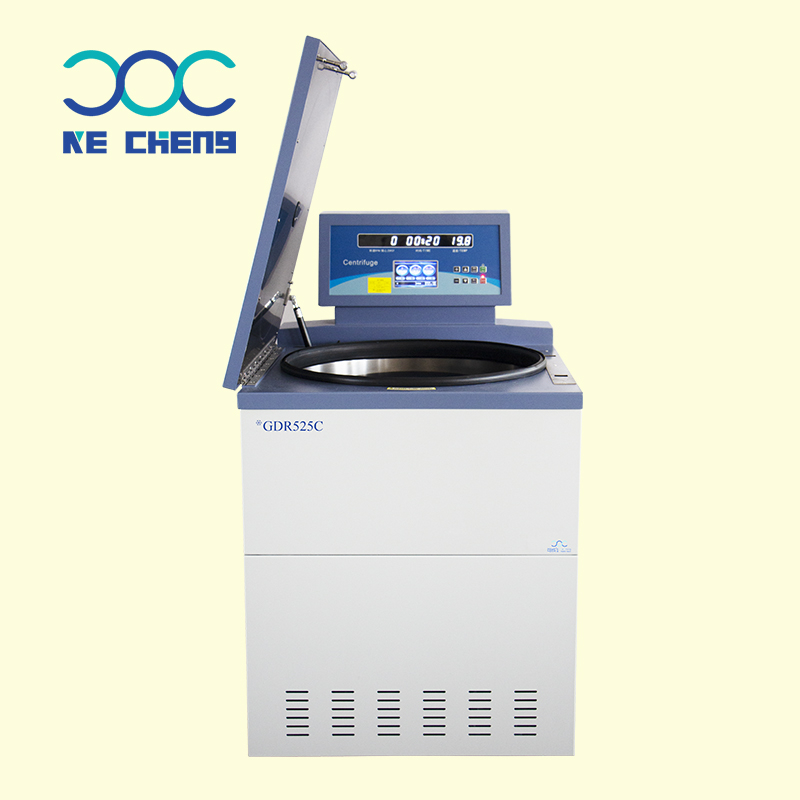

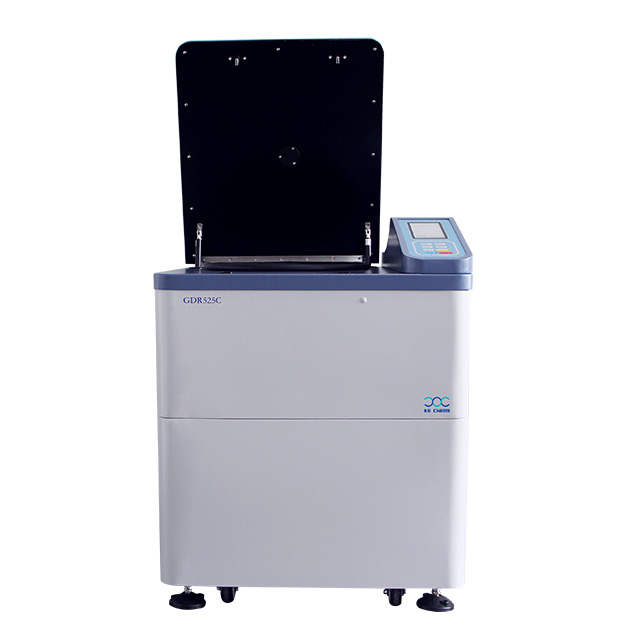

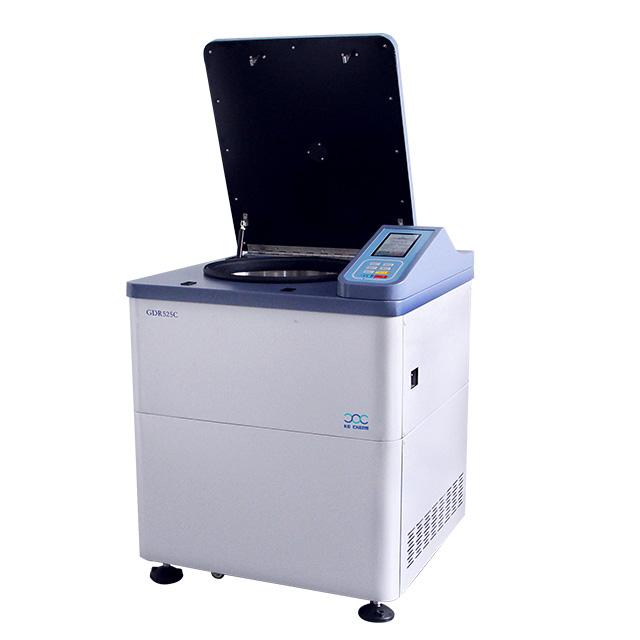

GDR525C Floor Large Capacity High Speed Refrigerated Centrifuge
Product Features：
Intelligent control system
◆High compatibility with multiple rotors.
◆ RCF and speed separately and switching free,automatically calculate RCF.
◆ Up to 99 program groups and parameters can be revised during operation without stopping.
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gears acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Energy-efficient ECO friendly refrigeration system with special thermal insulation inside the machine .
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
Technical Parameter：
Model | GDR525C | ||
Max Speed | 25000rpm | Voltage | AC 220±22V 50Hz 35A |
Max RCF | 64800×g | Power | 4500W |
Max Capacity | 4×1000ml | Noise Level | ≤ 65dB（A） |
Timer | 1s～23h59min | Size | 1250×840×710 (mm) |
Revolutions/min | ±10r/min | Net Weight | 252kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 24×1.5/2.0ml(titanium alloy) | 25000rpm | 64800×g |
2 | 2 | 18×10ml | 23000rpm | 60460×g | |
3 | 3 | 8×50ml Round bottom/（titanium alloy） | 21000rpm | 52356×g | |
4 | 4 | 8×50ml(round bottom) | 20000rpm | 46420×g | |
5 | 5 | 6×50ml(Conical bottom) | 20000rpm | 46420×g | |
6 | 6 | 6×250ml | 14000rpm | 30074×g | |
7 | 7 | 8×100ml | 13000rpm | 19830×g | |
8 | 8 | 6×500ml | 10000rpm | 17700×g | |
9 | 9 | 4×1000ml | 8000rpm | 12040×g |
* All products can be customized, designed and produced according to customer requirements.
