GDR421C
可成

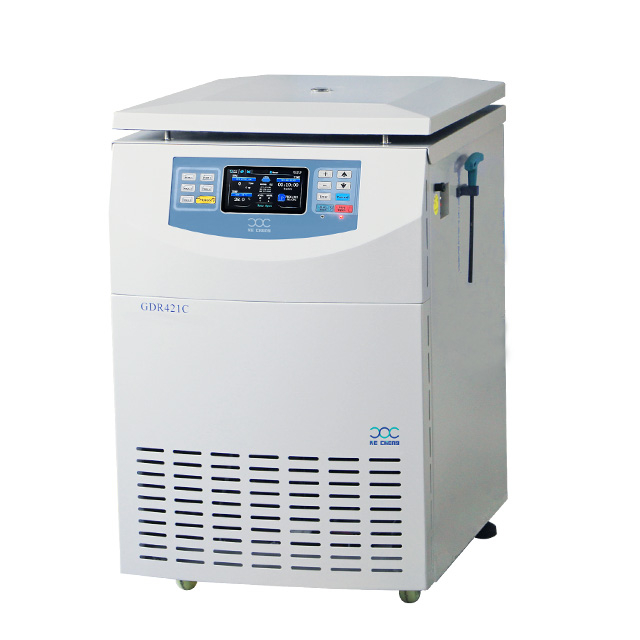

GDR421C Large Capacity High Speed Refrigerated Centrifuge
Product Features：
Intelligent control system
◆ RCF and speed separately and switching free,automatically calculate RCF.
◆ Up to 99 program groups and parameters can be revised during operation without stopping.
◆ The electric door lock can choose whether to open the chamber door automatically after the centrifugal operation
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gears acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
◆Energy-efficient ECO friendly refrigeration system with special thermal insulation inside the machine .
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
Technical Parameter：
Model | GDR421C | ||
Max Speed | 23000rpm | Voltage | AC 220±22V 50Hz 15A |
Max RCF | 35500×g | Power | 1300W |
Max Capacity | 4×750ml | Noise Level | ≤ 65dB（A） |
Timer | 1s～23h59min | Size | 820×660×520 (mm) |
Revolutions/min | ±10r/min | Net Weight | 139kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 12×1.5ml | 23000rpm | 35500×g |
2 | 2 | 16×1.5ml | 21000rpm | 30230×g | |
3 | 3 | 12×5ml | 18500rpm | 23000×g | |
4 | 4 | 24×1.5/2.0ml | 18000rpm | 29650×g | |
5 | 5 | 12×10ml | 17000rpm | 29700×g | |
6 | 6 | 48×1.5/2.0ml | 16000rpm | 26760×g | |
7 | 7 | 6×50ml(Round bottom) | 16000rpm | 23430×g | |
8 | 8 | 6×50ml(Conical/round bottom) | 14000rpm | 20800×g | |
9 | 9 | 4×100ml | 13000rpm | 18160×g | |
10 | 10 | 12×15ml (Conical bottom) | 13000rpm | 19177×g | |
11 | 11 | 6×100ml | 12500rpm | 18550×g | |
12 | 12 | 8×50ml (Conical/round bottom) | 12000rpm | 16000×g | |
13 | 13 | 4×250ml | 12000rpm | 21630×g | |
14 | 14 | 4×500ml | 8000rpm | 10375×g | |
Swing-out rotor | 15 | 15 | 96×2~7ml（Blood collection tube） | 4000rpm | 3580×g |
16 | 4×750ml （with biosafety lid） | 4000rpm | 3580×g | ||
17 | 4×750ml | 4000rpm | 3580×g | ||
18 | 4×500ml （with biosafety lid） | 4000rpm | 3580×g | ||
19 | 4×500ml | 4000rpm | 3580×g | ||
16 | 20 | 4×250ml （with biosafety lid） | 4000rpm | 3500×g | |
21 | 4×250ml | 4000rpm | 3500×g | ||
22 | 6×250ml | 4000rpm | 3500×g | ||
Swing-out rotor | 17 | 23 | Micro-plate 4×2×96 hole | 4000rpm | 3550×g |
Swing-out rotor (Square basket) | 24 | Square basket include： Adapter 4×10×15ML(Conical bottom) Adapter 4×4×50ML(Conical bottom) | 4000rpm | 3550×g |
* All products can be customized, designed and produced according to customer requirements.
