DT36C
可成

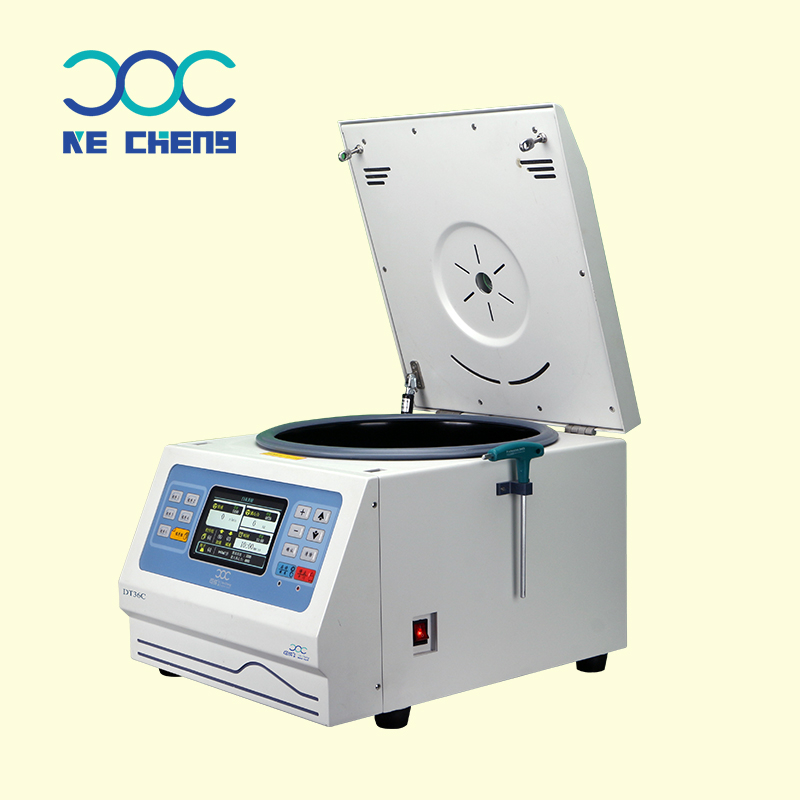

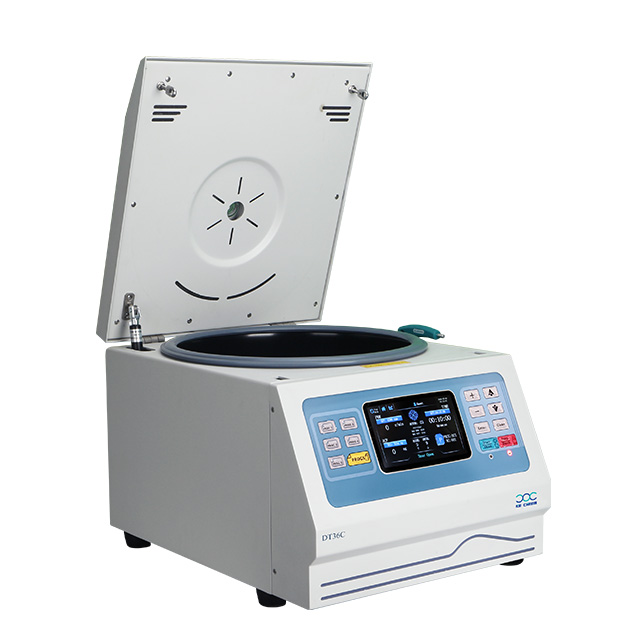

DT36C Low Speed Table Centrifuge
Product Features：
Intelligent control system
◆ Equipped with five groups of programs.
◆ Program group shortcut key, can store 99 program groups, convenient to call at any time.
◆ Automatic electronic door lock.
◆ With instantaneous and continuous centrifugation functions.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gear acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ Special noise reduction system.
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ Equipped with rotor lid that can be quickly locked for easy use.
Technical Parameter：
Model | DT36C | ||
Max Speed | 6500rpm | Power | 550W |
Max RCF | 5091×g | Noise Level | ≤ 62dB（A） |
Max Capacity | 4×250ml | Size | 545×330×365 (mm) |
Timer | 1s～99h59min | Net Weight | 48kg |
Revolutions/min | ±10r/min | Rotor automatic recognition | Yes |
Voltage | AC 220±22V 50Hz 10A or custom | / | / |
Rotor Parameter：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor（W) | 1 | 1 | 6×50ml | 6500rpm | 5091×g |
2 | 2 | 40×15ml | 5000rpm | 4919×g | |
Swing-out rotor body | 3 | 3 | It shall be used together with pipe rack | ||
Pipe rack | 3 | 4 | 4×50ml | 4200rpm | 3254×g |
5 | 4×100ml | ||||
6 | 8×50ml | 4200rpm | 3254×g | ||
7 | 8×100ml | ||||
8 | 16×10/15ml Optional | ||||
9 | 24×10/15ml Optional | ||||
10 | 32×10/15ml Optional | ||||
11 | 48×2~7ml（Blood collection tube） | ||||
12 | 64×5ml（Blood collection tube） | ||||
Swing-out rotor | 4 | 13 | 4×250ml(Round bottom) | 4200rpm | 3352×g |
14 | 4×250ml(Round bottom)/ （with biosafety lid） | 4200rpm | 3352×g | ||
15 | Auto uncap 64×2~7ml(Blood collection tube) | 4200rpm | 3352×g | ||
Swing-out rotor | 4 | 16 | 4×250ml square bucket (used with adapter) | 4200rpm | 3352×g |
Adapters | 4 | a | 4×1×250ml Flat bottom | 4200rpm | 3352×g |
b | 4×2×100ml Round bottom | 4200rpm | 3352×g | ||
c | 4×4×50ml Conical bottom | 4200rpm | 3352×g | ||
d | 4×10×10/15ml Conical bottom | 4200rpm | 3352×g | ||
e | 4×12×10ml High speed Round bottom | 4200rpm | 3352×g | ||
f | 4×12×5ml High speed round bottom buckle cap tube | 4200rpm | 3352×g | ||
g | 4×16×1.5/2ml | 4200rpm | 3352×g | ||
h | 4×12×10ml Blood collection tube | 4200rpm | 3352×g | ||
i | 4×18×2-7ml Blood collection tube | 4200rpm | 3352×g | ||
Swing-out rotor | 5 | 17 | Micro-plate 2×2×96 hole | 4200rpm | 2267×g |
Cyto rotor | 6 | 18 | 12x2ml | 1500rpm | 890×g |
* All products can be customized, designed and produced according to customer requirements.
