| Quantity: | |
|---|---|
DT35C
KECHENG

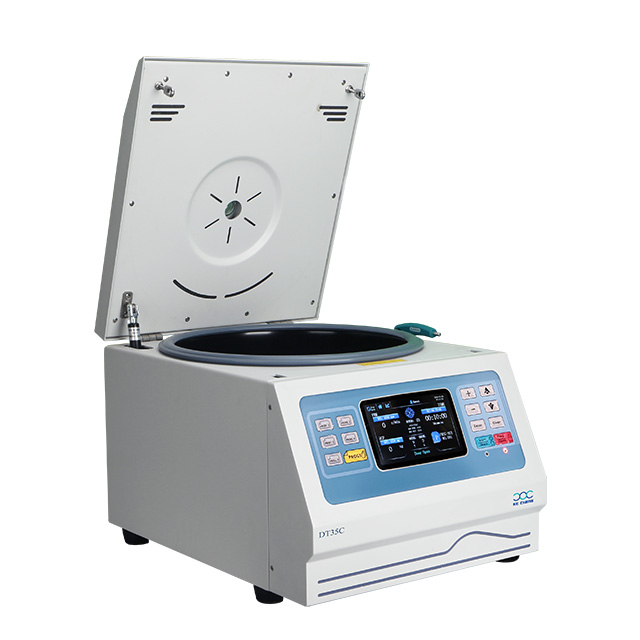

DT35C Low Speed Table Centrifuge
Product Features：
Intelligent control system
◆ Equipped with five groups of programs.
◆ Program group shortcut key, large storage space, can store 99 program groups, convenient to call at any time.
◆ Automatic electronic door lock.
◆ One key short-time centrifuge button.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gear acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ Special noise reduction system.
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ Equipped with rotor lid that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge lid with one press.
Technical Parameter：
Model | DT35C | ||
Max Speed | 5500rpm | Power | 550W |
Max RCF | 4919×g | Noise Level | ≤ 62dB（A） |
Max Capacity | 4×250ml | Size | 545×330×365 (mm) |
Timer | 1s～99h59min | Net Weight | 48kg |
Revolutions/min | ±10r/min | Automatic rotor identification | Yes |
Voltage | AC 220±22V 50Hz 10A or custom | / | / |
Rotor Parameter：
Rotor Capacity | Rotor NO. | NO. | Rotor Capacity | Max Capacity（r/min) | Max RCF(×g) |
Angle rotor（W) | 1 | 1 | 6×50ml(W) | 5500rpm | 3645×g |
2 | 2 | 24×15ml(W) | 4500rpm | 2200×g | |
Swing-out rotor body | 3 | 3 | Swing-out rotor body shall be used with as below pipe rack | ||
Pipe rack | 3 | 4 | 4×50ml | 4000rpm | 2951×g |
5 | 4×100ml | ||||
6 | 8×50ml | 4000rpm | 2951×g | ||
7 | 8×100ml | ||||
8 | 16×10/15ml Optional | ||||
9 | 24×10/15ml Optional | ||||
10 | 32×10/15ml Optional | ||||
11 | 48×2~7ml（Blood collection tube） | ||||
12 | 64×5ml（Blood collection tube） | ||||
Swing-out rotor | 4 | 13 | 4×250ml(Round bottom) | 4000rpm | 3040×g |
14 | 4×250ml (Round bottom)/ （with biosafety lid） | 4000rpm | 3040×g | ||
15 | 4×250ml(Oval cup) | 4000rpm | 3040×g | ||
Swing-out rotor body | 4 | 16 | Swing-out rotor body 4×250ml | ||
Pipe rack | 4 | 17 | 56×5ml（Blood collection） | 4000rpm | 3040×g |
18 | 16×50ml Sharp/round Bottom | 4000rpm | 3040×g | ||
19 | 36×15ml | 4000rpm | 3040×g | ||
Swing-out rotor | 5 | 20 | Micro-plate 2×2×96 hole | 4000rpm | 2057×g |
* All products can be customized, designed and produced according to customer requirements.
