Product Features：
Intelligent control system
◆ 7inches HD Large LCD touch screen display.
◆ The acceleration and deceleration mode can be set, and the speed RCF setting mode is provided. Users can arbitrarily set the speed up and down time and automatically calculate the RCF value.
◆ Can store 99 groups of program.
◆ Customized differential gradient centrifugation. In addition, the speed, RCF and temperature data can be displayed on the same screen in curve mode.
◆Linear drive, 13 levels of acceleration and deceleration
◆ User management function setting the password to lock the machine
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Special thermal insulation inside the machine ensure it running temperature more stable.
◆ Energy-efficient Eco friendly CFC free refrigerating system,temperature between -20℃~+40℃.
◆ Bloodbank station specialized 8*2000ml/6*2400ml bucket with bloodbag adapters
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
◆Optional: Fully automatic electric door.
◆Optional: Automatically rotor wind cover close
◆Optional: Management system, multiple centrifuges connected in real time to monitor operating status, data upload to client system, remote control communication protocol open to the outside world.
Technical Parameter：

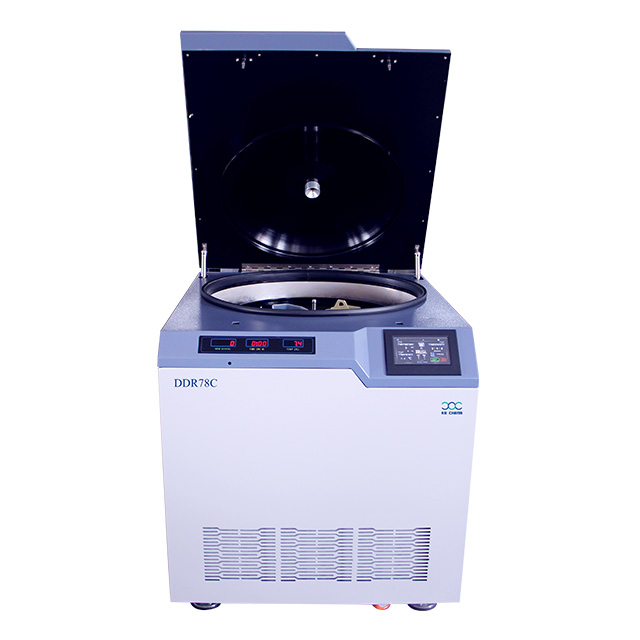

Model | DDR78C |
Max Speed | 9000rpm | Voltage | AC 220±22V 50Hz 50A |
Max RCF | 15526 ×g | Power | 7500W |
Max Capacity | 8×2000ml | Noise Level | ≤ 65dB（A） |
Timer | 1s～23h59min | Size | 890×1070×985(mm) |
Revolutions/min | ±10r/min | Net Weight | 608g |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor No. | Item No. | Capacity | Max speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 6×500ml | 9000rpm | 14400×g |
2 | 2 | 6×1000ml | 8000rpm | 15526×g |
Swing out rotor | 3 | 3 | 6×2×1000ml | 4200rpm | 4492×g |
4 | 4 | 6×2400ml | 4200rpm | 5600×g |
Blood bag liner | 5 | Bloodbag：cup liner(single）1 set | 4200rpm | 5600×g |
6 | Bloodbag：cup liner(double/middle with partition）1 set | 4200rpm | 5600×g |
5 | 7 | 8×2000ml | 4000rpm | 5706×g |
Blood bag liner | 8 | Bloodbag：cup liner(single）1 set | 4000rpm | 5706×g |
9 | Bloodbag：cup liner(double/middle With partition）1set | 4000rpm | 5706×g |
Note：Swing out rotro 6*2400ml / swing out rotor 8*2000ml(Pay attention to the industry's standard centrifuge bottles and liner cups） 1. One set of 2400ml centrifuge bottles is provided as standard for enterprise/scientific research customers 2. Standard configuration for medical blood station customers (liner cup: single-cup or double-cup): 1 set each. |
* All products can be customized, designed and produced according to customer requirements.
