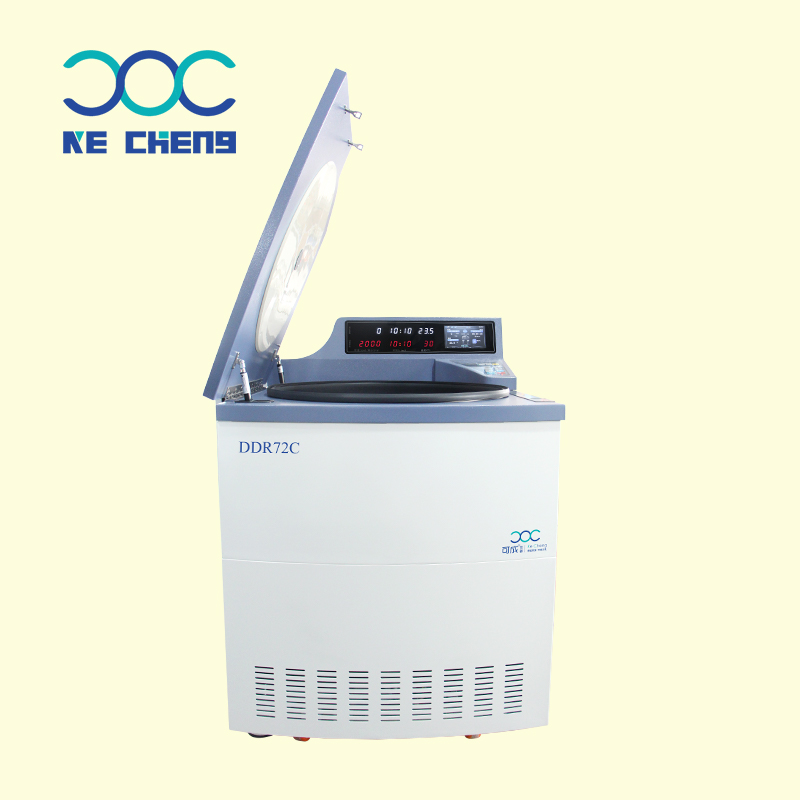

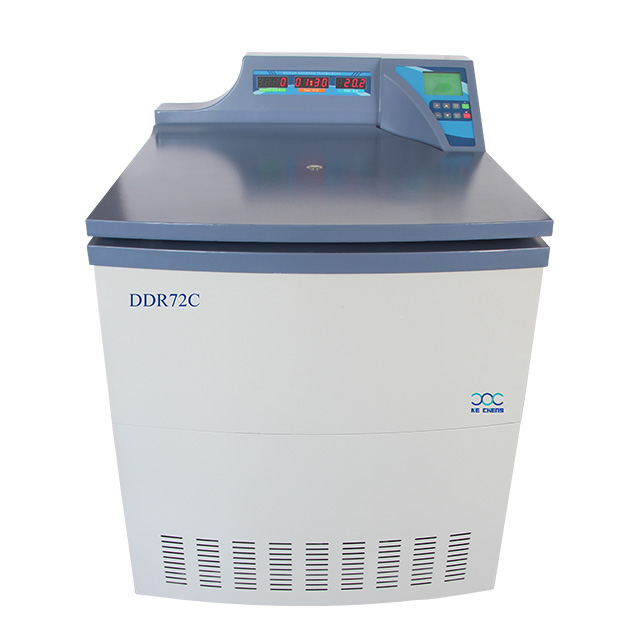

DDR72C Floor Large Capacity Low Speed Refrigerated Centrifuge
Product Features：
Intelligent control system
◆ Auto electric lid lock.
◆ Automatically calculate RCF,RPM and RCF switching freely.
◆ Up to 10 level acceleration/ deceleration with Linear drive.
◆ Can store 99 groups of program.
Excellent kernel performance
◆ Microcomputer control with LCD Display,driven by AC frequency conversion brush-less motor.
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Imported ECO-Friendly CFC free compressor unit,heated and cooling dual system control.
Careful and safe
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
◆ Equipped with self correcting balance swivel and error code.
Intimate detail design
◆ Equipped the intimate portable fan hood hanger;
◆ The machine with an operation SOP guide map, which makes it easier and more standard for laboratory workers.
◆ Equipped with rotor lid that can be quickly locked .
◆ Special noise reduction system .
◆ The side door is designed to facilitate closing and locking the centrifuge cover.
Technical Parameter：
Model | DDR72C | ||
Max Speed | 8000rpm | Voltage | AC 220±22V 50Hz 50A |
Max RCF | 12166×g | Power | 7500W |
Max Capacity | 6×2400ml | Noise Level | ≤ 65dB（A） |
Timer | 1s～23h59min | Size | 1180×970×860 (mm) |
Revolutions/min | ±10r/min | Net Weight | 590kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 6×500ml | 8000rpm | 11680×g |
2 | 2 | 6×1000ml | 7200rpm | 12166×g | |
Swing-out rotor | 3 | 3 | 6×2×1000ml | 4200rpm | 5000×g |
4 | 4 | 6×2400ml | 4200rpm | 5600×g |
* All products can be customized, designed and produced according to customer requirements.
