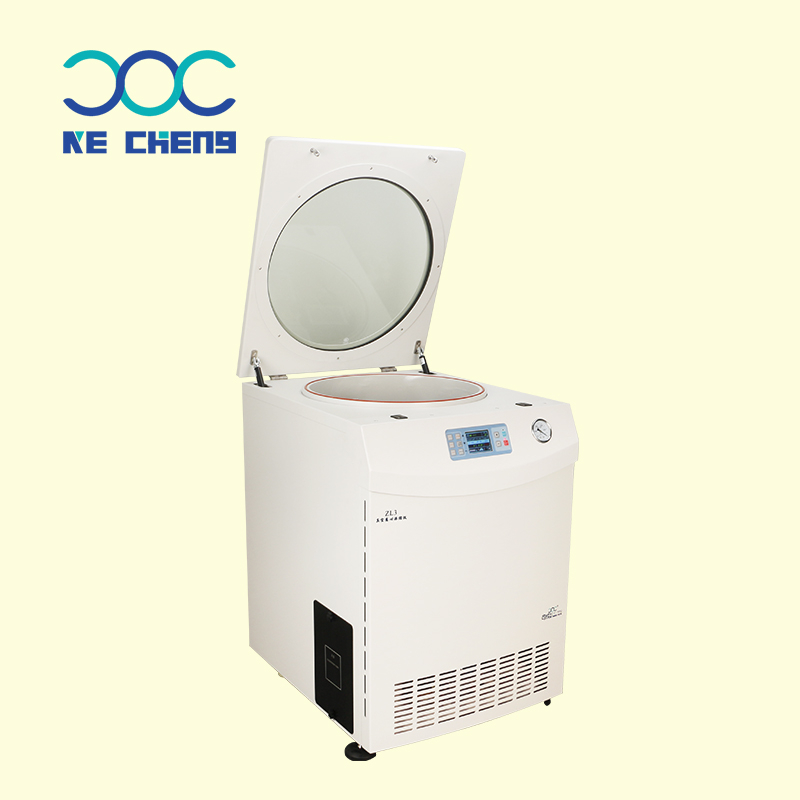

D3L Integrated Vacuum Concentrator
D3L Series vacuum centrifugal concentrator integrates centrifugal concentration, heating, automatic vacuum pumping and ultra-low temperature cold trap. It can effectively evaporate solvents and efficiently recover biological or analytical samples. It is widely used in life science, chemistry, pharmacy etc.
Product Features:
◎ HD LCD display, intelligent operation, one button centrifugal concentration, heating, automatic vacuum pumping, ultra-low temperature cold trap operation control, simple operation and can save laboratory space.
◎ The drying chamber is made of 304 stainless steel thickened material. There is a special coating inside the drying chamber for anti-corrosion, double-layer protection and stronger anti-corrosion.
◎ Integrated high-power variable-frequency motor with low noise,adjustable speed range of 100-4000rpm .
◎ Optional rotors and with transparent lid.
◎ It is equipped with special keys for ultra-low temperature cold trap temperature shortcut: multi segment temperature mode calls such as 60 ℃, 45 ℃, 30 ℃ and room temperature etc.
◎It is Equipped with built-in ultra-low temperature cold trap, it can significantly improve the efficiency of vacuum concentrator and speed up the process of concentrator.
◎It is equipped with integrated operation design of built-in vacuum pump to avoid operation errors and facilitate operation. It is also equipped with oil mist filter system.
◎It is equipped with a special solution and solvent collection bottle, which is placed at the bottom of the machine and protected by an independent space. It is convenient to remove and clean.
◎ The automatic defrosting function of ultra-low temperature cold trap ensures that the pipeline does not freeze, and the middle section is not required in the concentration process.
◎ Centrifugal imaging function (optional), observe the sample concentration without shutdown during operation.
Technical parameters::
Model | D3L | ||
Max Speed | 4000rpm | Power | 1500 W |
Max RCF | 2629×g | Noise | ≤ 65dB(A) |
Max Capacity | 4×250ml | Chamber Diameter | Φ450mm |
Timer | 1min~99h59min | Dimensions | 800×605×870(mm) |
Revolutions/min | ±10r/min | Packing Size | 860×865×900(mm) |
Temp Accuracy | Indoor temperature~60℃ | Net Weight | 180kg |
Voltage | AC 220±22V 50Hz 15A | Gross Weight | 190kg |
Rotor parameters:
Model | Rotor Name | Rotor NO. | Capacity | Max Speed (r/min) | Max RCF(×g) |
D3L | Angle rotor | 1 | Custom | 4000rpm | 2020×g |
2 | 62×1.5/2.0ml | 4000rpm | 2003×g | ||
3 | 6×50ml | 4000rpm | 2629×g | ||
4 | 12×10/15ml Optional | 4000rpm | 1788×g | ||
5 | 135×0.2ml | 4000rpm | 1348×g | ||
Swing-out rotor | 6 | 4×250ml | 1500rpm | 490×g | |
7 | Micro-plate 2×2×96 hole | 1500rpm | 323×g | ||
8 | Micro-plate 4×2×96 hole | 1500rpm | 440×g |
*All products can be according the clients needs to design custom.
