4-30R
KECHENG

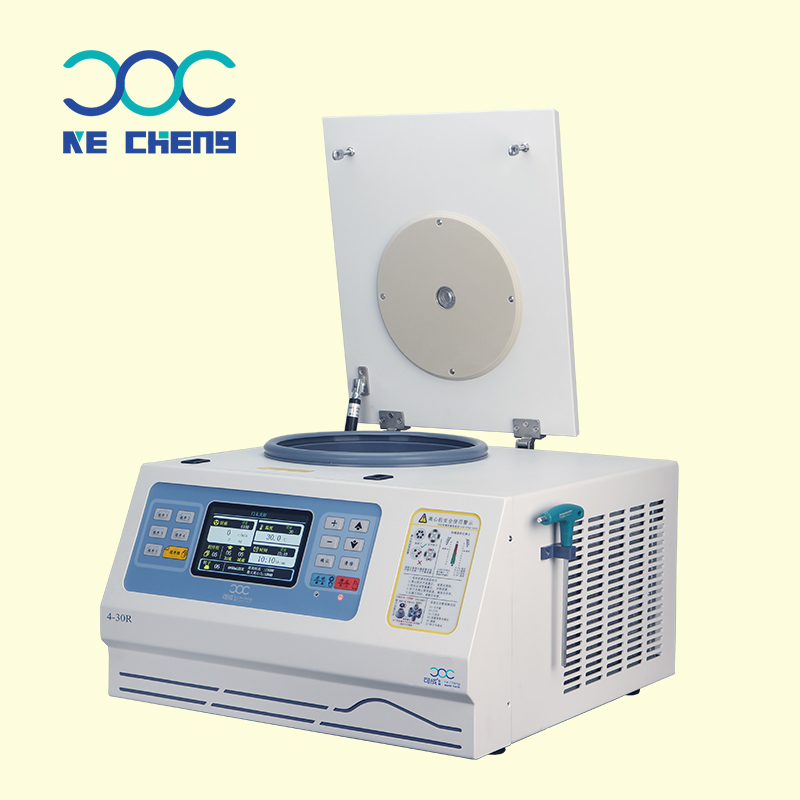

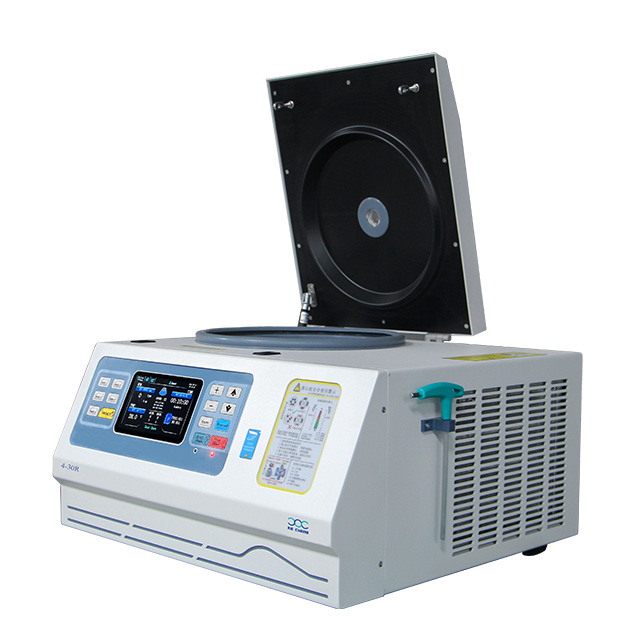

4-30R High Speed Table Refrigerated Centrifuge
Technical Parameter：
Intelligent control system
◆ Automatically calculate RCF,PRM and RCF switching freely .
◆ Can store 99 groups of program and with shortcut key.
◆ Up to 10 level acceleration/ deceleration with Linear drive.
◆ With five groups of user-defined preset programs that can be called by one key.
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
Excellent kernel performance
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Imported energy-efficient ECO friendly refrigeration system .
◆ Microcomputer control with HD large LCD display,driven by AC frequency conversion brush-less motor.
Careful and safe
◆ Full steel inner cavity protective cover with electronic lock.
◆ Automatic identification rotors and speed limit control.
◆ Over speed,over heat,unbalance protections and ensure safe operation.
Intimate detail design
◆ With accompanying professional tools.
◆ The machine has an operation SOP guide map, which is more convenient for laboratory workers to use .
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ Equipped with rotor lid that can be quickly locked.
◆ Ergonomic, low opening height, close the centrifuge lid with one time press.
◆ Special noise reduction system .
Technical Parameter：
Model | 4-30R | ||
Max Speed | 30000rpm | Voltage | AC 220±22V 50Hz 15A or custom |
Max RCF | 62400×g | Power | 1500W |
Max Capacity | 12×5ml | Noise Level | ≤ 62dB（A） |
Timer | 1s～99h59min | Size | 730×660×400mm |
Revolutions/min | ±10r/min | Net Weight | 123kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 4×1.5/2.0ml(titanium alloy) | 30000rpm | 62400×g |
2 | 2 | 12×1.5/2.0ml(titanium alloy) | 25000rpm | 44021×g | |
3 | 3 | 12×5ml | 20000rpm | 27100×g | |
4 | 4 | 24×1.5/2.0ml | 23000rpm | 50803×g | |
5 | 5 | 6×50ml(conical/round bottom) | 15000rpm | 25356×g |
* All products can be customized, designed and produced according to customer requirements.
4-30R High Speed Table Refrigerated Centrifuge
Technical Parameter：
Intelligent control system
◆ Automatically calculate RCF,PRM and RCF switching freely .
◆ Can store 99 groups of program and with shortcut key.
◆ Up to 10 level acceleration/ deceleration with Linear drive.
◆ With five groups of user-defined preset programs that can be called by one key.
◆ Long press the start/instantaneous key to realize instantaneous centrifugation.
Excellent kernel performance
◆ Two modes can be set: start timing/arrival revolution timing.
◆ Imported energy-efficient ECO friendly refrigeration system .
◆ Microcomputer control with HD large LCD display,driven by AC frequency conversion brush-less motor.
Careful and safe
◆ Full steel inner cavity protective cover with electronic lock.
◆ Automatic identification rotors and speed limit control.
◆ Over speed,over heat,unbalance protections and ensure safe operation.
Intimate detail design
◆ With accompanying professional tools.
◆ The machine has an operation SOP guide map, which is more convenient for laboratory workers to use .
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ Equipped with rotor lid that can be quickly locked.
◆ Ergonomic, low opening height, close the centrifuge lid with one time press.
◆ Special noise reduction system .
Technical Parameter：
Model | 4-30R | ||
Max Speed | 30000rpm | Voltage | AC 220±22V 50Hz 15A or custom |
Max RCF | 62400×g | Power | 1500W |
Max Capacity | 12×5ml | Noise Level | ≤ 62dB（A） |
Timer | 1s～99h59min | Size | 730×660×400mm |
Revolutions/min | ±10r/min | Net Weight | 123kg |
Temp Range | -20℃～40℃ | Rotor automatic recognition | Yes |
Temp Accuracy | ±1.0℃ | / | / |
Rotor parameters：
Rotor Name | Rotor NO. | NO. | Capacity | Max Speed（r/min) | Max RCF(×g) |
Angle rotor | 1 | 1 | 4×1.5/2.0ml(titanium alloy) | 30000rpm | 62400×g |
2 | 2 | 12×1.5/2.0ml(titanium alloy) | 25000rpm | 44021×g | |
3 | 3 | 12×5ml | 20000rpm | 27100×g | |
4 | 4 | 24×1.5/2.0ml | 23000rpm | 50803×g | |
5 | 5 | 6×50ml(conical/round bottom) | 15000rpm | 25356×g |
* All products can be customized, designed and produced according to customer requirements.
