2-6C
可成

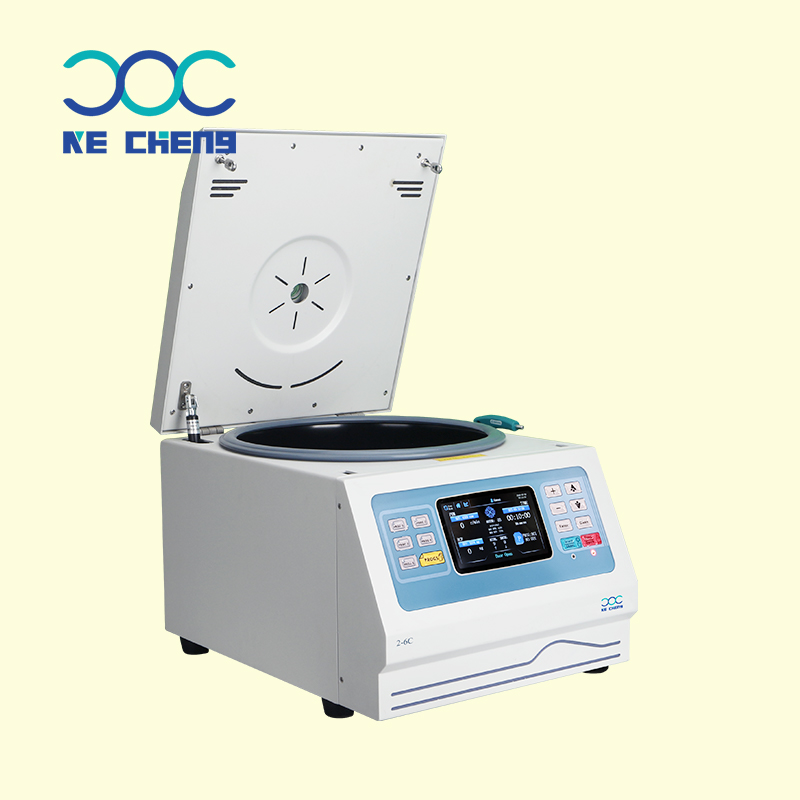

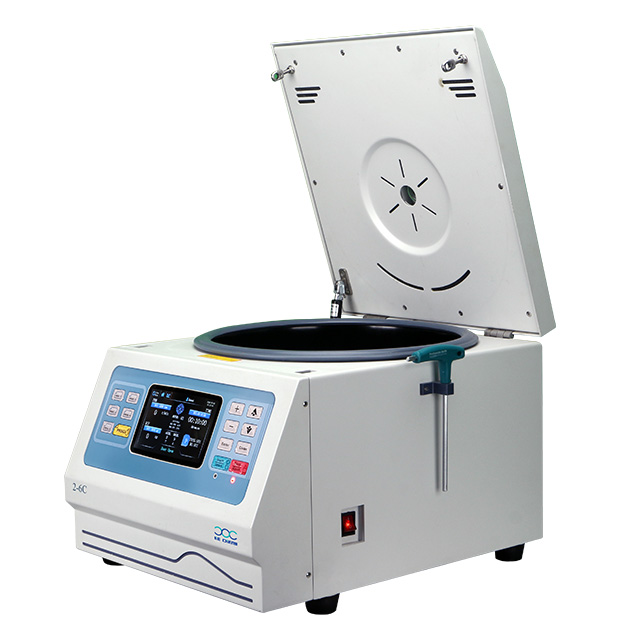

2-6C Low Speed Table Centrifuge
Product Features：
Intelligent control system
◆ Equipped with five groups of user-defined preset programs.
◆ Program group shortcut key, large storage space, can store 99 program groups.
◆ Automatic electronic door lock.
◆ One key short-time centrifuge button.
Excellent kernel performance
◆ HD large LCD display and the parameters can be revised during operation without shutdown.
◆ Microcomputer control ,AC frequency conversion brush-less motor with fast speed and stable operation.
◆ 10 gear acceleration /deceleration with linear drive.
◆ Two modes can be set: start timing/arrival revolution timing.
Careful and safe care
◆ With rotor automatic identification system .
◆ Over speed,over heat,unbalance protections with auto lid lock.
◆ Steel Structure,centrifuge chamber made of stainless steel with Environmentally friendly anti-corrosion coating treatment.
Intimate detail design
◆ An intimate tool rack is provided for accompanying tools to guard the instrument at all times.
◆ The front of the fuselage is designed with an operation SOP guide map, which makes it easier and more standard for laboratory personnel to use the instrument.
◆ It is equipped with a rotor cover that can be quickly locked for easy use.
◆ Ergonomic, low opening height, close the centrifuge cover with one press.
◆ Special noise reduction system.
◆ An intimate for experimenters.
Technical Parameter：
Model | 2-6C | ||
Max Speed | 6000rpm | Power | 300W |
Max RCF | 4338×g | Noise Level | ≤ 62dB（A） |
Max Capacity | 4×100ml | Dimensions (L x W x H) | 500×360×330 (mm) |
Timer | 1s～99h59min | Net Weight | 31kg |
Revolutions/min | ±10r/min | Automatic rotor identification | Yes |
Voltage | AC 220±22V 50/60Hz 10A | / | / |
Rotor Parameter：
Rotor Capacity | Rotor NO. | NO. | Rotor Capacity | Max Capacity（r/min) | Max RCF(×g) |
Angle rotor（W) | 1 | 1 | 12×15ml | 6000rpm | 4226×g |
2 | 2 | 6×50ml | 6000rpm | 4338×g | |
Swing-out rotor body | 3 | 3 | Swing-out rotor body shall be used with as below pipe rack | ||
Pipe rack | 3 | 4 | 4×50ml | 4200rpm | 2760×g |
5 | 4×100ml | 4200rpm | 2760×g | ||
6 | 16×15ml | 4200rpm | 2760×g | ||
7 | 24×10ml | 4200rpm | 2760×g | ||
* All products can be customized, designed and produced according to customer requirements.
