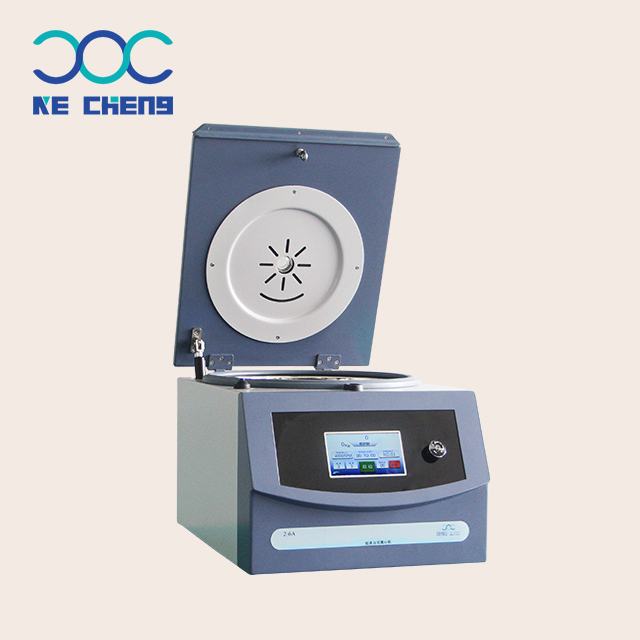

2-6A Table Low Speed Centrifuge

Availability:
Quantity:
  • 2-6A

Key Features:

1、Electronic door lock, all steel door cover protection, superior to peer standards.

2、External heat dissipation design, efficient heat dissipation of the internal circuit of the main engine, the temperature rise in the cavity is better than the industry standard, to ensure the safety of the sample.

3、High quality hydraulic rod, imported damper seal, hydraulic damper does not decay for ten years.

4、Food-grade integrated silica gel sealing ring, life-long service, more sealable.

5、The automatic identification system of magnetic rotor automatically matches the corresponding rotor program, prevents the rotor from overspeeding and ensures centrifugal safety.

6、Humanized design is easy to operate, parameter setting is directly digital input, accurate to individual intelligent status prompt.

7、It has many protective functions, such as door cover, overspeed, over-temperature, over-current, over-pressure, over-heat, etc. The solution is more stable with simultaneous voice and text display.

8、Unique noise reduction system, running more quiet.

9、Self-diagnostic function voice text prompts and displays solutions, more stable and reliable with electronic   instructions, never lost, easy to use.

10、The rotational speed, centrifugal force and temperature curves are displayed on the same screen to meet various centrifugal requirements, and the change relationship is clear and visible.

11、Super large storage space, can store up to 99 program groups, 99 usage records and fault records can be traced.

12、Fifteen speed-up and speed-down curves can be selected and free parking time can be set.

13、Two timing modes are optional, start timing and arrival speed timing.

14、Password lock function, users can set password to lock the host or parameters to prevent misoperation.

15、There are many languages in the startup interface, which can be switched between Chinese and English.

Technical Parameter:

Model

2-6A

Max Speed

6000rpm

Power

500W

Max RCF

4430 Xg

Noise Level

<60dB (A)

Max Capacity

4 X 100ml

Chamber Diameter

Φ320mm

Timing range

Imin~99h59min59s

Machine Dimensions (L x W x H)

490 X 360 X 320mm

Speed Accuracy

±10r/min

Packing Dimensions (L x W x H)

590 X 460 X 400mm

Power Supply

AC 220 ± 22V 50Hz 15A

Net weight

27kg

Rotor Parameter

Rotor Type

No.

Capacity

RPM (r/min)

RCF(xg)

Angle Rotor

1

4x50ml

6000rpm

4430xg

6x50ml

6000rpm

4430xg

2

12x10ml

5000rpm

4020xg

Swing Out Rotor

3

6x50ml

4200rpm

3100xg

4

16x15ml

4200rpm

3100xg

5

24x10ml

4000r pm

2810xg

6

4x100ml

4200rpm

3100xg
